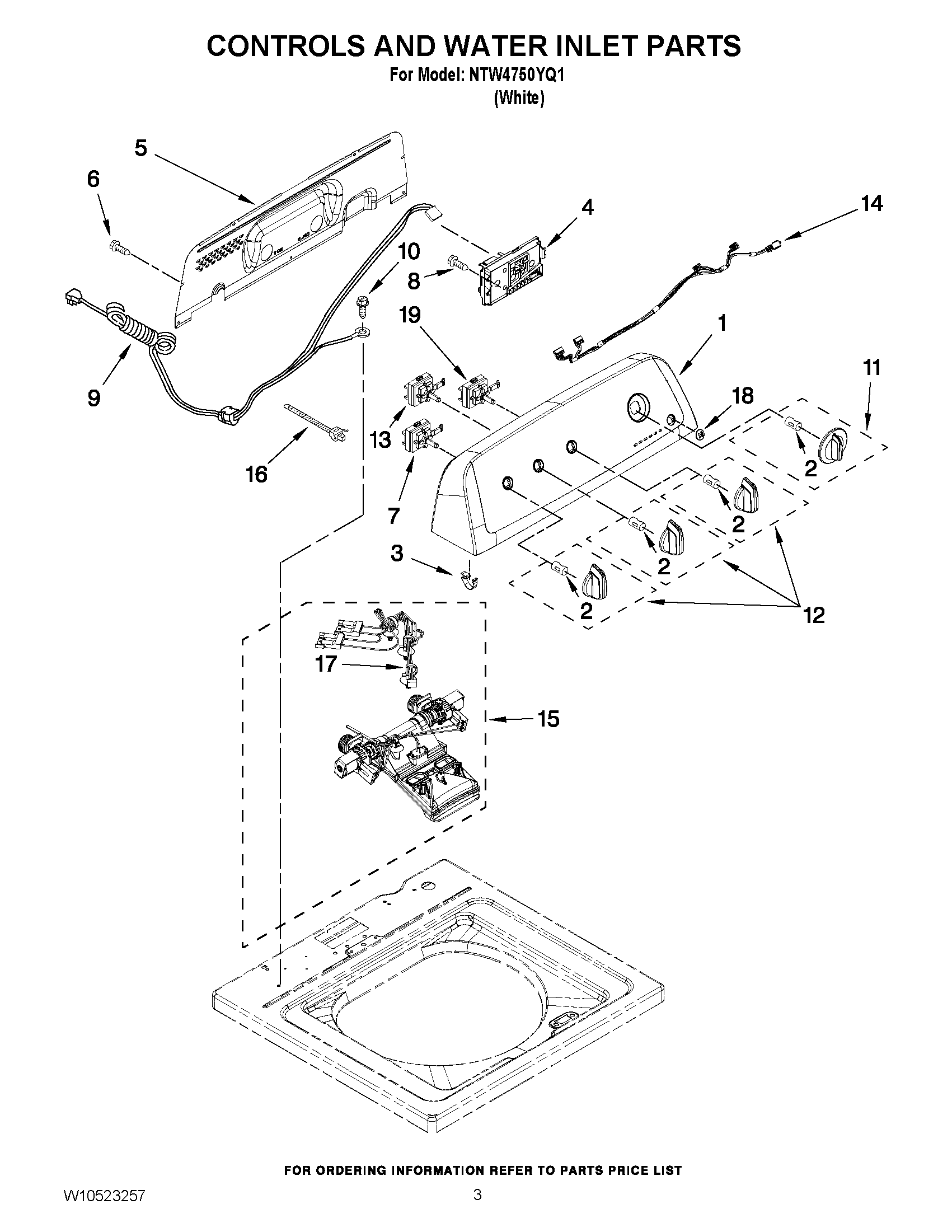

NTW4750YQ1 02 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
1	MAY W10420446
2	CLIP, SPRING
3	MAY 8312709
4	MAY W10484686
5	MAY W10409320
6	MAY 1157158
7	MAY W10414411
8	Screw
9	MAY W10455732
10	Screw, 10-32 x 5/8
11	ASSEMBLY, TIMER KNOB (WHITE)
12	MAY W10453947
13	MAY W10414398
14	MAY W10491753
15	MAY W10423125
16	TIE, CABLE
17	MAY W10423127
18	MAY W10251309
19	SWITCH, ROTARY ENCODER (2 POSITION)
