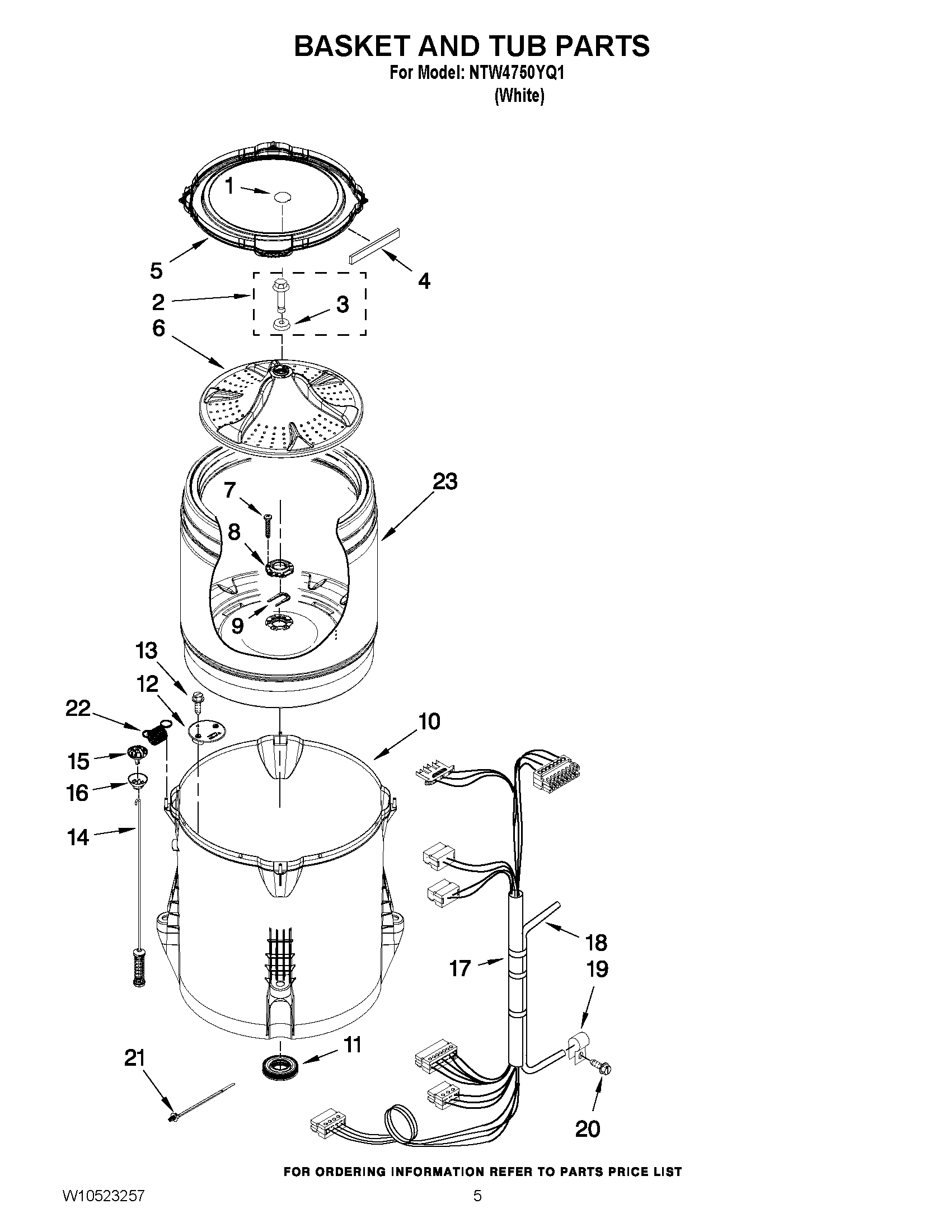

NTW4750YQ1 03 – BASKET AND TUB PARTS

Products

PositionProduct
1MAY W10305259
2SCREW & WASHER
3MAY 3949550
4MAY W10205824
5RING, TUB (INCLUDES ITEM 4)
6IMPELLER
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10TUB
11MAY W10006371
12MAY W10215093
13Screw
14DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES ITEMS 15 & 16)
15BALL (SET OF 4 – INCLUDES SUSPENSION BUSHINGS)
16BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
17HARNESS, LOWER (INCLUDES ITEMS 18 & 21)
18MAY W10429300
19CLAMP, CABLE
20SCREW
21MAY W10298887
22MAY W10348658
23BASKET ASSEMBLY (INCLUDES ITEMS 7, 8 & 9)
