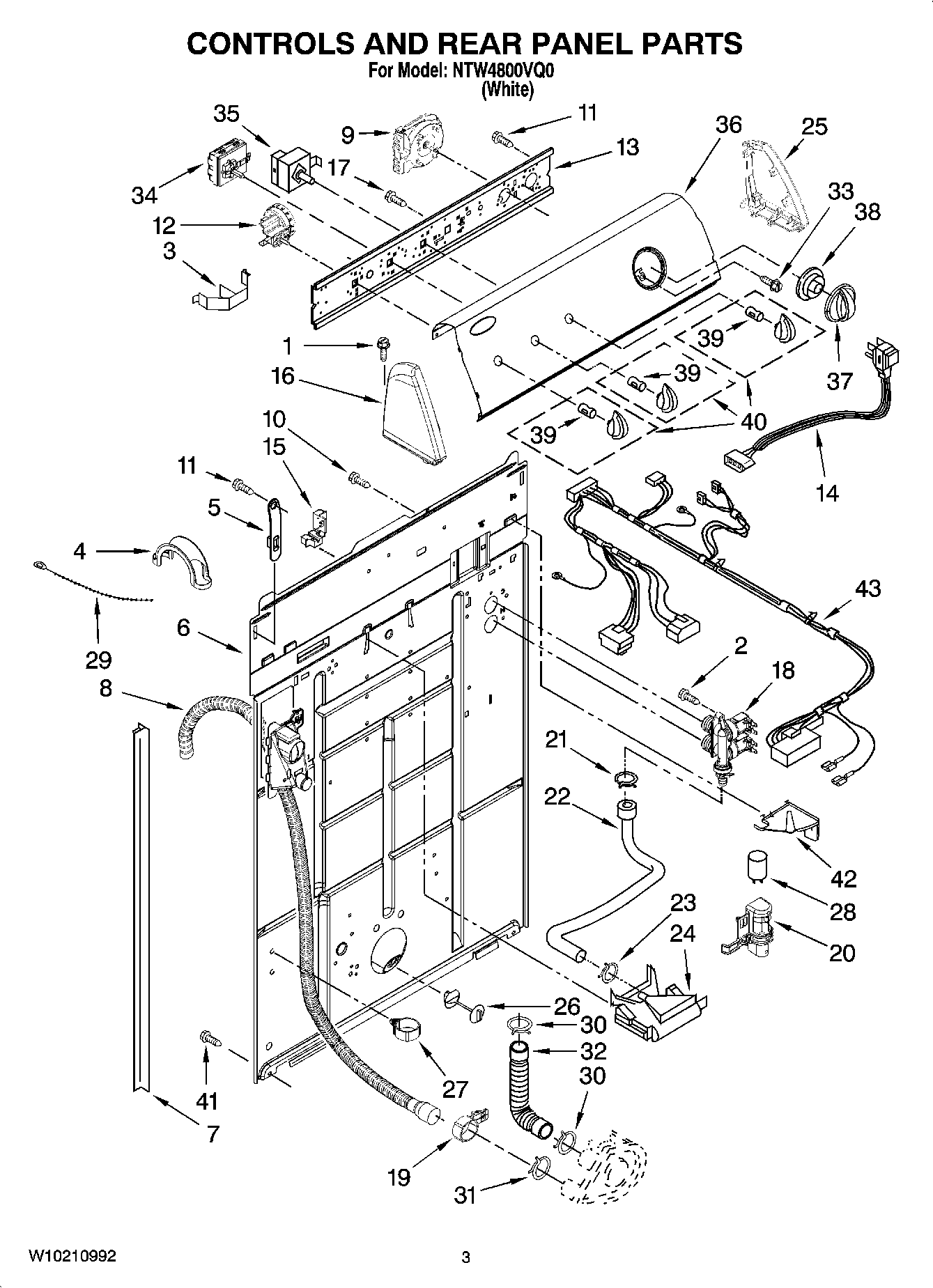

NTW4800VQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Screw, Console
2	SCREW
3	Clip, Harness & Pressure Switch
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10138068
9	MAY W10175553
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577843
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	SCREW
18	Valve, Water Inlet W/Thermistor
19	MAY 8541668
20	MAY 8318046
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	MAY 8271359
26	MAY 8519200
27	MAY 8541667
28	MAY 8572717
29	MAY 3347868
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	SCREW
34	MAY W10184148
35	MAY 3949187
36	MAY W10192128
37	MAY W10196505
38	MAY W10196506
39	CLIP, SPRING
40	MAY W10196503
41	Screw, Mixing Valve Mounting
42	MAY 8539874
43	MAY W10189201
