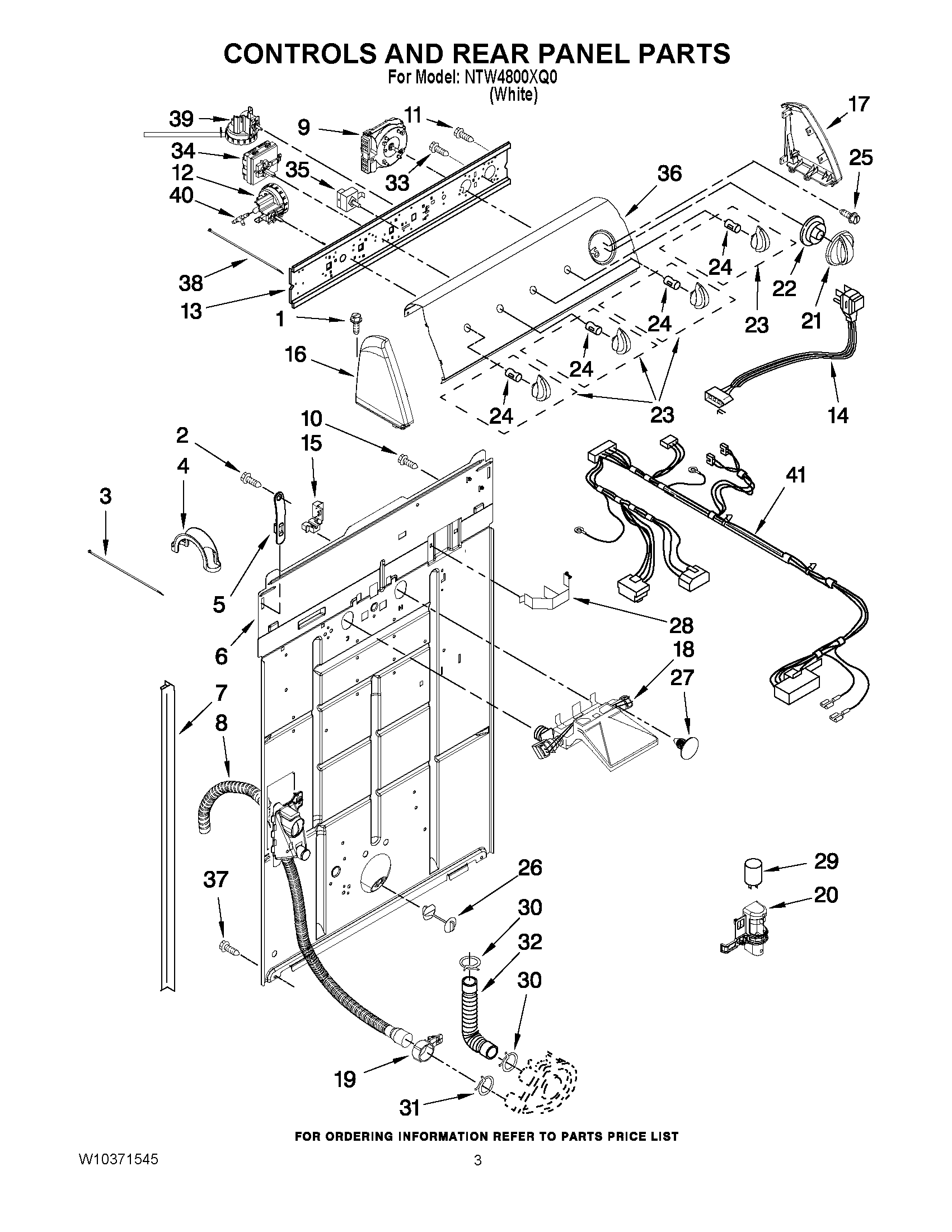

NTW4800XQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	Screw, Console
2	SCREW
3	TIE, CABLE
4	U-Bend
5	Strap, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY W10175553
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY W10379548
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	MAY W10144820
19	MAY 8541668
20	MAY 8318046
21	MAY W10196505
22	MAY W10196506
23	MAY W10196503
24	CLIP, SPRING
25	SCREW
26	MAY 8519200
27	RETAINER, PUSH-IN
28	Clip, Harness & Pressure Switch
29	MAY 8572717
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	SCREW
34	MAY W10184148
35	MAY 3949187
36	MAY W10339557
37	Screw, Mixing Valve Mounting
38	TIE WIRE
39	MAY W10379550
40	FITTING, PRESSURE HOSE TEE
41	MAY W10362917
