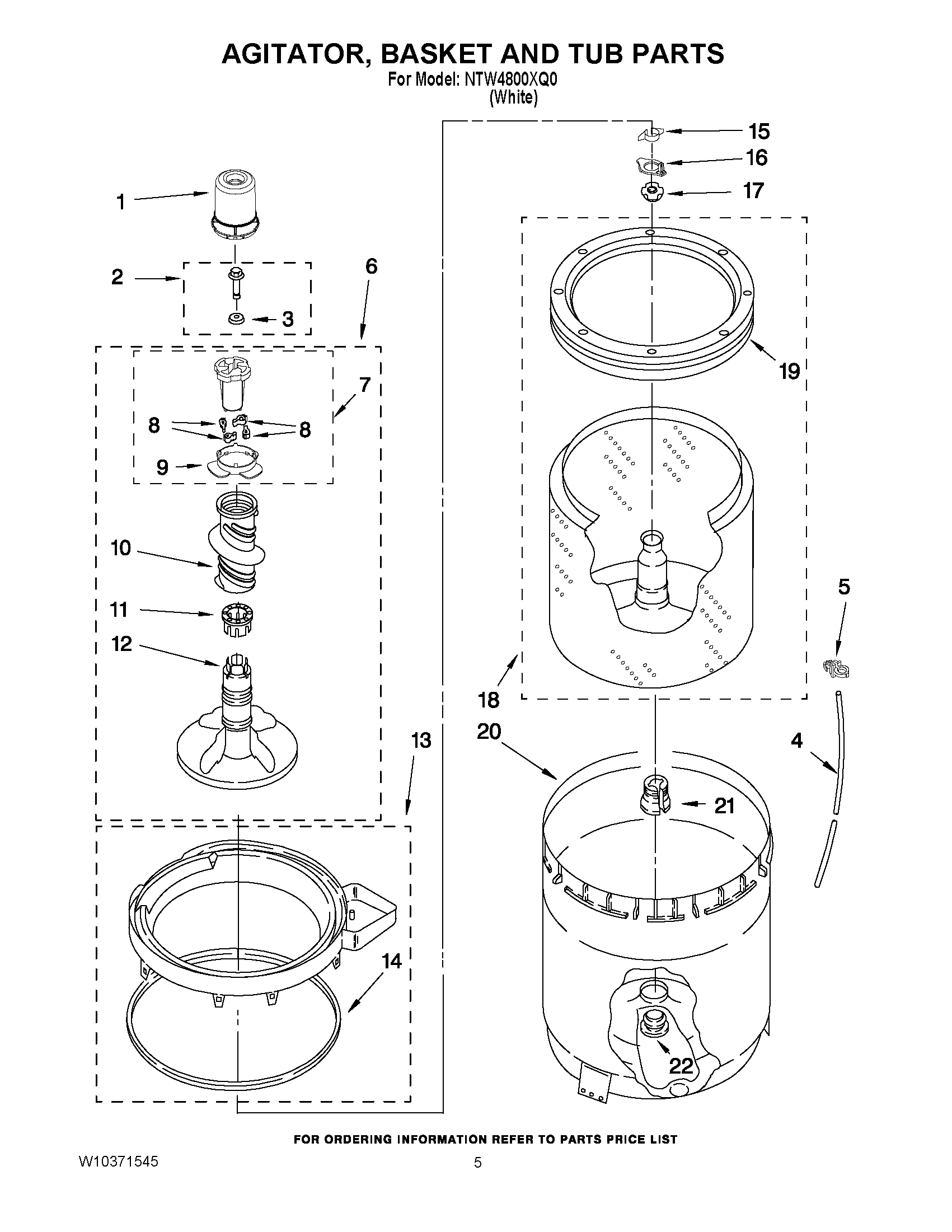

NTW4800XQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8533251
2	Screw & Washer
3	MAY 3949550
4	MAY W10297437
5	Clip, Harness (1)
6	AGITATOR, COMPLETE
7	Cam, Driven
8	Dog, Agitator (4)
9	BEARING, CAM
10	MAY 3360824
11	SPACER, THRUST
12	MAY 389386
13	Tub Ring
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	MAY 21366
18	MAY 8526016
19	Ring, Balance
20	MAY 63849
21	Block, Drive
22	MAY 383727
