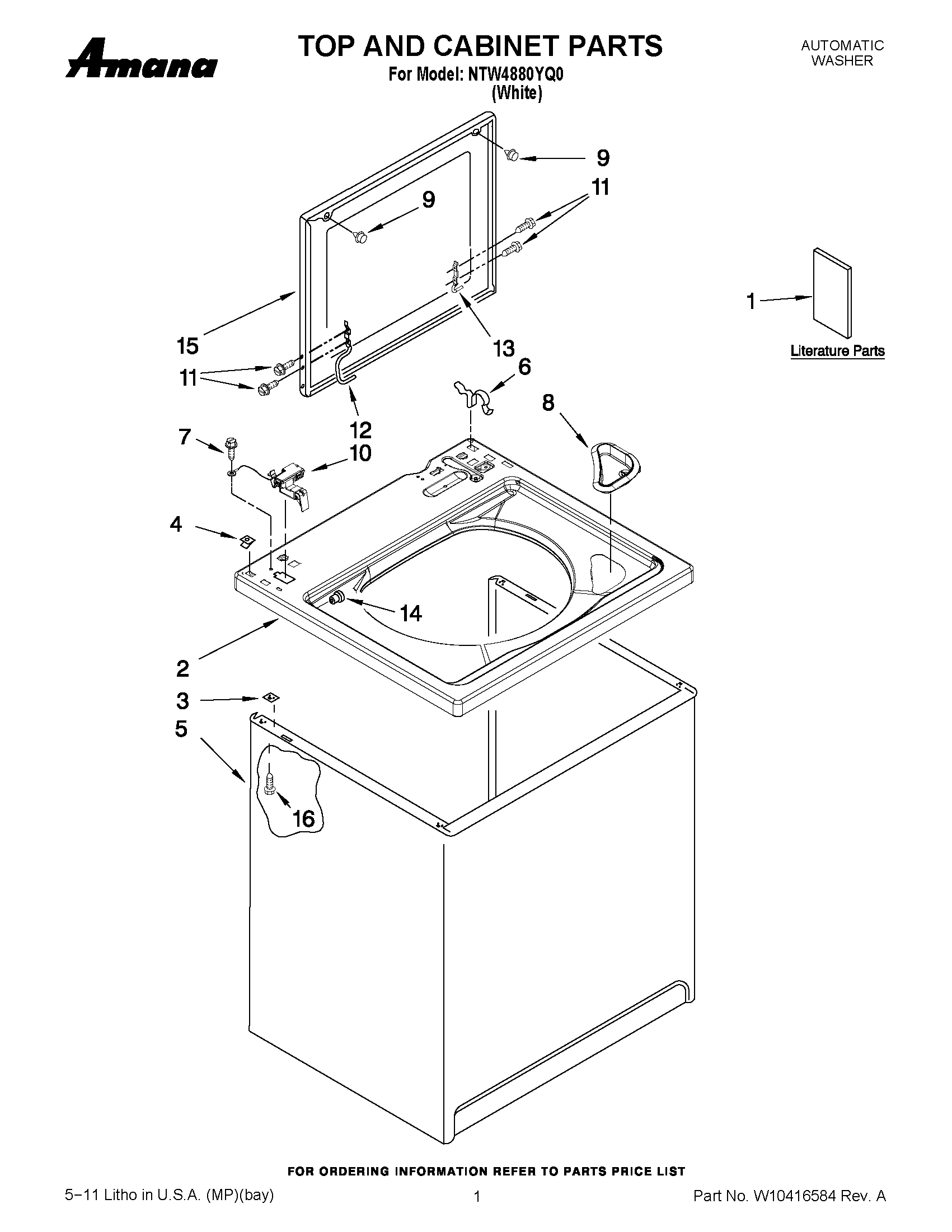

NTW4880YQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1INSTALLATION INSTRUCTIONS (SPANISH)
1MAY W10347262
1MAY W10362942
1MAY W10196573
1MAY W10368957
2MAY W10194570
3MAY 62750
4Nut, Push-In
5Cabinet
6MAY 62780
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8MAY W10192089
9MAY 9724509
10MAY 8318084
11SCREW, LID HINGE
12MAY W10225136
13HINGE, LID
14MAY 8319539
15MAY W10171313
16SCREW
