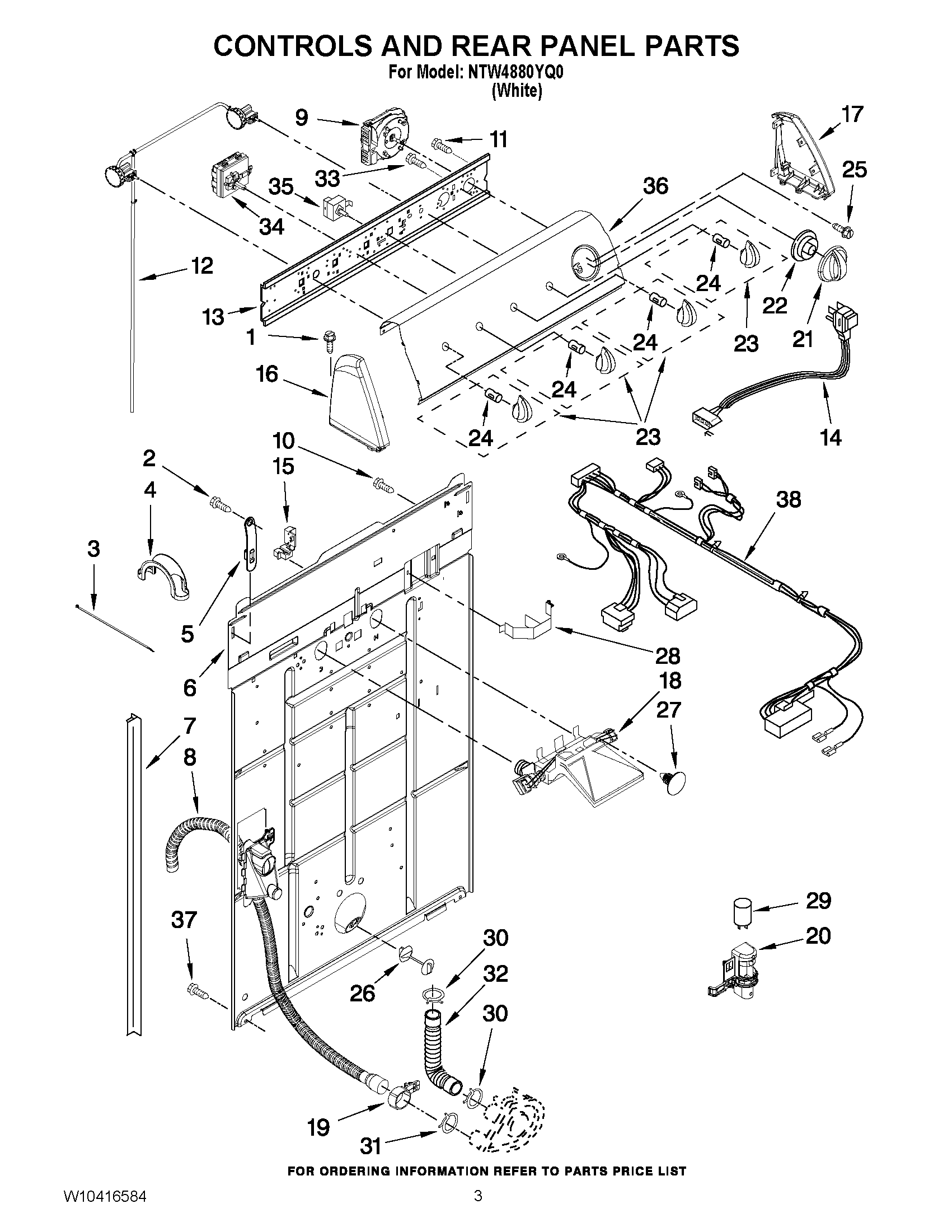

NTW4880YQ0 02 – CONTROLS AND REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Screw, Console |
| 2 | SCREW |
| 3 | TIE, CABLE |
| 4 | U-Bend |
| 5 | Strap, Console |
| 6 | MAY W10194450 |
| 7 | MAY 62747 |
| 8 | MAY W10189267 |
| 9 | MAY W10175553 |
| 10 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 11 | SCREW,8-18 X 3/8 |
| 12 | MAY W10403280 |
| 13 | MAY 3948608 |
| 14 | Cord, Power |
| 15 | MAY 3952821 |
| 16 | MAY 8271365 |
| 17 | MAY 8271359 |
| 18 | MAY W10144820 |
| 19 | MAY 8541668 |
| 20 | MAY 8318046 |
| 21 | MAY W10196505 |
| 22 | MAY W10196506 |
| 23 | MAY W10196503 |
| 24 | CLIP, SPRING |
| 25 | SCREW |
| 26 | MAY 8519200 |
| 27 | RETAINER, PUSH-IN |
| 28 | Clip, Harness & Pressure Switch |
| 29 | MAY 8572717 |
| 30 | Clamp, Hose (2) |
| 31 | MAY 8317496 |
| 32 | Hose & Clamp Assembly |
| 33 | SCREW |
| 34 | MAY W10184148 |
| 35 | MAY 3949187 |
| 36 | MAY W10339557 |
| 37 | Screw, Mixing Valve Mounting |
| 38 | MAY W10362917 |
