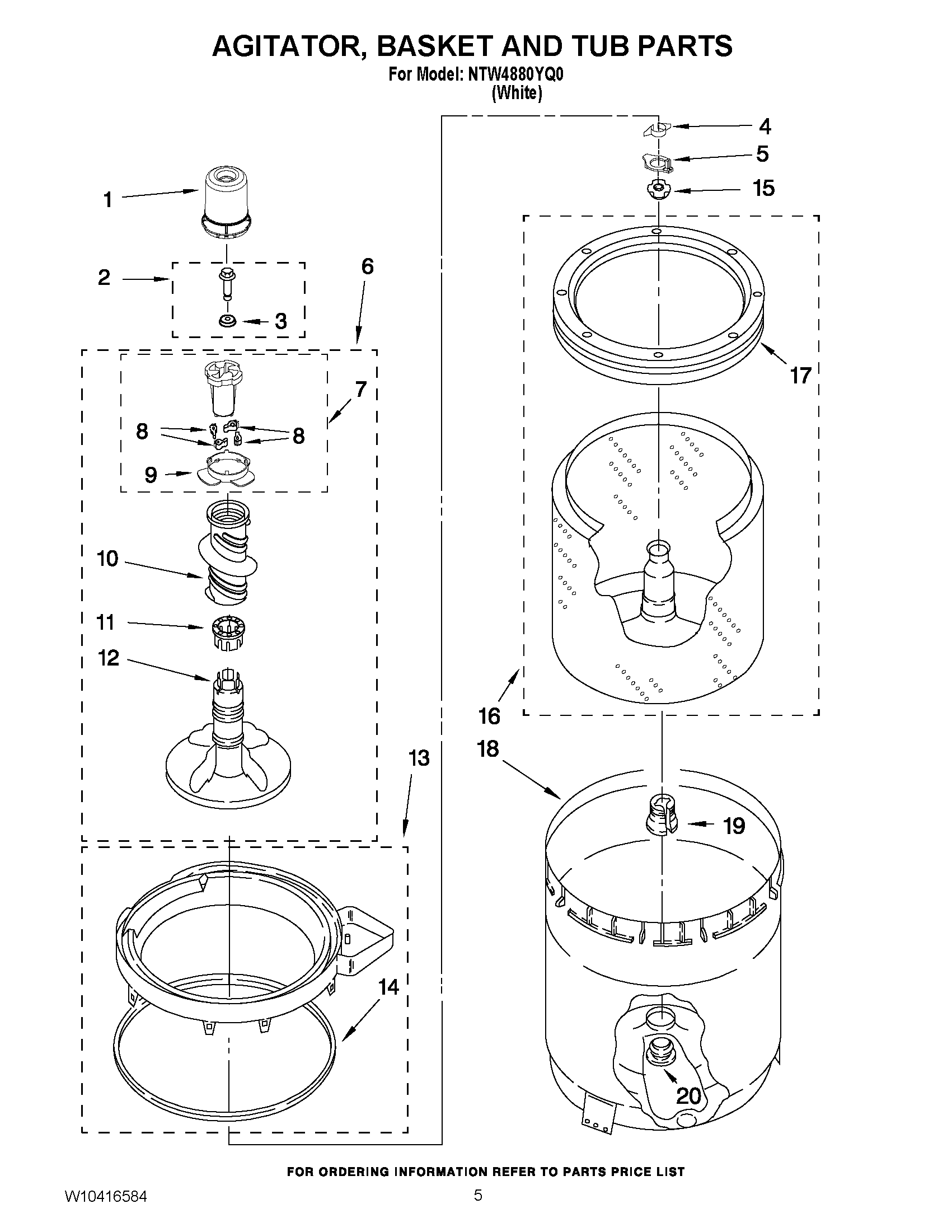

NTW4880YQ0 03 – AGITATOR, BASKET AND TUB PARTS

NTW4880YQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW4880YQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8533251
2	Screw & Washer
3	MAY 3949550
4	MAY 3354845
5	MAY 8543666
6	AGITATOR, COMPLETE
7	Cam, Driven
8	Dog, Agitator (4)
9	BEARING, CAM
10	MAY 3360824
11	SPACER, THRUST
12	MAY 389386
13	Tub Ring
14	MAY 3976308
15	MAY W10116602
16	BASKET
17	MAY W10006326
18	MAY 63849
19	Block, Drive
20	MAY 383727
