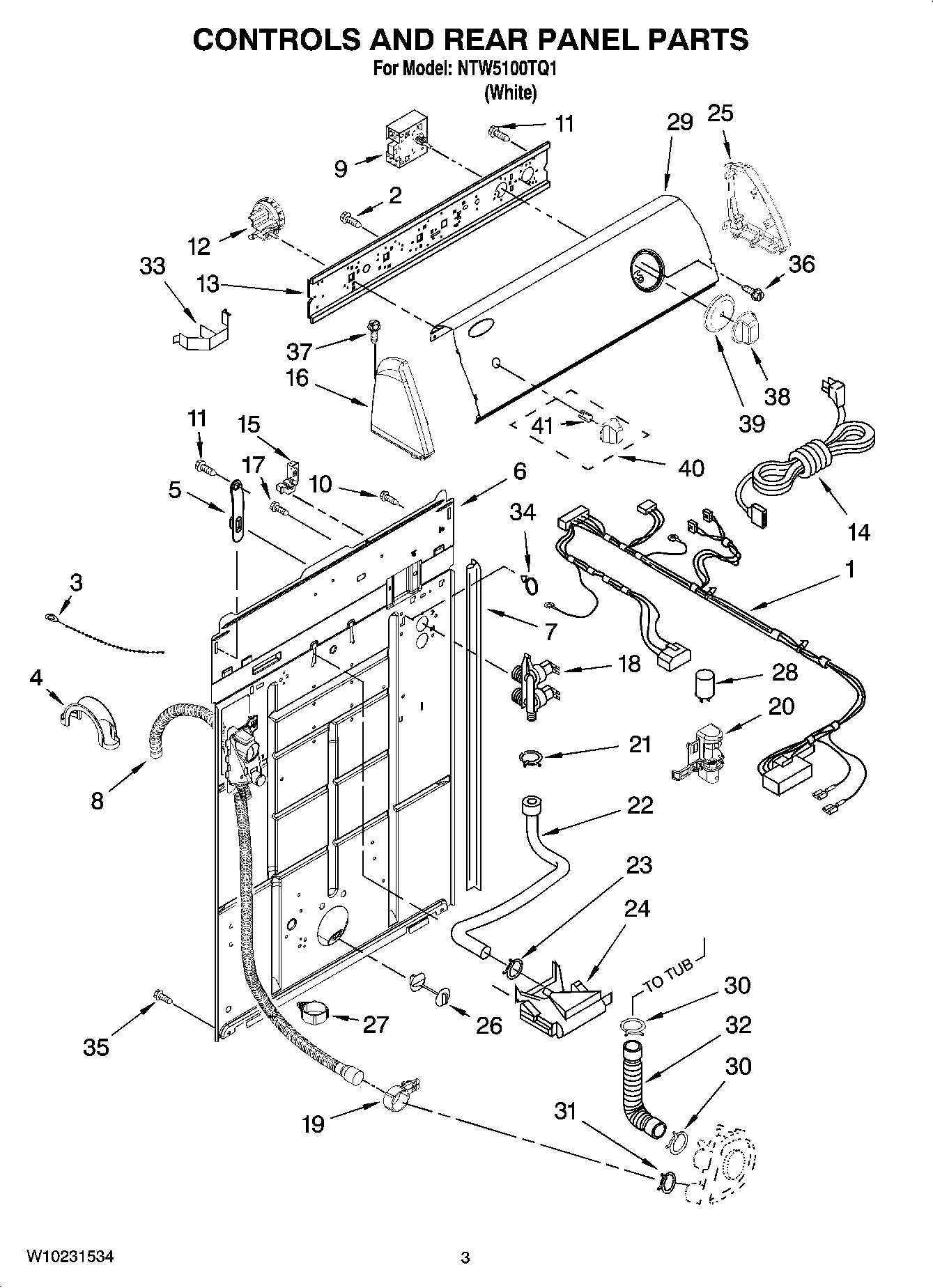

NTW5100TQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10071410
2	SCREW
3	MAY 3347868
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10138068
9	MAY 8546681
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577845
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	SCREW
18	MAY W10113122
19	MAY 8541668
20	MAY 8318046
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	MAY 3347034
25	MAY 8271359
26	MAY 8519200
27	MAY 8541667
28	MAY 8572717
29	MAY W10182637
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	MAY 8559320
35	Screw, Mixing Valve Mounting
36	SCREW
37	Screw, Console
38	MAY W10110045
39	MAY W10110046
40	Knob, Control (2) (White)
41	CLIP, SPRING
