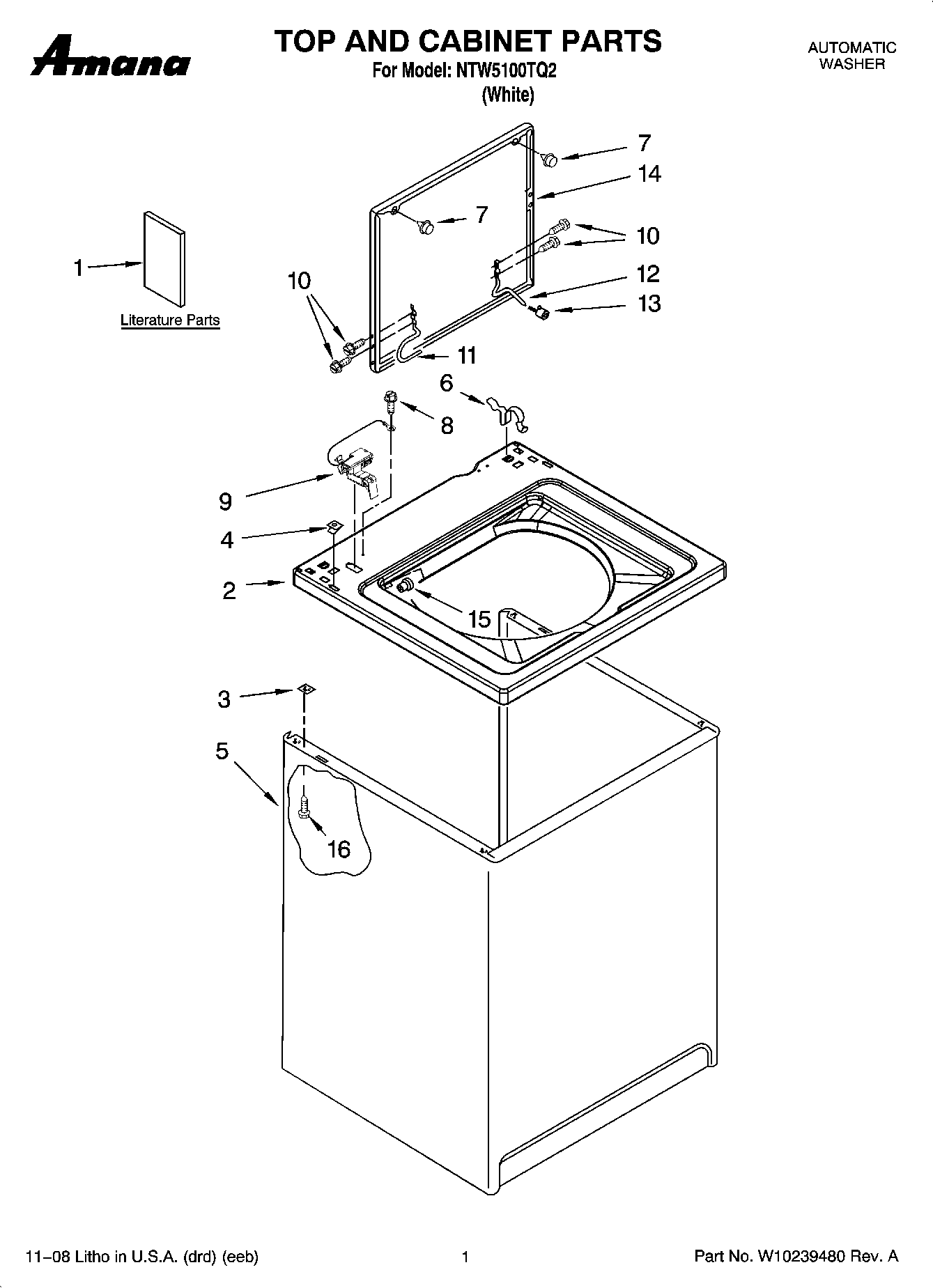

NTW5100TQ2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10192188
1	MAY W10201449
1	MAY W10192186
1	MAY W10200662
1	Installation Instructions (English)
1	MAY W10192181
1	MAY W10192187
1	MAY W10192182
2	TOP
3	MAY 62750
4	Nut, Push-In
5	Cabinet
6	MAY 62780
7	MAY 9724509
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	MAY 8318084
10	Screw And Washer
11	MAY 8318088
12	HINGE, LID (RIGHT HAND)
13	MAY 19119
14	MAY 8541774
15	Hinge, Bearing (2)
16	SCREW
