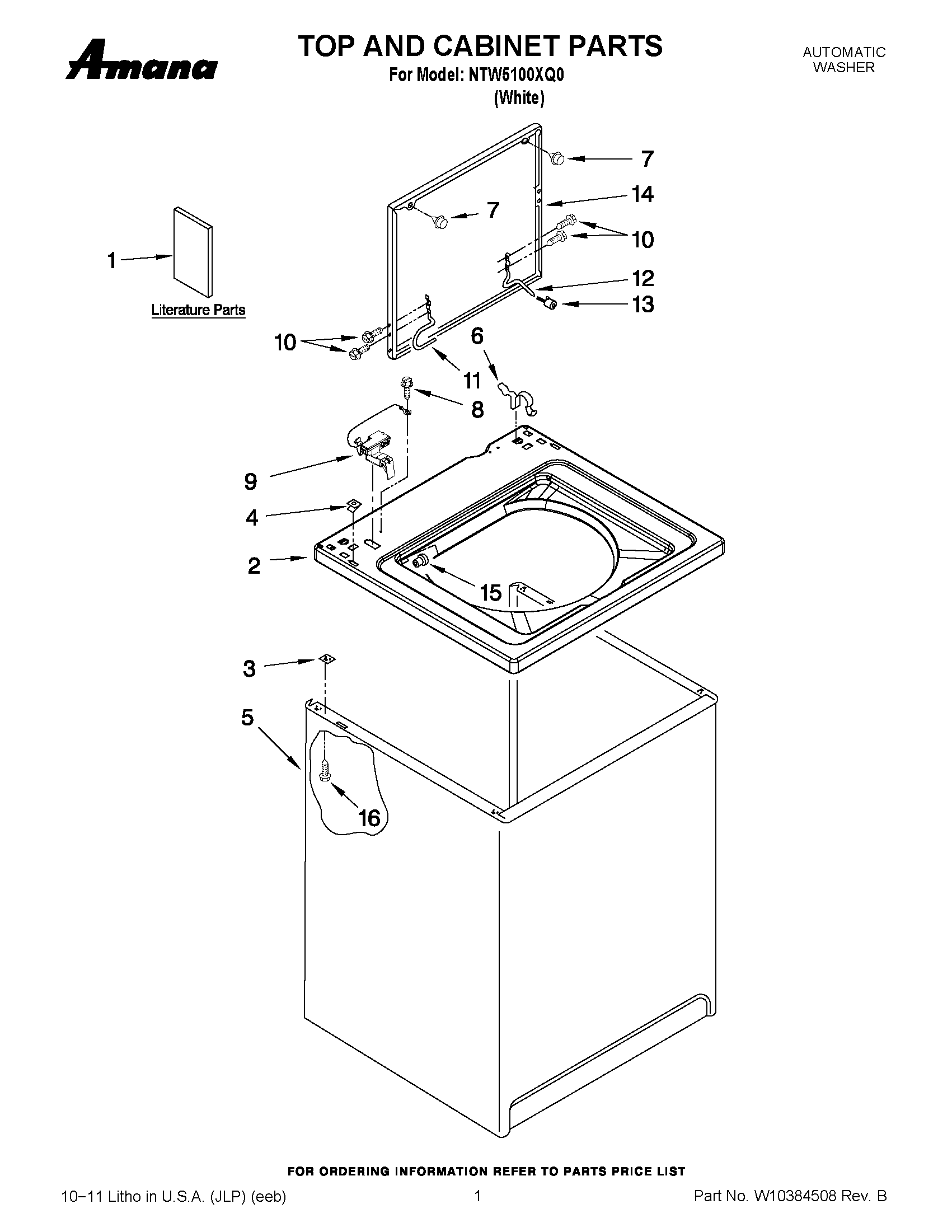

NTW5100XQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10362944
1MAY W10344457
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1MAY W10347262
1INSTALLATION INSTRUCTIONS (SPANISH)
1MAY W10368957
2TOP
3MAY 62750
4Nut, Push-In
5Cabinet
6MAY 62780
7MAY 9724509
8SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9MAY 8318084
10SCREW, LID HINGE
11MAY W10225135
12HINGE, LID (RIGHT HAND)
13MAY 19119
14MAY 8541774
15Hinge, Bearing (2)
16SCREW
