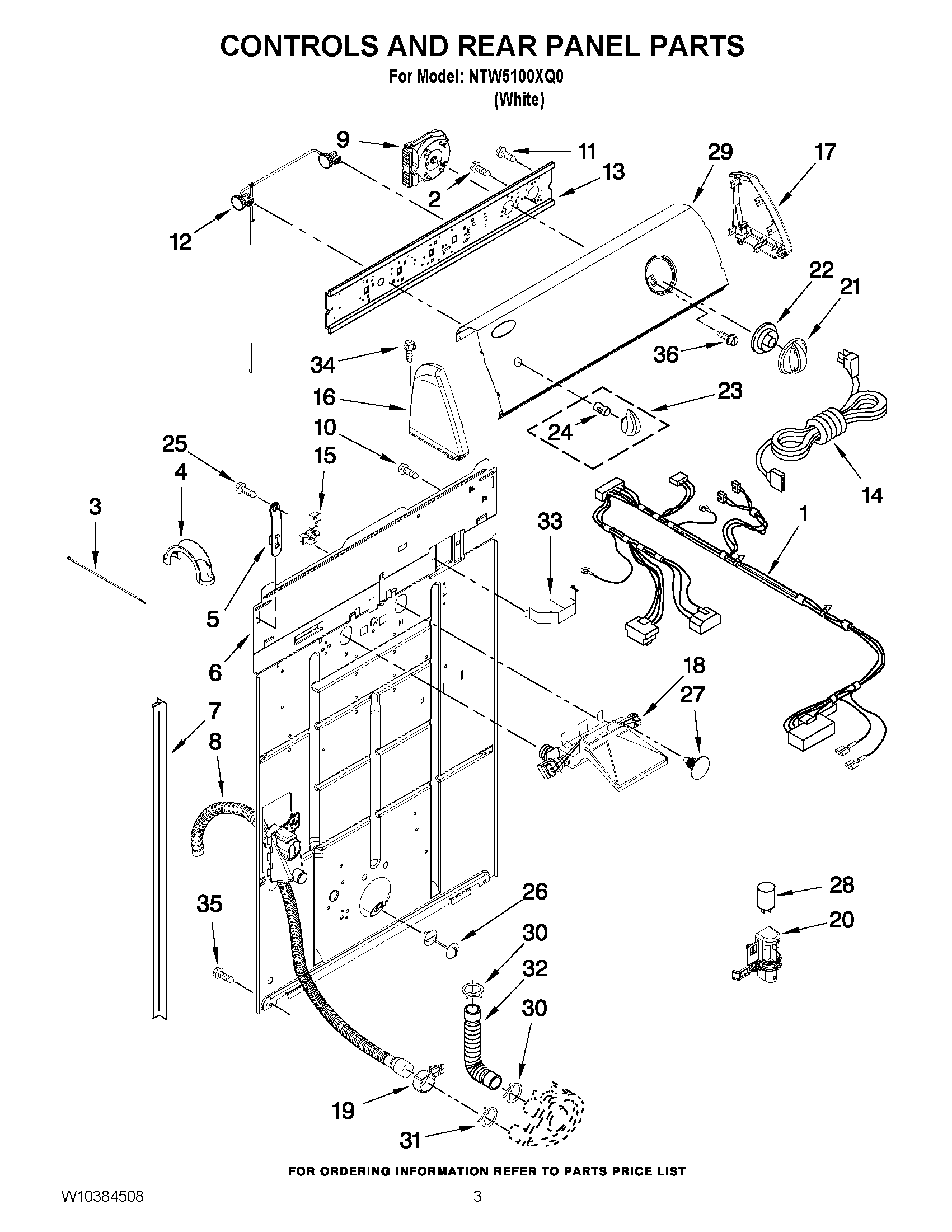

NTW5100XQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10362919
2	SCREW
3	TIE, CABLE
4	U-Bend
5	Strap, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY W10363657
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY W10403282
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	MAY W10140918
19	MAY 8541668
20	MAY 8318046
21	MAY W10196505
22	MAY W10196506
23	MAY W10196503
24	CLIP, SPRING
25	SCREW
26	MAY 8519200
27	RETAINER, PUSH-IN
28	MAY 8572717
29	MAY W10339550
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	Screw, Console
35	Screw, Mixing Valve Mounting
36	SCREW
