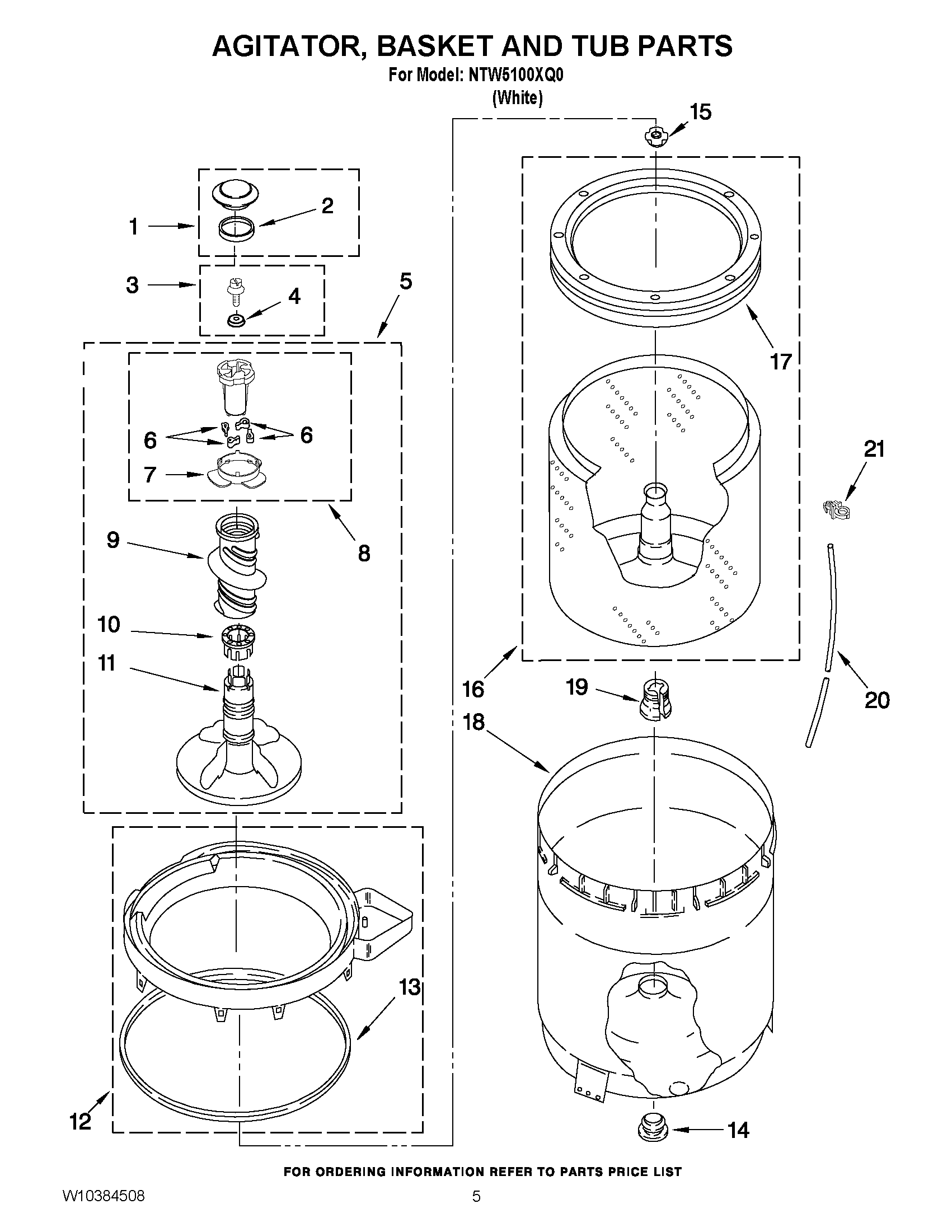

NTW5100XQ0 03 – AGITATOR, BASKET AND TUB PARTS

NTW5100XQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW5100XQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 63973
2	MAY 358912
3	Screw & Washer
4	MAY 3949550
5	AGITATOR, COMPLETE
6	Dog, Agitator (4)
7	BEARING, CAM
8	Cam, Driven
9	MAY 3360824
10	SPACER, THRUST
11	MAY 389386
12	MAY W10445870
13	MAY 3976308
14	MAY 383727
15	MAY 21366
16	BASKET ASSEMBLY
17	Ring, Balance
18	MAY 63849
19	Block, Drive
20	MAY W10297437
21	Clip, Harness (1)
