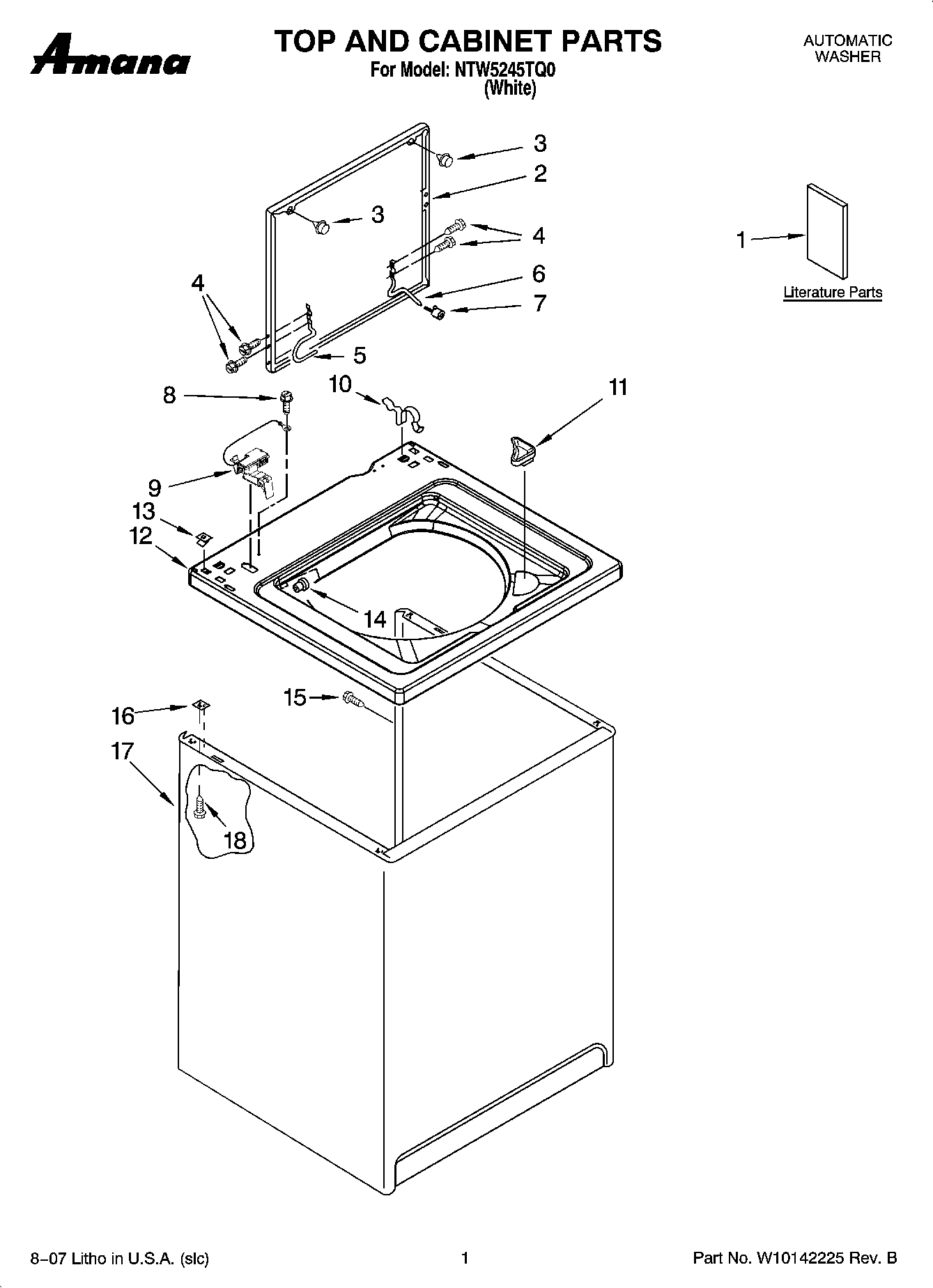

NTW5245TQ0 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	MAY W10092752
1	MAY W10092679
1	MAY W10092677
1	MAY W10044800
1	MAY 8578871
2	MAY W10093700
3	MAY 9724509
4	Screw And Washer
5	MAY 8318088
6	HINGE, LID (RIGHT HAND)
7	MAY 19119
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	MAY 8318084
10	MAY 62780
11	MAY 3362952
12	MAY 8318064
13	Nut, Push-In
14	Hinge, Bearing (2)
15	SCREW
16	MAY 62750
17	Cabinet
18	SCREW
