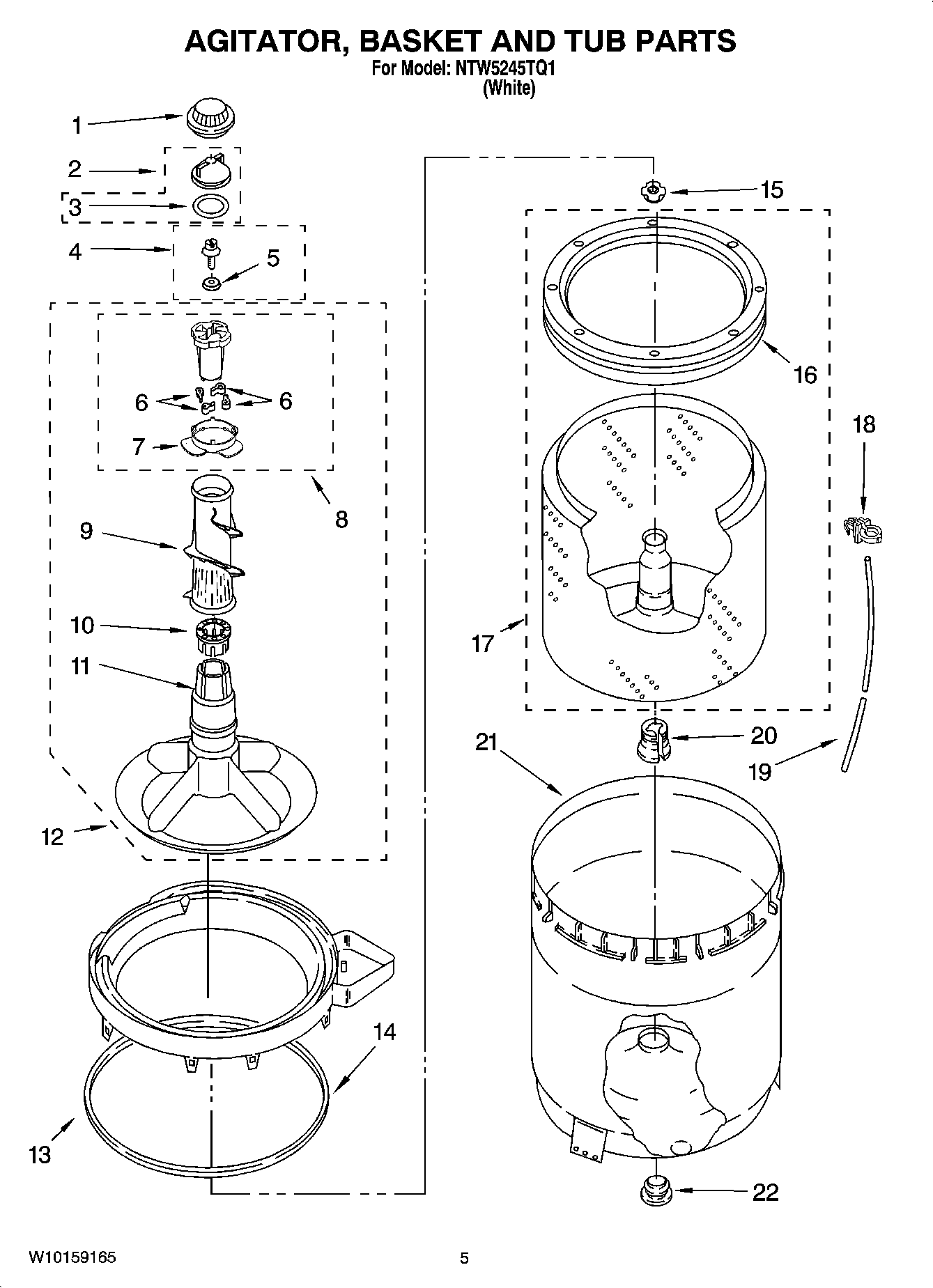

NTW5245TQ1 03 – AGITATOR, BASKET AND TUB PARTS

NTW5245TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW5245TQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3355758
2	MAY 3354733
3	Seal, Inner Cap
4	Screw & Washer
5	MAY 3949550
6	Dog, Agitator (4)
7	BEARING, CAM
8	MAY 3363663
9	MOVER, CLOTHES
10	SPACER, THRUST
11	MAY W10110786
12	MAY W10110785
13	Ring, Tub
14	MAY 3976308
15	MAY 21366
16	Ring, Balance
17	MAY W10093703
18	Clip, Harness (1)
19	MAY 3347780
20	Block, Drive
21	MAY 63849
22	MAY 383727
