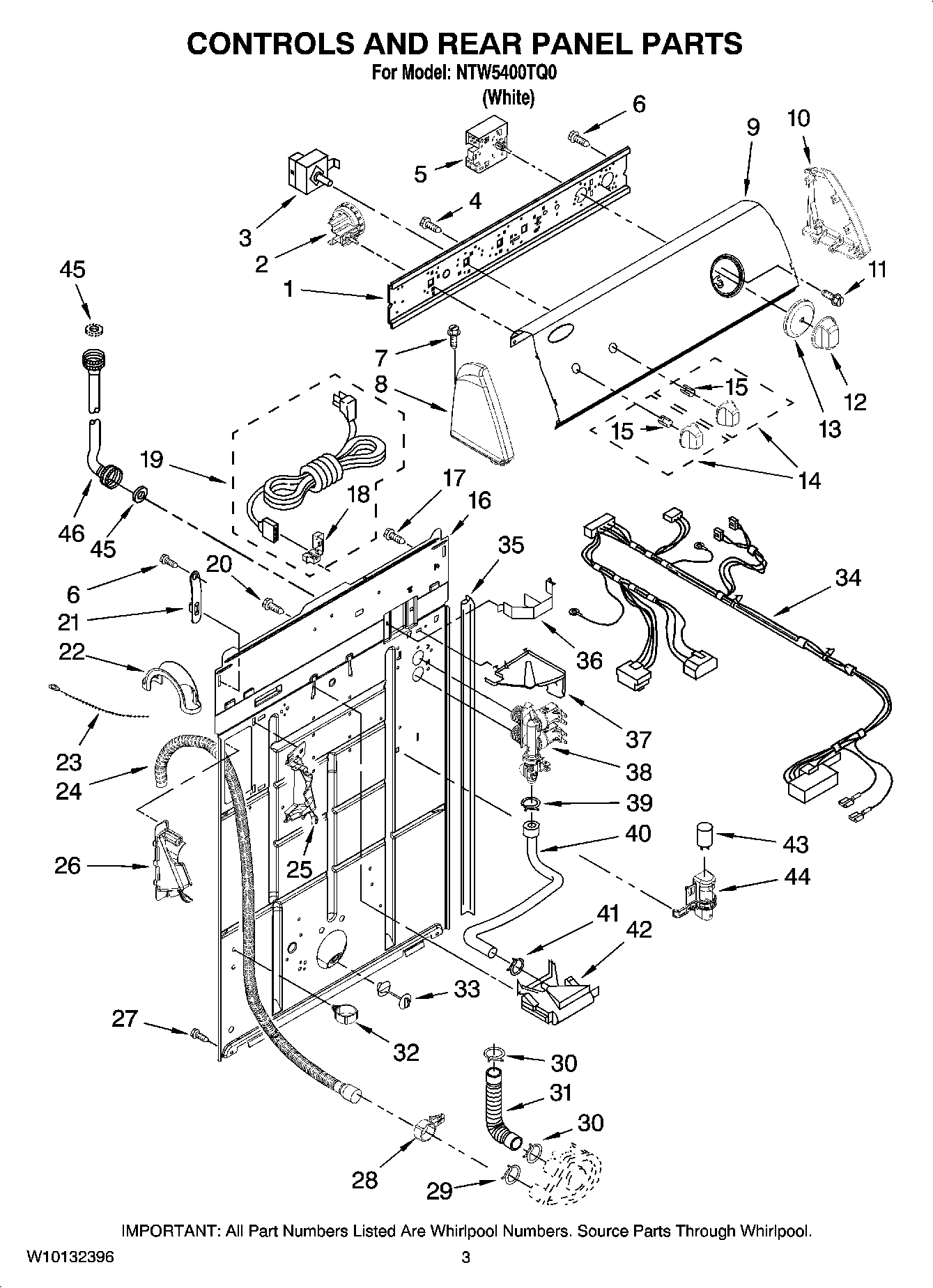

NTW5400TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY 3948608
2	MAY 8577845
3	MAY 8578337
4	SCREW
5	Timer (Motor Not A Service Part)
6	SCREW,8-18 X 3/8
7	Screw, Console
8	MAY 8271365
9	MAY W10089719
10	MAY 8271359
11	SCREW
12	MAY W10110045
13	MAY W10110046
14	Knob, Control (2) (White)
15	CLIP, SPRING
16	MAY 8318015
17	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
18	MAY 3952821
19	Cord, Power
20	SCREW
21	Strap, Console
22	U-Bend
23	MAY 3347868
24	Drain Hose Assembly (Includes Items 28 & 32)
25	MAY 8541669
26	MAY 8541658
27	Screw, Mixing Valve Mounting
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8541667
33	MAY 8519200
34	MAY 3958082
35	MAY 62747
36	Clip, Harness & Pressure Switch
37	MAY 8539874
38	MAY 8578340
39	MAY 301958
40	MAY 8317974
41	MAY 370450
42	Thermister, Inlet
43	MAY 8572717
44	MAY 8318046
45	ACCESSORY PARTS, WASHER, INLET HOSE
46	Hose, Water Inlet (2) (Blue Coupler)
46	Hose, Water Inlet (Hot Water)
