NTW5400TQ1 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
NIPAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NIMAY 280130
NIMAY 280129
NIWATER SYSTEM PARTS, DRAIN PROTECTOR
NIMAY 285208
NIMAY 280131
NISEALER, GASKET (.20 FL. OZ.) (6ML)
NIMAY 350572
NIPAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NIPAINT, BULK (1 QT. WHITE (UNCUT))
NIPAINT, TOUCH-UP (1/2OZ. WHITE)

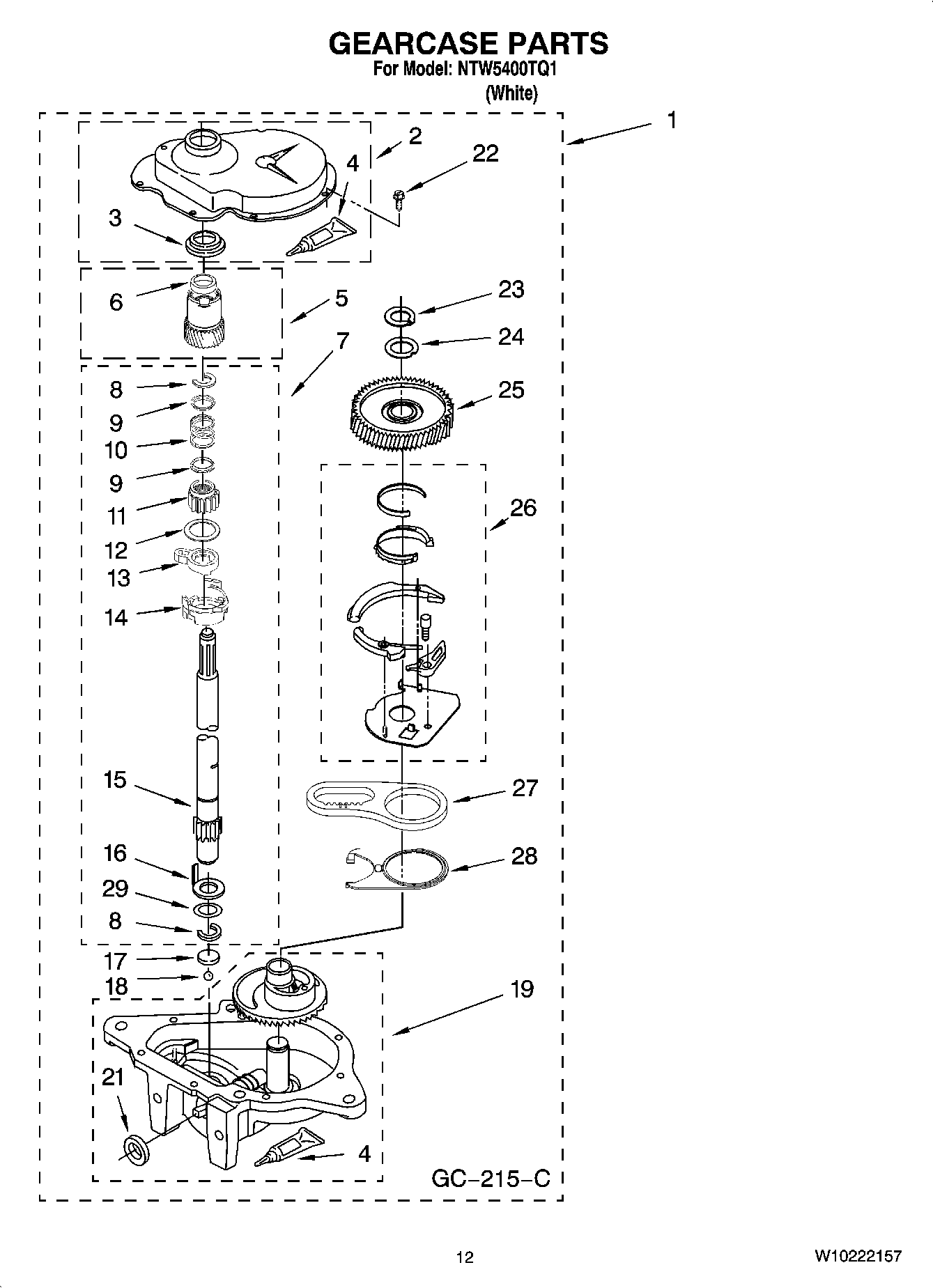

1Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2MAY 285202
3MAY 3349985
5Pinion, Spin (Includes Illus. 25)
6Seal, Spin Pinion
7MAY 389387
8MAY 90369
9Retainer, Spring (2)
10MAY 62676
11Gear, Agitate (Includes 15 & 29)
12MAY 62619
13MAY 62580
14MAY 62581
15Shaft, Agitator (Includes 11 & 29)
16MAY 62618
17Bearing, Thrust (Includes 18)
18Ball, Bearing (Includes 17)
19MAY 389230
21MAY 285352
22SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
23MAY 3362552
24MAY 285735
25MAY 62570
26MAY 388253
27MAY 3349296
28MAY 62621
29MAY 388815
