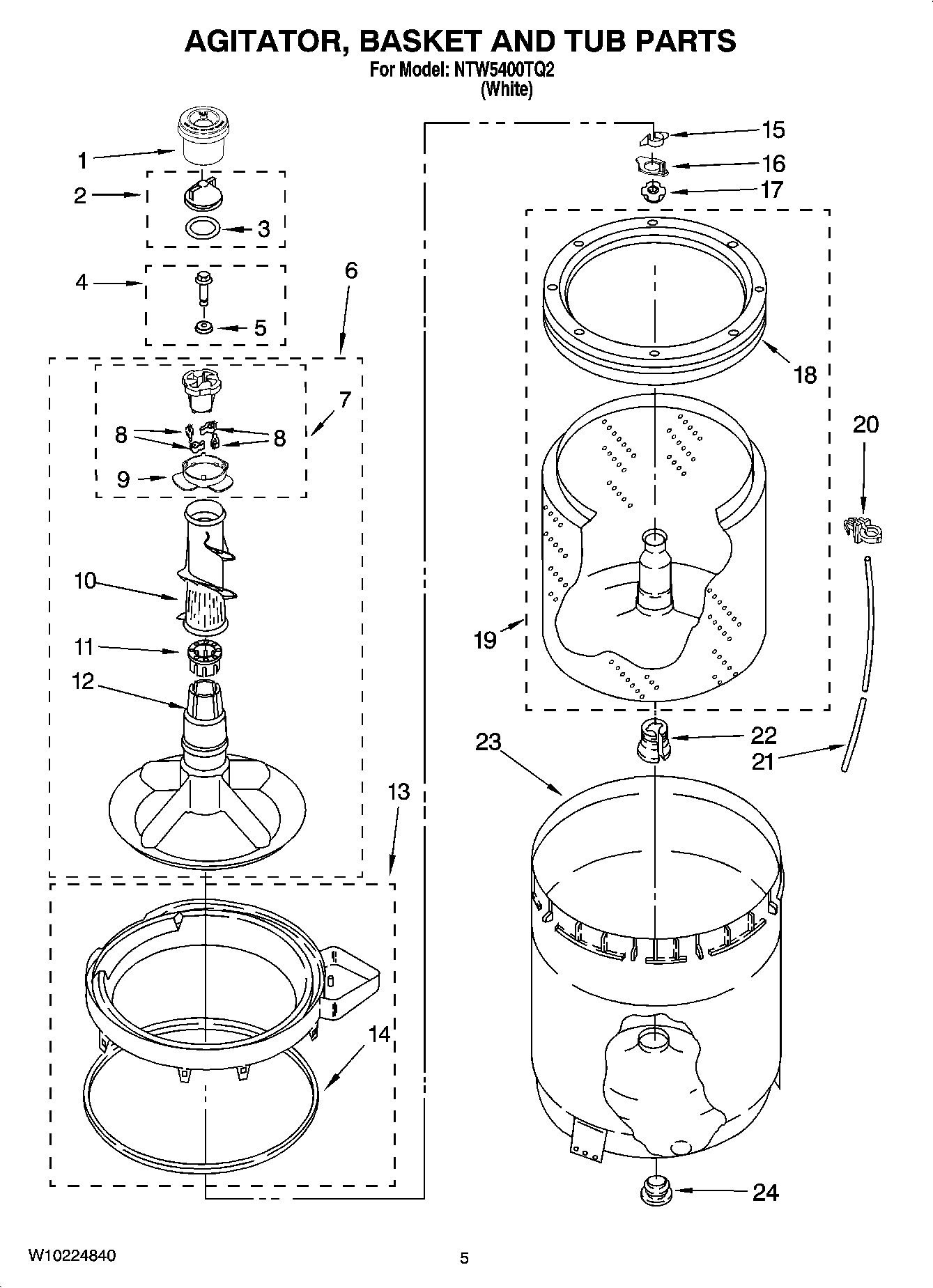

NTW5400TQ2 03 – AGITATOR, BASKET AND TUB PARTS

NTW5400TQ2 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW5400TQ2 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	Screw & Washer
5	MAY 3949550
6	MAY W10110785
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY W10110786
13	Ring, Tub
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	MAY 21366
18	Ring, Balance
19	MAY W10093703
20	Clip, Harness (1)
21	MAY 3347780
22	Block, Drive
23	MAY 63849
24	MAY 383727
