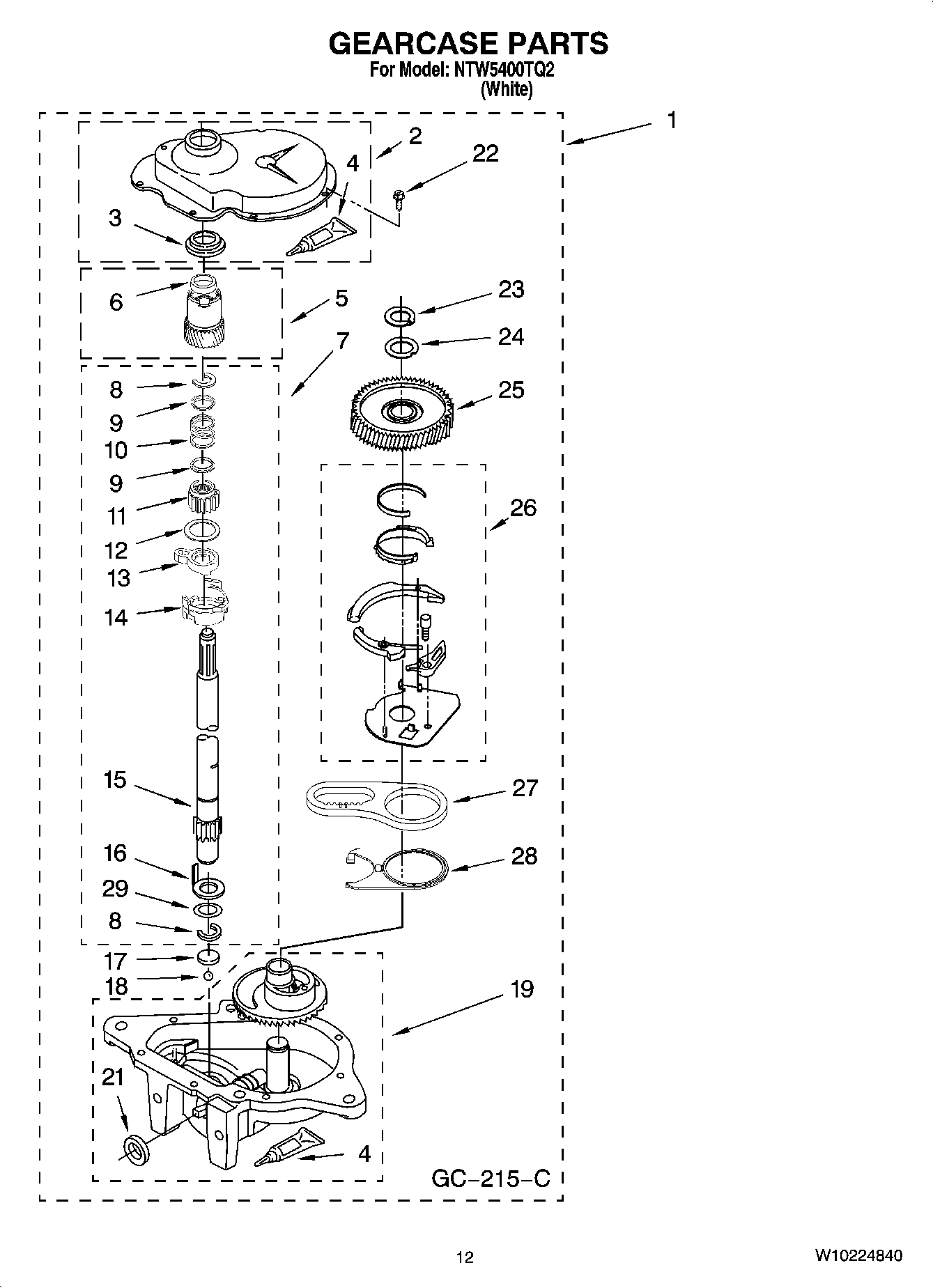

NTW5400TQ2 08 – GEARCASE PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY 280130
NI	Inlet Hoses, 5 Ft. (Two Black Hoses W/Straight Ends & 4 Rubber Washers)
NI	INLET HOSES, 10 FT (TWO BLACK HOSES W/ STRAIGHT ENDS & 4 RUBBER WASHERS)
NI	MAY 350572
NI	SEALER, GASKET (.20 FL. OZ.) (6ML)
NI	MAY 285208
NI	MAY 280131
NI	WATER SYSTEM PARTS, DRAIN PROTECTOR
NI	MAY 280129
NI	INLET HOSES, 6 FT. (TWO BRAIDED HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
NI	INLET HOSES, 6 FT. (TWO BLACK HOSES W/ ONE STRAIGHT END & ONE 90 DEGREE END & 4 RUBBER WASHERS)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	MAY 285448A
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIMER)
NI	MAY 285452A
NI	Inlet Hoses, 5 Ft. (Two Braided Hoses W/Straight Ends & 4 Rubber Washers)
NI	INLET HOSES, 5 FT. (ONE RED HOSE & ONE BLUE HOSE W/STRAIGHT ENDS & 4 RUBBER WASHERS)
NI	MAY 8212546RP
1	Gearcase (Complete) (Refer To Page 12 For Further Breakdown)
2	MAY 285202
3	MAY 3349985
5	Pinion, Spin (Includes Illus. 25)
6	Seal, Spin Pinion
7	MAY 389387
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	Gear, Agitate (Includes 15 & 29)
12	MAY 62619
13	MAY 62580
14	MAY 62581
15	Shaft, Agitator (Includes 11 & 29)
16	MAY 62618
17	Bearing, Thrust (Includes 18)
18	Ball, Bearing (Includes 17)
19	MAY 389230
21	MAY 285352
22	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
23	MAY 3362552
24	MAY 285735
25	MAY 62570
26	MAY 388253
27	MAY 3349296
28	MAY 62621
29	MAY 388815
