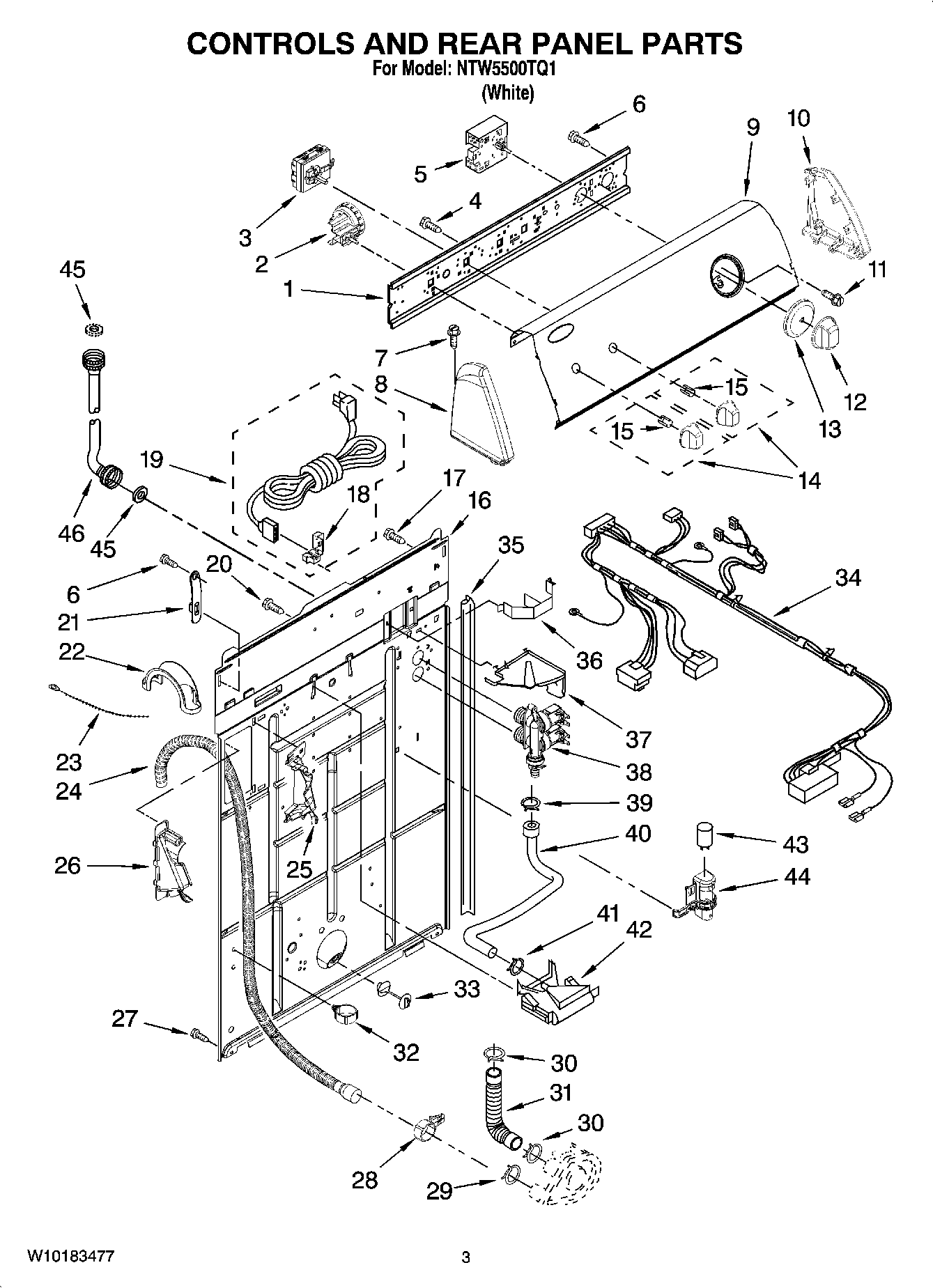

NTW5500TQ1 02 – CONTROLS AND REAR PANEL PARTSadmin2025-04-26T09:04:53+00:00NTW5500TQ1 02 – CONTROLS AND REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3948608 |
| 2 | MAY 8577844 |
| 3 | MAY W10113058 |
| 4 | SCREW |
| 5 | Timer (Motor Not A Service Part) |
| 6 | SCREW,8-18 X 3/8 |
| 7 | Screw, Console |
| 8 | MAY 8271365 |
| 9 | MAY W10089689 |
| 10 | MAY 8271359 |
| 11 | SCREW |
| 12 | MAY W10110045 |
| 13 | MAY W10110046 |
| 14 | Knob, Control (2) (White) |
| 15 | CLIP, SPRING |
| 16 | MAY 8318015 |
| 17 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 18 | MAY 3952821 |
| 19 | Cord, Power |
| 20 | SCREW |
| 21 | Strap, Console |
| 22 | U-Bend |
| 23 | MAY 3347868 |
| 24 | Drain Hose Assembly (Includes Items 22, 28 & 32) |
| 25 | MAY 8541669 |
| 26 | MAY 8541658 |
| 27 | Screw, Mixing Valve Mounting |
| 28 | MAY 8541668 |
| 29 | MAY 8317496 |
| 30 | Clamp, Hose (2) |
| 31 | Hose & Clamp Assembly |
| 32 | MAY 8541667 |
| 33 | MAY 8519200 |
| 34 | Harness, Wiring (For Detail See Pages 9 & 10) |
| 35 | MAY 62747 |
| 36 | Clip, Harness & Pressure Switch |
| 37 | MAY 8539874 |
| 38 | Valve, Water Inlet W/Thermistor |
| 39 | MAY 301958 |
| 40 | MAY 8317974 |
| 41 | MAY 370450 |
| 42 | Thermister, Inlet |
| 43 | MAY 8572717 |
| 44 | MAY 8318046 |
| 45 | ACCESSORY PARTS, WASHER, INLET HOSE |
| 46 | Hose, Water Inlet (Hot Water) |
| 46 | Hose, Water Inlet (2) (Blue Coupler) |
