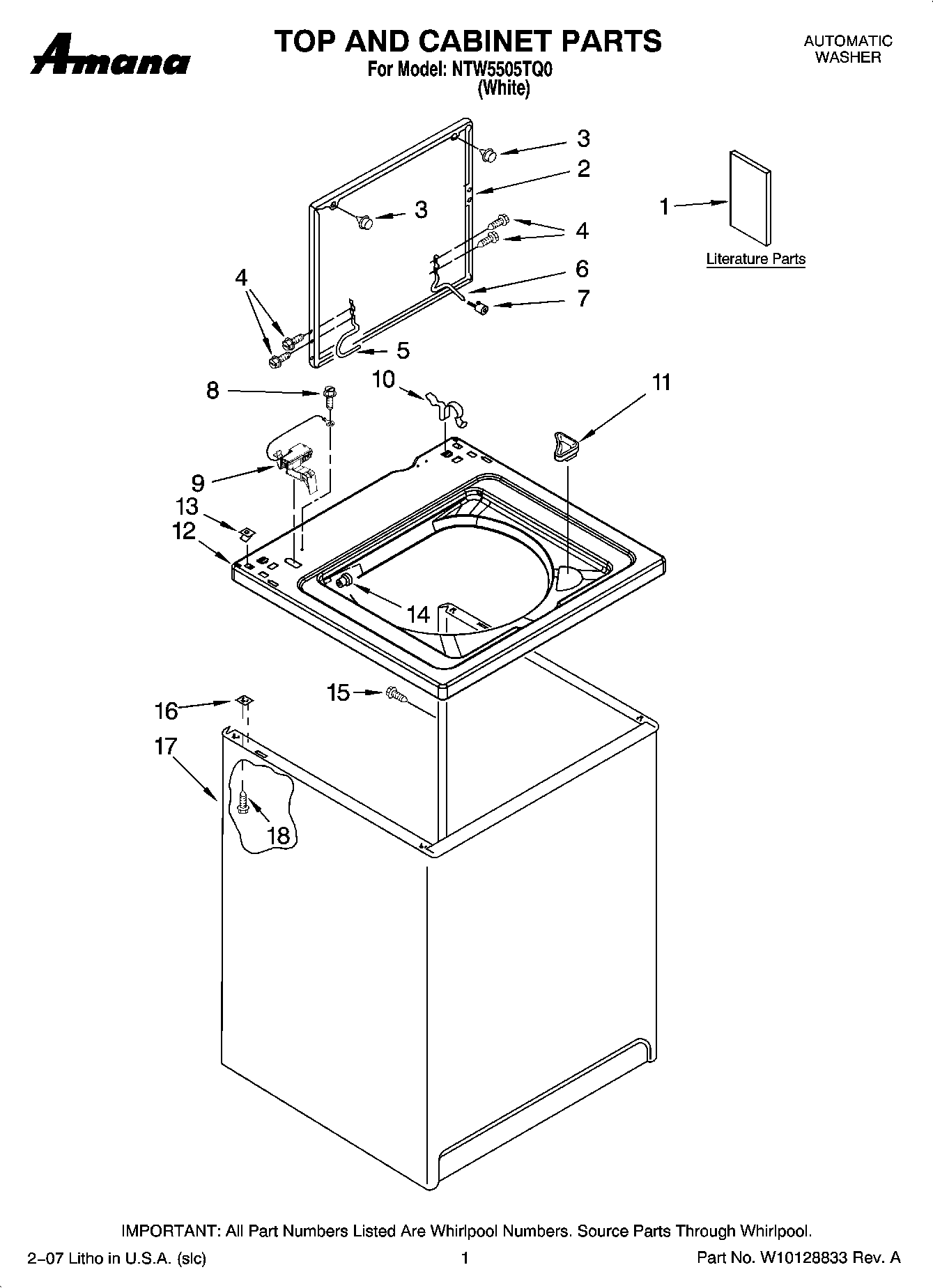

NTW5505TQ0 01 – TOP AND CABINET PARTS

NTW5505TQ0 01 – TOP AND CABINET PARTS

Written by

in

NTW5505TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10092724
1MAY W10092702
1MAY 8578910
1MAY W10092677
1MAY W10044800
2MAY W10093700
3MAY 9724509
4Screw And Washer
5MAY 8318088
6HINGE, LID (RIGHT HAND)
7MAY 19119
8SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9MAY 8318084
10MAY 62780
11MAY 3362952
12MAY 8318064
13Nut, Push-In
14Hinge, Bearing (2)
15SCREW
16MAY 62750
17Cabinet
18SCREW
