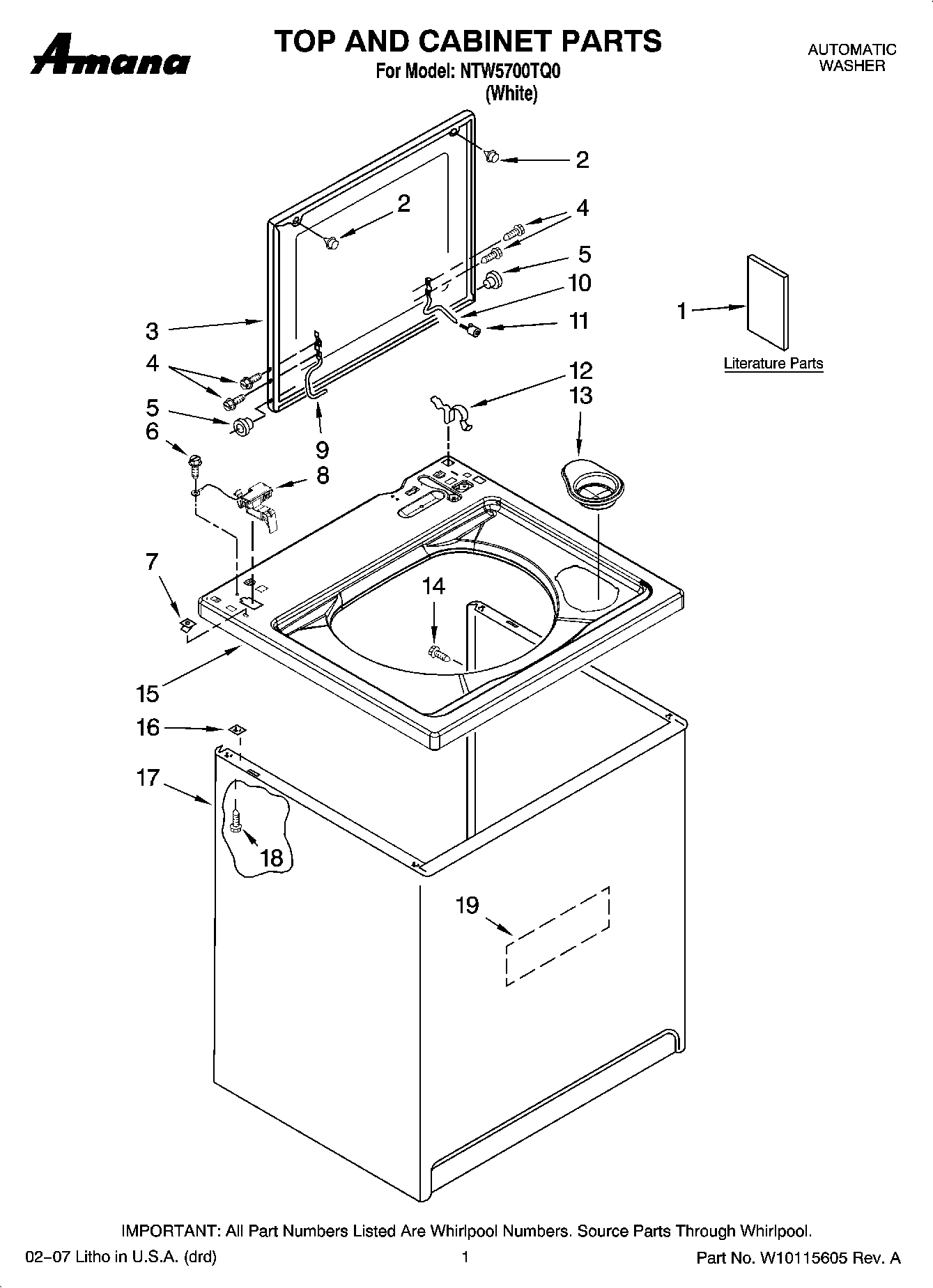

NTW5700TQ0 01 – TOP AND CABINET PARTS

NTW5700TQ0 01 – TOP AND CABINET PARTS

Written by

in

NTW5700TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10092701
1MAY W10092679
1MAY W10092677
1MAY W10044800
1MAY 8577358
2MAY 9724509
3MAY W10093686
4SCREW, LID HINGE
5MAY 8319539
6SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
7Nut, Push-In
8MAY 8318084
9MAY 8559336
10HINGE, LID (RIGHT HAND)
11MAY 19119
12MAY 62780
13MAY 8566266
14SCREW
15Top
16MAY 62750
17Cabinet
18SCREW
19Absorber, Sound (Cabinet) (3)
