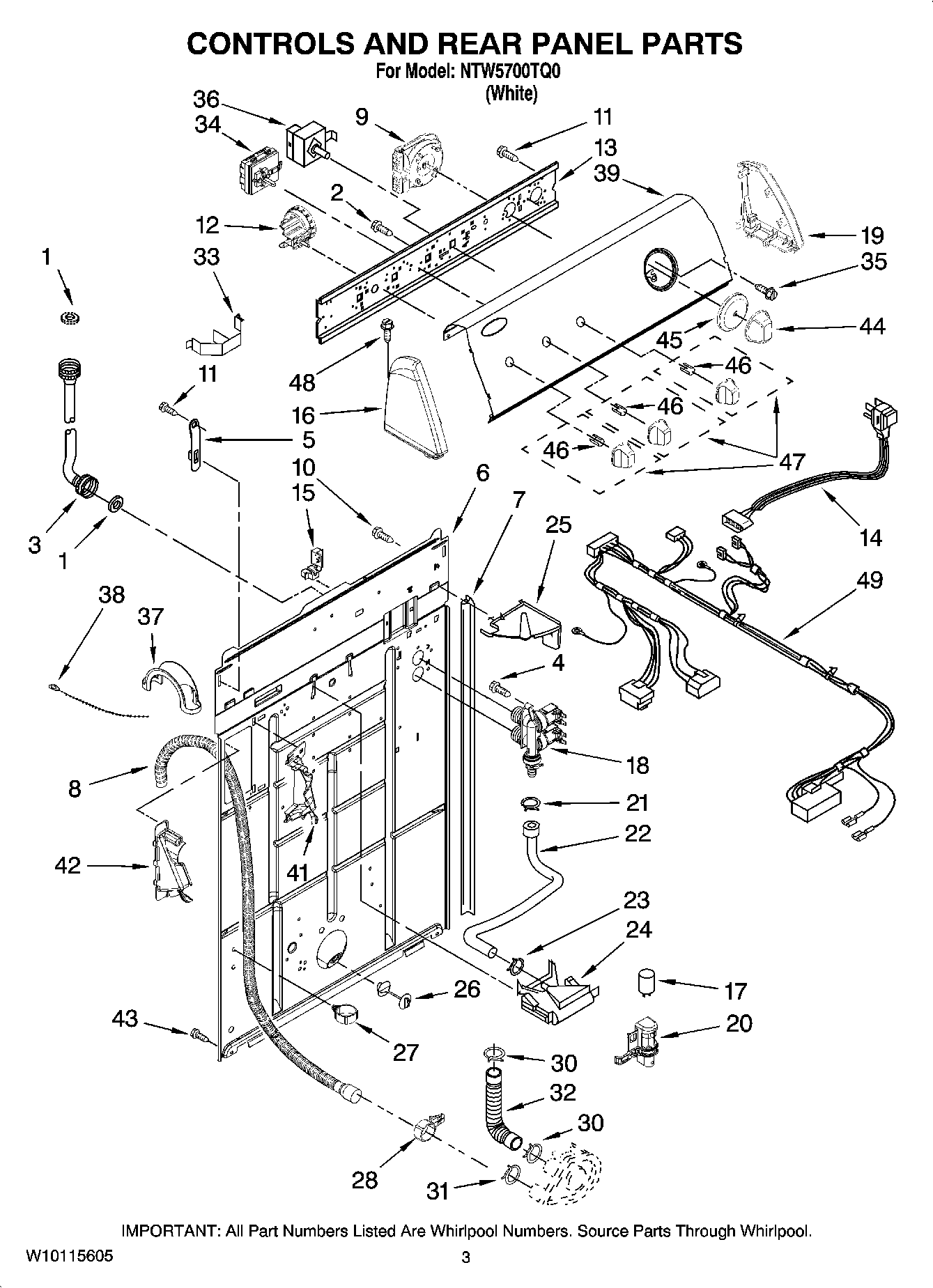

NTW5700TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	SCREW
3	Hose, Water Inlet (2) (Blue Coupler)
3	Hose, Water Inlet (Hot Water)
4	SCREW
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 28 & 32)
9	MAY 8577356
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577842
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8572717
18	Valve, Water Inlet W/Thermistor
19	MAY 8271359
20	MAY 8318046
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	MAY 8539874
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	MAY 8578335
35	SCREW
36	MAY 3949187
37	U-Bend
38	MAY 3347868
39	MAY W10089692
41	MAY 8541669
42	MAY 8541658
43	Screw, Mixing Valve Mounting
44	MAY W10110045
45	MAY W10110046
46	CLIP, SPRING
47	Knob, Control (2) (White)
48	Screw, Console
49	Wiring Harness (For Detail See Pages 9 & 10)
