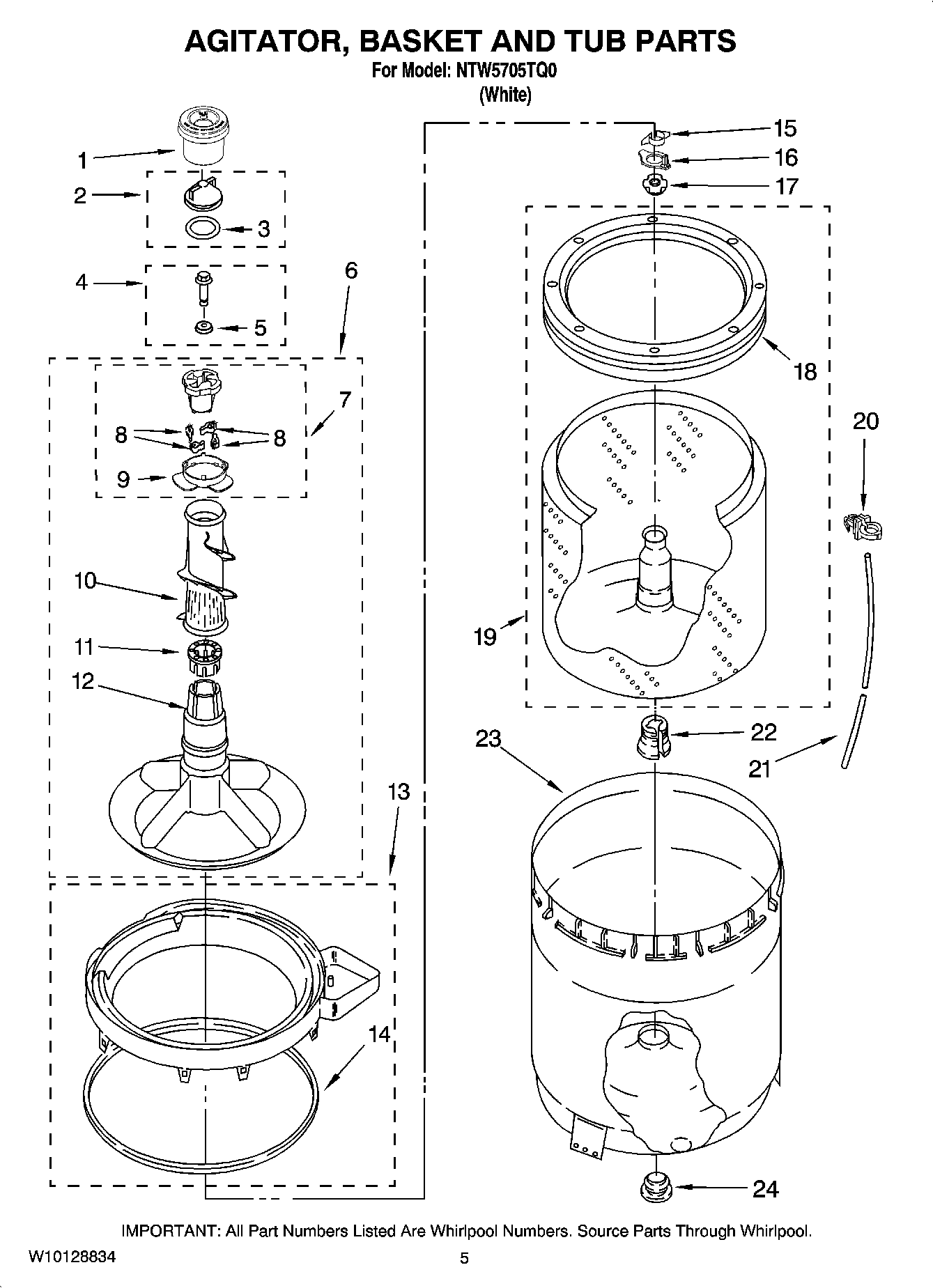

NTW5705TQ0 03 – AGITATOR, BASKET AND TUB PARTS

NTW5705TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

NTW5705TQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	Seal, Inner Cap
4	Screw & Washer
5	MAY 3949550
6	MAY W10093696
7	MAY 3951682
8	Dog, Agitator (4)
9	Bearing, Cam Driven
10	MAY 3363003
11	Spacer, Thrust
12	MAY W10093695
13	Ring, Tub
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	MAY 21366
18	Ring, Balance
19	MAY W10093703
20	Clip, Harness (1)
21	MAY 3347780
22	Block, Drive
23	MAY 63849
24	MAY 383727
