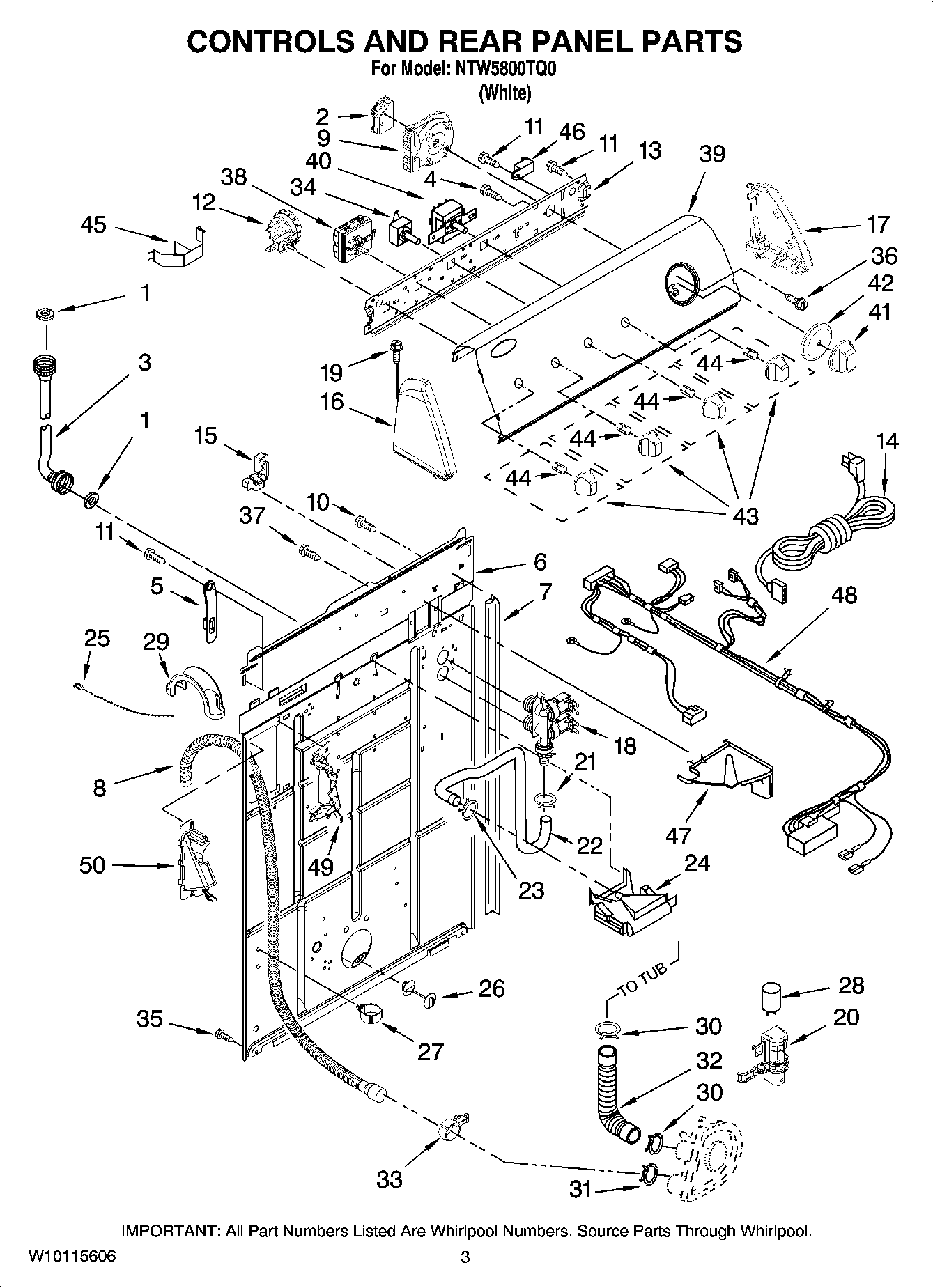

NTW5800TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	MAY 8578411
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (2) (Blue Coupler)
4	SCREW
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 28 & 32)
9	MAY 8577787
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577842
13	MAY 3948608
14	Cord, Power
15	MAY 3952821
16	MAY 8271365
17	MAY 8271359
18	Valve, Water Inlet W/Thermistor
19	Screw, Console
20	MAY 8318046
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	MAY 3347868
26	MAY 8519200
27	MAY 8541667
28	MAY 8572717
29	U-Bend
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8541668
34	MAY 3950356
35	Screw, Mixing Valve Mounting
36	SCREW
37	SCREW
38	MAY 8577786
39	MAY W10110053
40	MAY 8578537
41	MAY W10110045
42	MAY W10110046
43	Knob, Control (2) (White)
44	CLIP, SPRING
45	Clip, Harness & Pressure Switch
46	MAY 694419
47	MAY 8539874
48	Harness, Wiring (Includes Item 40) (For Detail See Pages 9 & 10)
49	MAY 8541669
50	MAY 8541658
