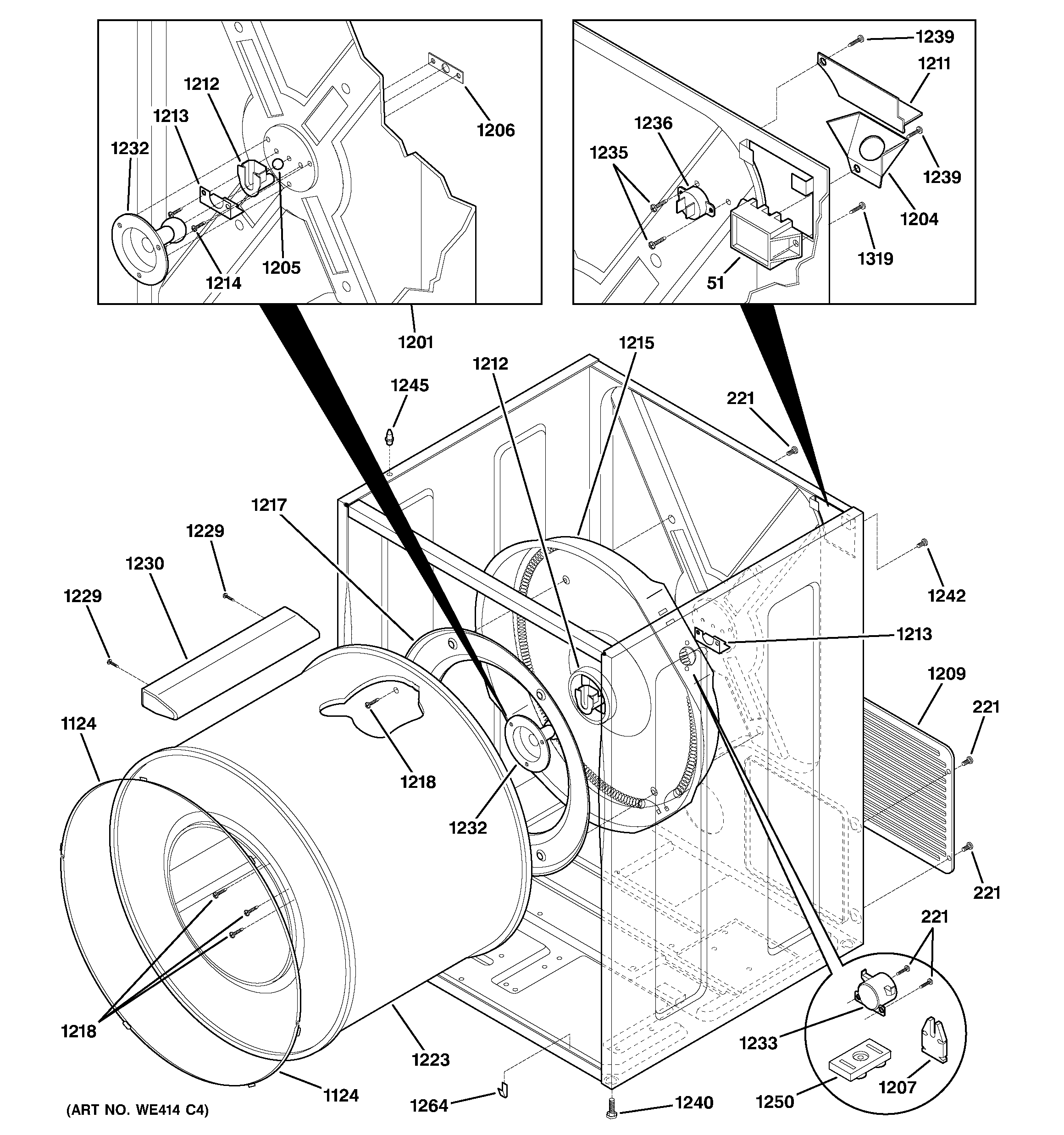

NVL333EB6WW CABINET & DRUM

NVL333EB6WW CABINET & DRUM

Written by

in

NVL333EB6WW CABINET & DRUM

Products

PositionProduct
51GEN WE04X10095
221SCREW PAN HD.8-18ABX.375
1124WE03X10007 GE Bearing
1201WE25X10001 GE Rear Bearing Kit
1204BRACKET CORD
1205GEN WE01X1152
1206CLIP BALL
1207INSULATOR, HEATER HSNG
1209PANEL-ACCESS
1211GEN WE20X10005
1212GEN WE03X10002
1213BRACKET BEARING
1214GEN WE02X10005
1215HEATER-HOUSING ASS'Y
1217BAFFLE-HEATER
1218SCREW 10-16 X.375
1223GEN WE21X10013
1229GEN WE02X10007
1230GEN WE21X0069
1232WE13X10011 GE Washer Rear Bearing Shaft Support
1233WE4X757 GE Dryer High Limit Safety Thermostat
1235SCREW 6-20 X .230
1236WE04X10094 GE Thermal Limiter
1239WE02X10011 GE Screw
1240WR2X9485 GE Refrigerator Foot Adjustment
1242SCREW, 8-18 AB X .44
1245GEN WE01X10035
1250BLOCK TERM HEATER HSG
1264CLIP CABINET BTM
1319SCREW 10-16 X .75
