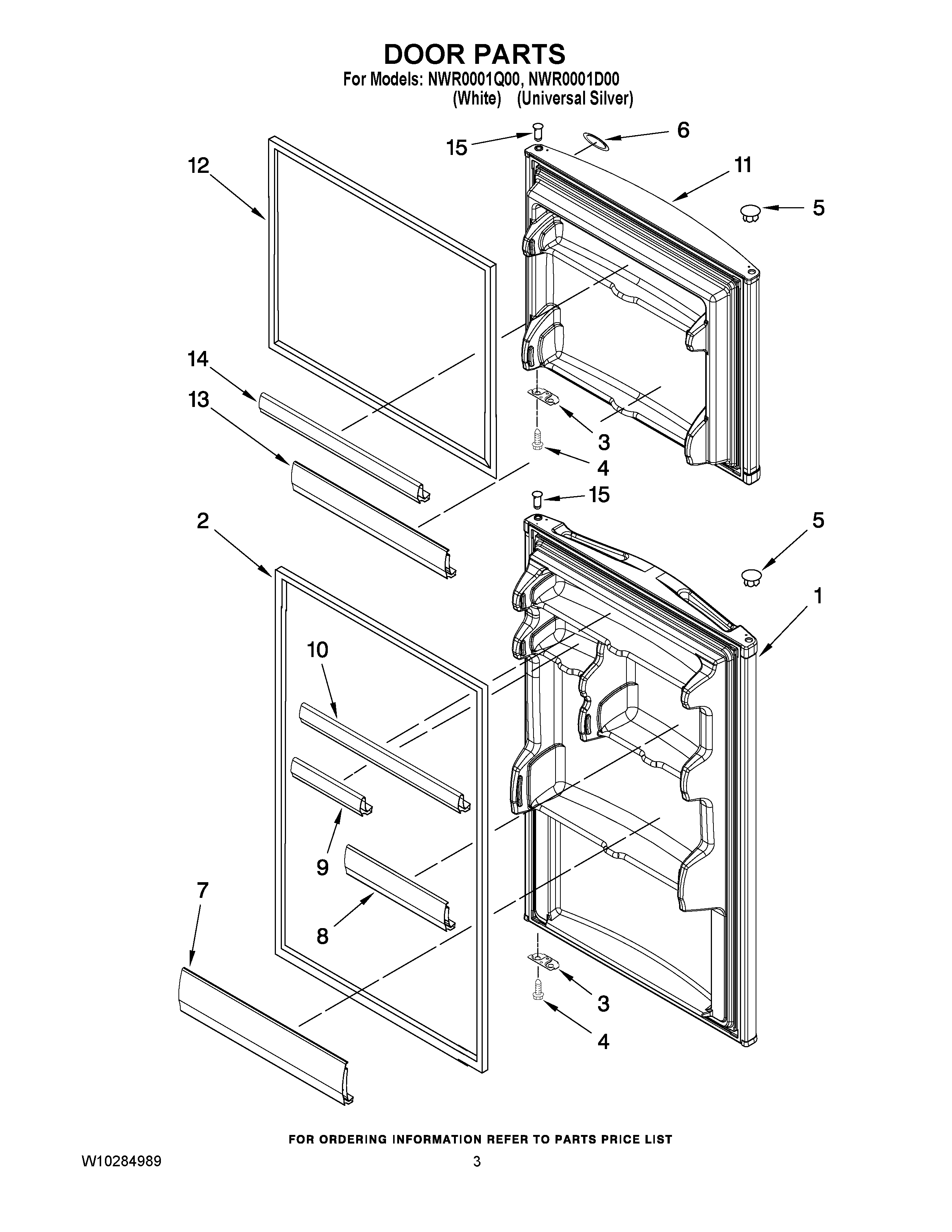

NWR0001Q00 02 – DOOR PARTSadmin2025-04-26T12:45:45+00:00NWR0001Q00 02 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (UNIVERSAL SILVER) |
| 1 | REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (WHITE) |
| 2 | GASKET, DOOR (RC) (MIST BEIGE) |
| 2 | Gasket, Door (RC) (Black) |
| 3 | Bracket, Door Stop |
| 4 | WP488921 Whirlpool Refrigerator Screw |
| 5 | 2211250B Whirlpool Refrigerator Plug Button |
| 5 | Hole Plug (White) |
| 6 | WP2213265 Whirlpool Refrigerator Nameplate |
| 7 | TRIM, DOOR SHELF (BOTTOM) |
| 8 | TRIM, DOOR SHELF (MIDDLE-RIGHT) |
| 9 | TRIM, DOOR SHELF (MIDDLE-LEFT) |
| 10 | TRIM, DOOR SHELF (TOP) |
| 11 | FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (WHITE) |
| 11 | FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (UNIVERSAL SILVER) |
| 12 | WP2265773 Whirlpool Refrigerator FIP Gasket |
| 12 | GASKET, DOOR (FC) (MIST BEIGE) |
| 13 | TRIM, DOOR SHELF (BOTTOM) |
| 14 | TRIM, DOOR SHELF (TOP) |
| 15 | Thimble |
