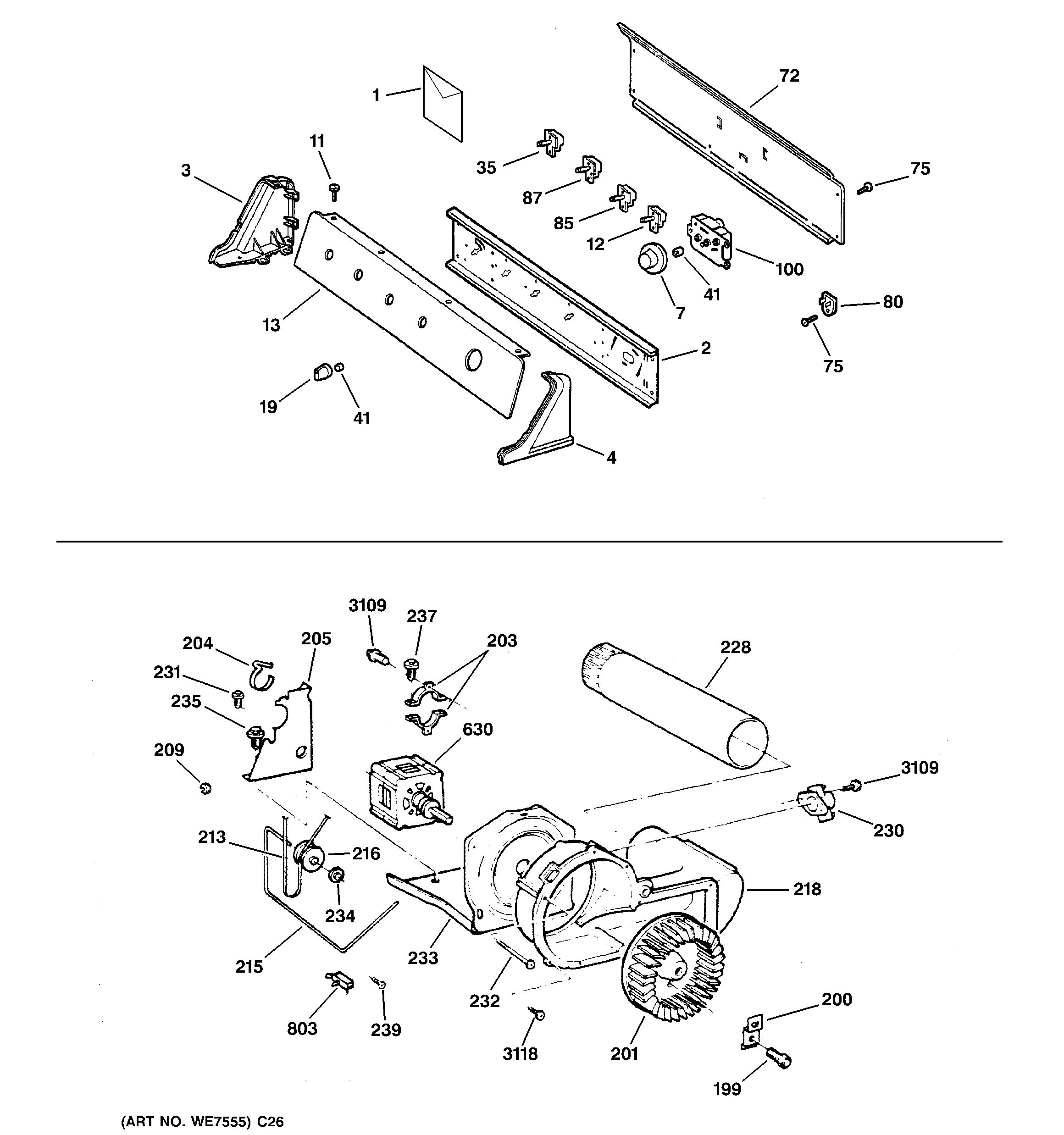

NWSR483EB2WW BACKSPLASH, BLOWER & MOTOR ASSEMBLY

Products

Position	Product
1	GEN 31-15475
1	GEN 39-90017
1	MINI MANUAL
2	GEN WE19M1166
3	GEN WE19M940
4	END CAP RH WH
7	GEN WE1M484
11	GEN WH02X1206
12	GEN WE4M257
13	END CAP LH BQ
19	GEN WH01X10141
35	WE4M519 GE Washer Start Switch Rotary
41	GEN WE01X0980?
72	GEN WE20X0811
75	WE2M173 GE Screw
80	WE4M255 GE Washer Resistor
85	WE4M399 GE Rocker Switch
87	GEN WE4M267
100	WE4M189 GE Timer
199	GEN WE02X0280
200	WE1X688 GE Dryer Clamp and Screw
201	WE16M15 GE Washer Dryer Blower Wheel
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
205	WE13M39 GE Motor Support
209	GEN WE02M0165
213	WE03X29897 BELT DRIVE
215	WE03X20434 GE Washer Idler Arm
216	WE12X81 GE Dryer Idler Pulley
218	GEN WE14M0078
228	WE14X20421 GE Exhaust Duct
230	WE4M216 GE Dryer Bias Thermostat
232	WE2M202 GE Screw
233	MOTOR PLATE (E-COAT)
234	GEN WE02M0096
235	WE1M280 GE Screw
237	WE2M200 GE Ground Screw
239	GEN WE02M0167
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803	WD21X10261 GE Dishwasher Interlock Switch
3109	WD02X10057 GE Dishwasher Screw 10-16 x 1
3118	GEN WH02M0342
