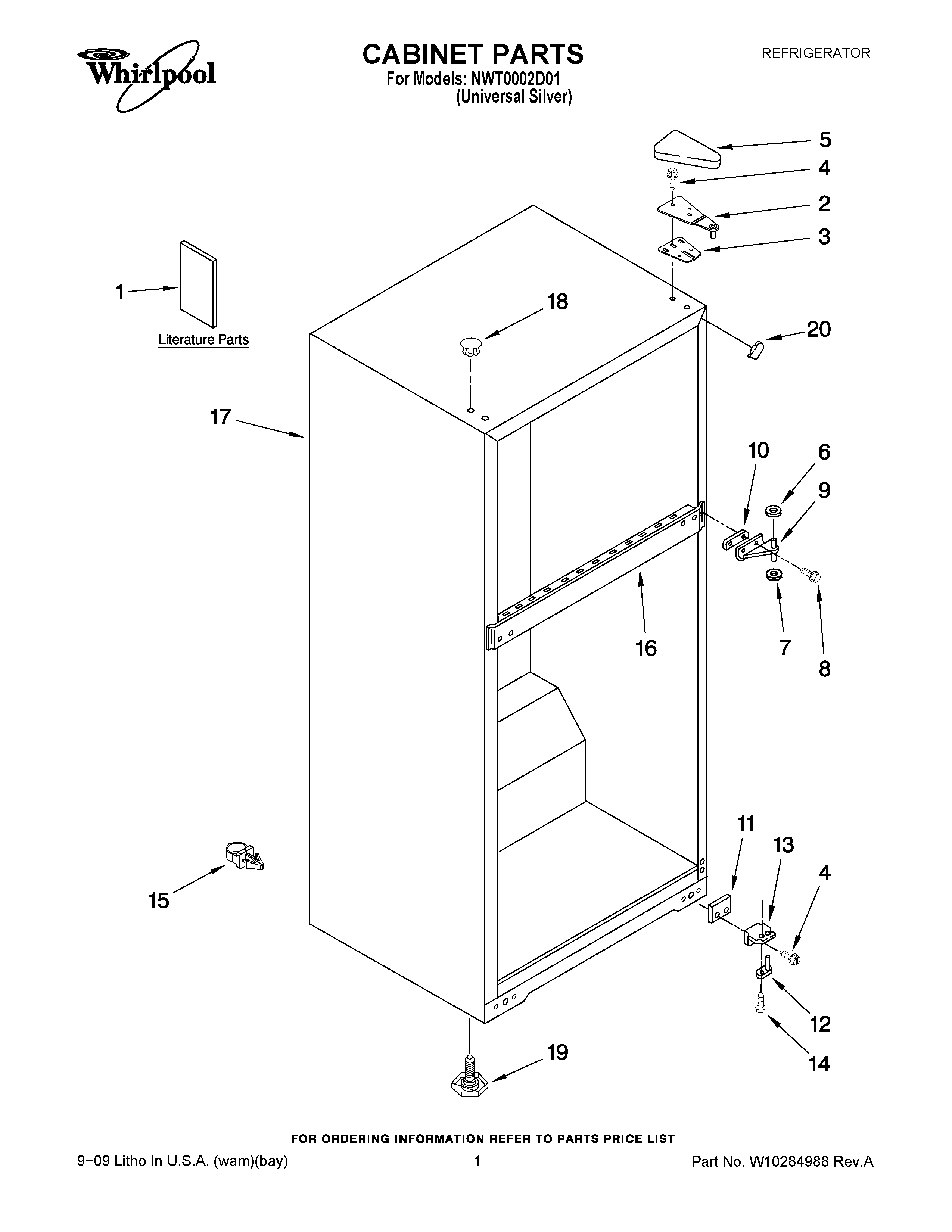

NWT0002D01 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1DO-IT-YOURSELF MANUAL, REF./ FZR.
22211109 Whirlpool Refrigerator Door Hinge
3W11169703 Whirlpool Refrigerator Shim
4WP489497 Whirlpool Screw
5COVER, HINGE (UNIVERSAL SILVER)
6WP487576 Whirlpool Washer
7WP487802 Whirlpool Refrigerator Washer
83400112 Whirlpool Refrigerator Screw
92211114 Whirlpool Refrigerator Door Hinge
102166043 Whirlpool Refrigerator Shim
112211299 Whirlpool Refrigerator Hinge Shim
122211158 Whirlpool Refrigerator Door Hinge
13W10215063 Whirlpool Refrigerator Door Hinge
14WP3428970 Whirlpool Refrigerator Screw
152219077 Whirlpool Refrigerator Clip
17CABINET (NOT A SERVICEABLE PART)
18HOLE PLUG (6) (UNIVERSAL SILVER)
19W11117769 Whirlpool Refrigerator Leveler
20FILLER, CORNER (UNIVERSAL SILVER)
