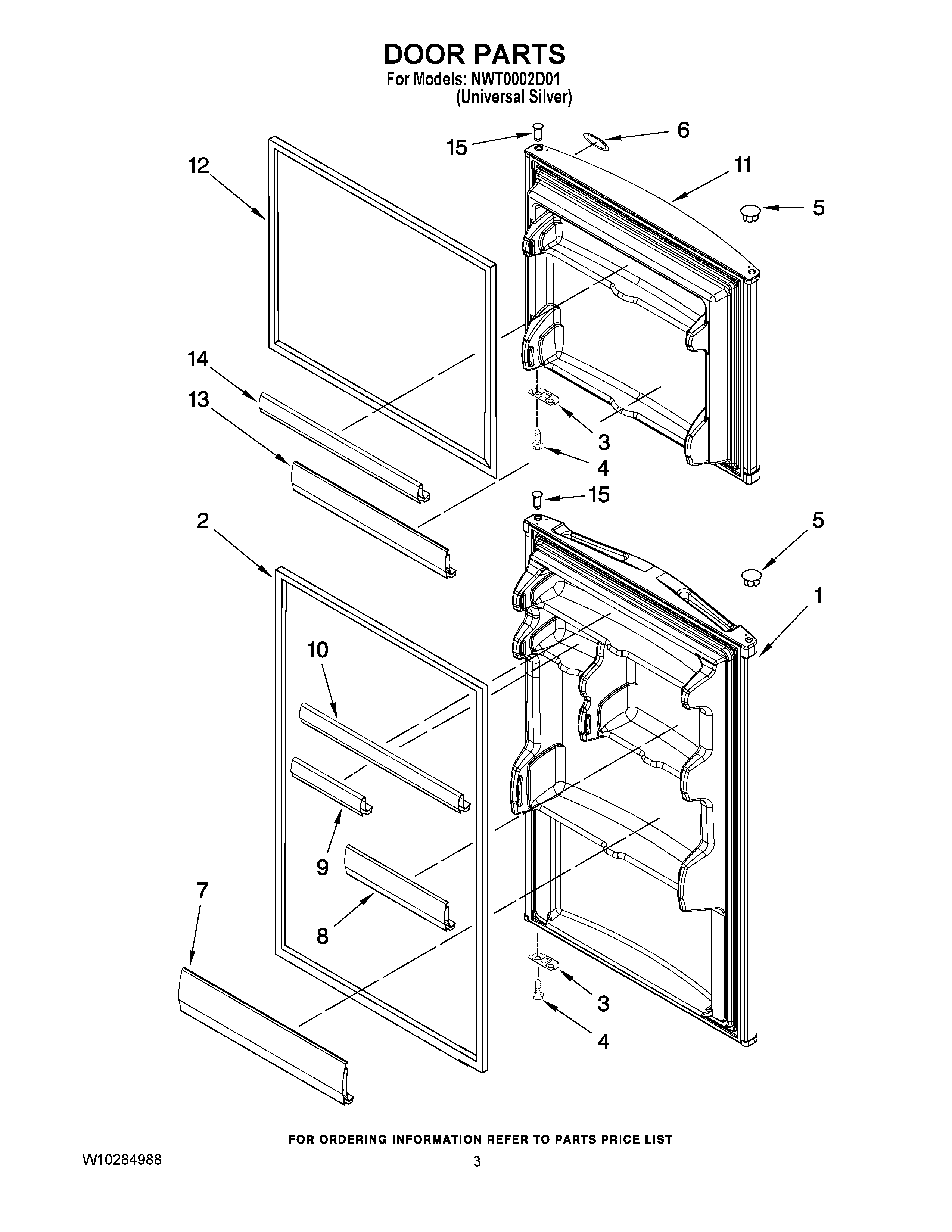

NWT0002D01 02 – DOOR PARTS

NWT0002D01 02 – DOOR PARTS

Written by

in

NWT0002D01 02 – DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (UNIVERSAL SILVER)
2GASKET, DOOR (RC) (MIST BEIGE)
3Bracket, Door Stop
4WP488921 Whirlpool Refrigerator Screw
52211250B Whirlpool Refrigerator Plug Button
6WP2213265 Whirlpool Refrigerator Nameplate
7TRIM, DOOR SHELF (BOTTOM)
8TRIM, DOOR SHELF (MIDDLE-RIGHT)
9TRIM, DOOR SHELF (MIDDLE-LEFT)
11FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (UNIVERSAL SILVER)
12GASKET, DOOR (FC) (MIST BEIGE)
13TRIM, DOOR SHELF (BOTTOM)
14TRIM, DOOR SHELF (TOP)
15Thimble
