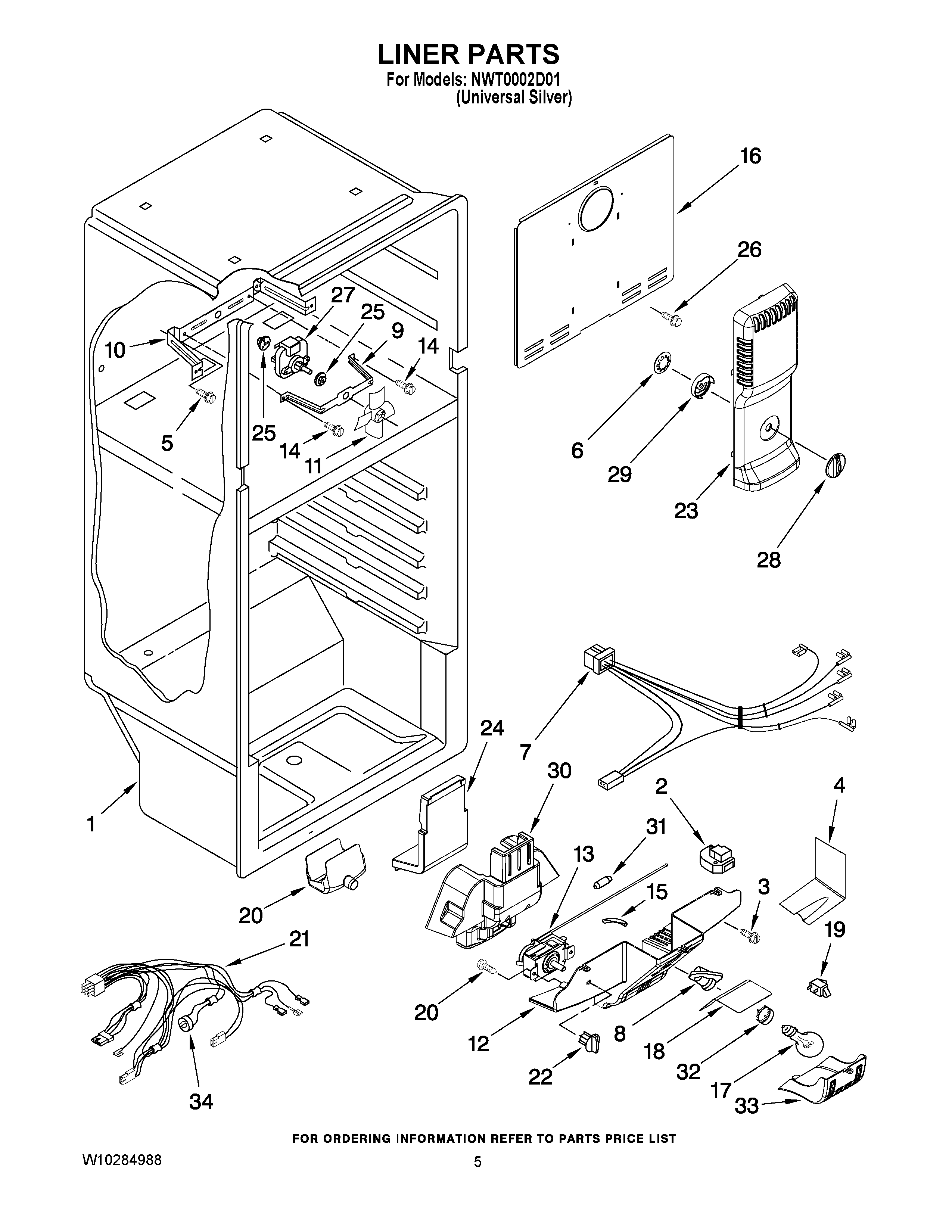

NWT0002D01 03 – LINER PARTS

NWT0002D01 03 – LINER PARTS

Written by

in

NWT0002D01 03 – LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Defrost Timer
3WP487353 Whirlpool Refrigerator Screw
4Shield, Timer
5WP489442 Whirlpool Refrigerator Screw
62211239 Whirlpool Refrigerator Nut
7W10245617 Whirlpool Wire Harness
84387478 Whirlpool Refrigerator Light Socket
9WPW10180172 Whirlpool Refrigerator Bracket
10Fan Mounting Bracket
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2211031 Whirlpool Refrigerator Thermostat
14WP489399 Whirlpool Refrigerator Screw
15WP2196003 Whirlpool Refrigerator Bar Riser
16Cover, Evaporator
17RANGE ONLY 40W 120V APPL BULB
182210832 Whirlpool Refrigerator Light Lens
19W11384469 Whirlpool Door Switch
20Drain Cup
21W10164677 Whirlpool Refrigerator Wire Harness
22Control Knob
23AIR TOWER
24Air Diffuser, Rear
25WP2264462 Whirlpool Refrigerator Grommet
26WP489478 Whirlpool Refrigerator Screw
27WPW10188389 Whirlpool Evaporator Fan Motor
282211237 Whirlpool Refrigerator Thermal Knob
29Damper, Freezer Control
30Air Diffuser (Front)
31Weight, Thermal
32WP2175210 Whirlpool Refrigerator Shroud
33Cover, Light
34WPW10225581 Whirlpool Refrigerator Defrost Thermostat
