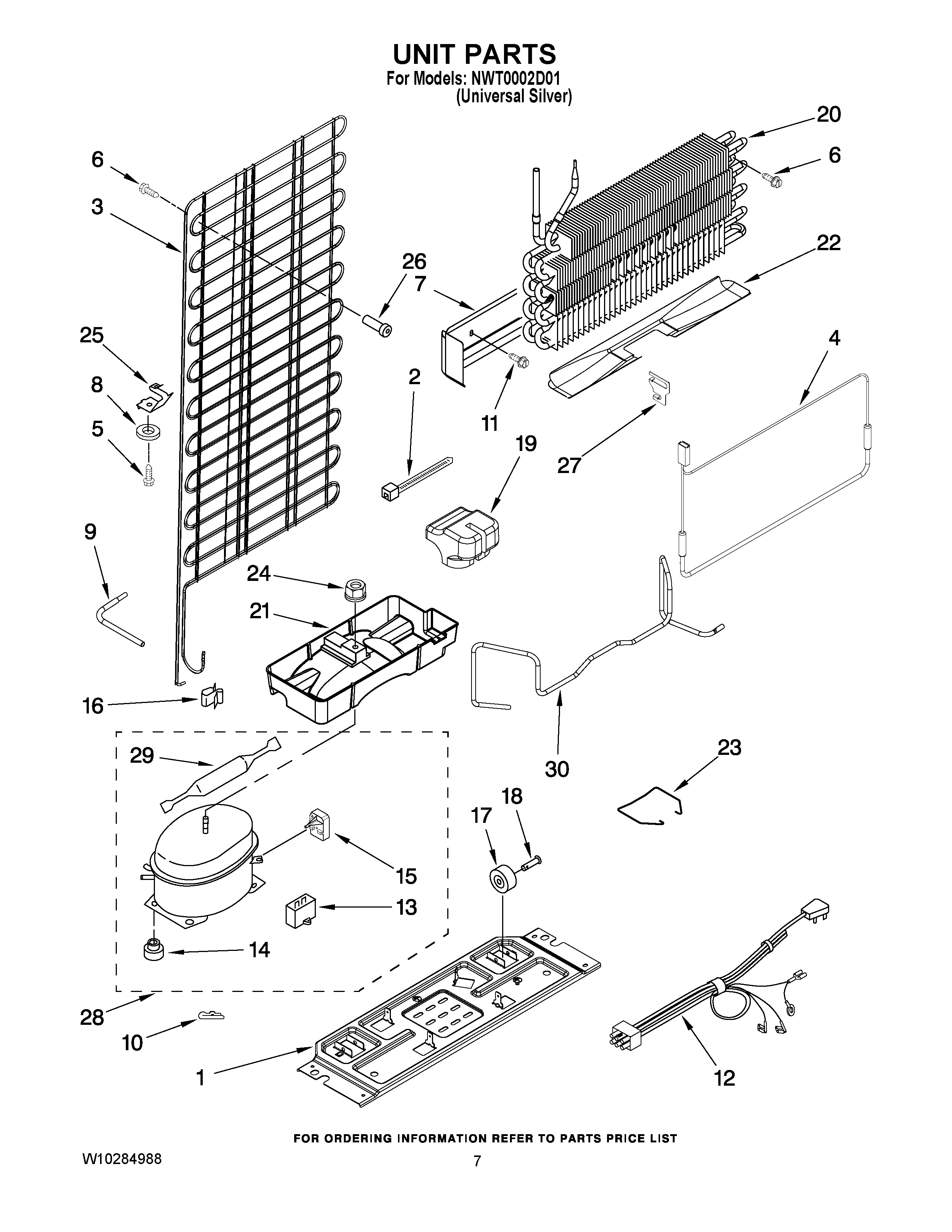

NWT0002D01 04 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	2211011 Whirlpool Support
2	WPW10339879 Whirlpool Wire Tie
3	Condenser
4	WP2210895 Whirlpool Refrigerator Heater
6	Screw
7	Heat Shield
8	8526417 Whirlpool Washer
9	2202074 Whirlpool Tube
10	Clip, Compressor
11	WP489442 Whirlpool Refrigerator Screw
12	WIRE ASSY, UNIT
13	WP2262343 Whirlpool Refrigerator/Freezer Capacitor
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP2264424 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	Wedge, Evaporator
20	Evaporator Assy.
21	Evaporator Tray
22	2265095 Whirlpool Refrigerator Drip Pan
23	2212996 Whirlpool Refrigerator Retainer
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258451 Whirlpool Spacer
27	2211075 Whirlpool Bracket
28	W10237328 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	2262342 Whirlpool Refrigerator Tube
