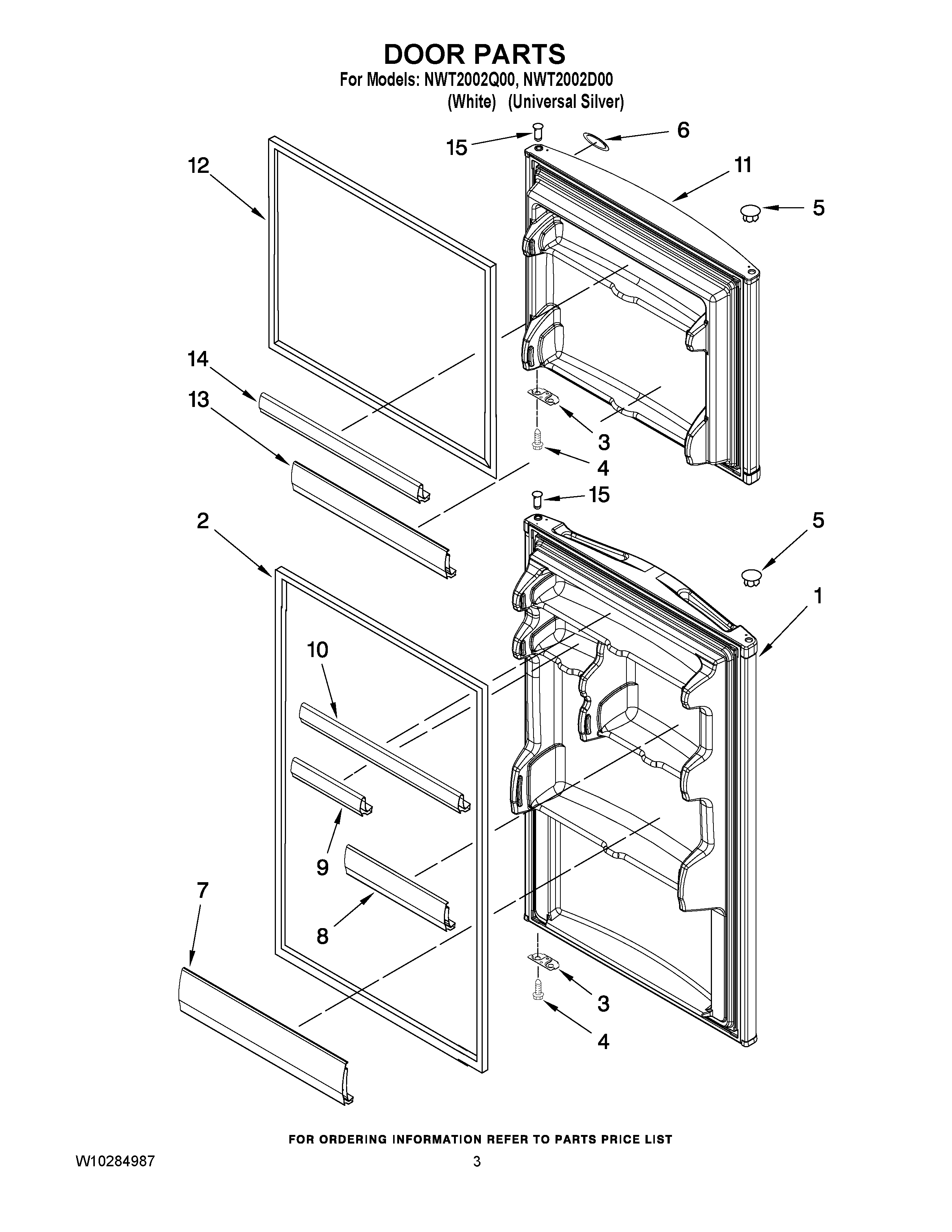

NWT2002D00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (WHITE)
1	REFRIGERATOR DOOR (INCLUDES ILLUS. 2,3,4 5 & 15) (UNIVERSAL SILVER)
2	GASKET, DOOR (RC)
3	Bracket, Door Stop
4	WP488921 Whirlpool Refrigerator Screw
5	HOLE PLUG (4) (UNIVERSAL SILVER)
5	Hole Plug (White)
6	WP2213265 Whirlpool Refrigerator Nameplate
7	TRIM, DOOR SHELF (BOTTOM)
8	TRIM, DOOR SHELF (MIDDLE-RIGHT)
9	TRIM, DOOR SHELF (MIDDLE-LEFT)
10	TRIM, DOOR SHELF (TOP)
11	FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (UNIVERSAL SILVER)
11	FREEZER DOOR (INCLUDES ILLUS. 3,4,5 12 & 15) (WHITE)
12	GASKET, DOOR (FC) (MIST BEIGE)
13	TRIM, DOOR SHELF (BOTTOM)
14	TRIM, DOOR SHELF (TOP)
15	Thimble
