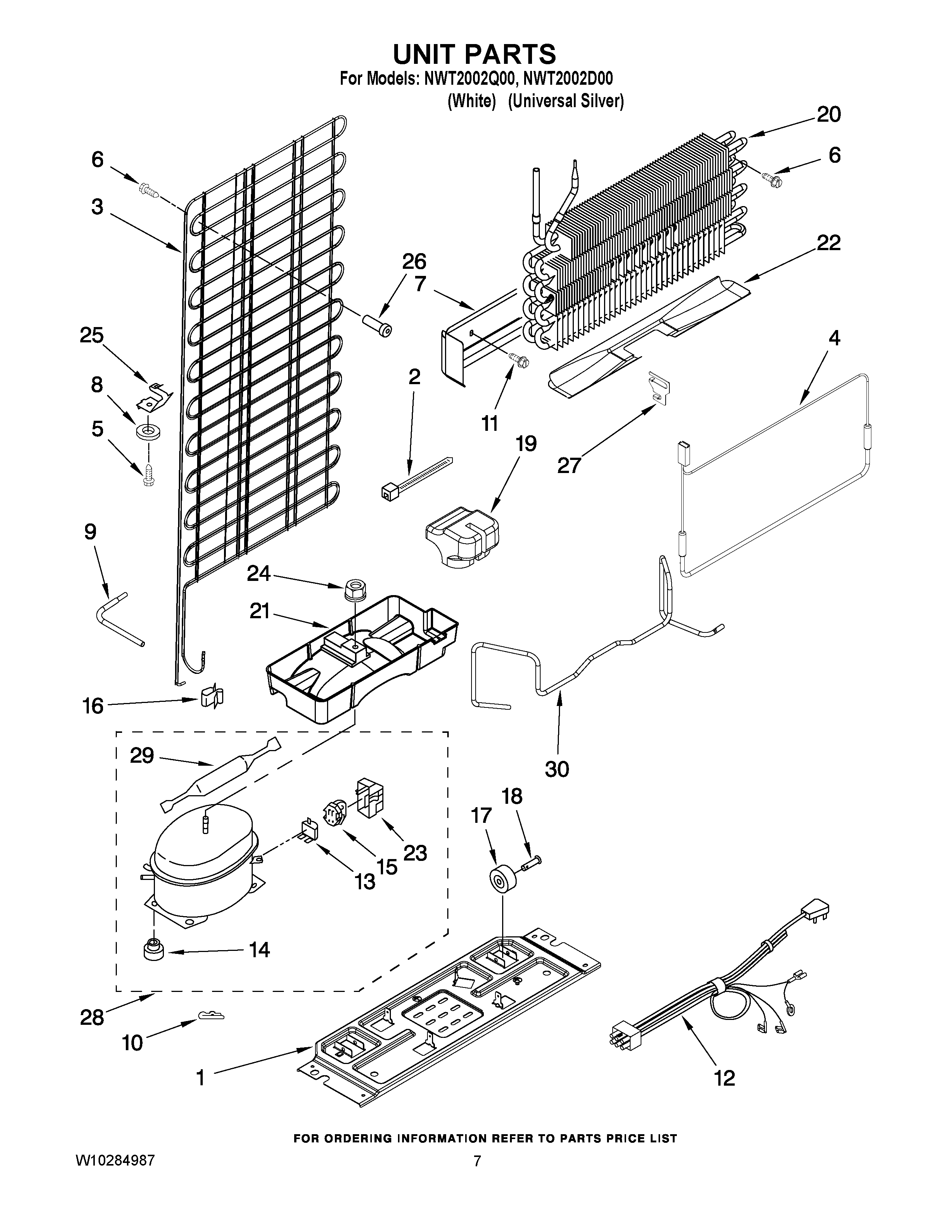

NWT2002D00 04 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
1	2211011 Whirlpool Support
2	WPW10339879 Whirlpool Wire Tie
3	Condenser
4	WP2210895 Whirlpool Refrigerator Heater
6	Screw
7	Heat Shield
8	8526417 Whirlpool Washer
9	Tube, Process
10	Clip, Compressor
11	WP489442 Whirlpool Refrigerator Screw
12	WIRE ASSY, UNIT
13	2264602 Whirlpool Refrigerator Overload
14	WP2163786 Whirlpool Refrigerator Grommet
15	2264603 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	Wedge, Evaporator
20	Evaporator Assy.
21	Evaporator Tray
22	2265095 Whirlpool Refrigerator Drip Pan
23	WP2162358 Whirlpool Refrigerator Terminal Cover
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258451 Whirlpool Spacer
27	2211075 Whirlpool Bracket
28	Compressor (Includes Illus. 12,13,14 15 & 29)
29	W10843121 Whirlpool Refrigerator Tube
30	Tube, Discharge
