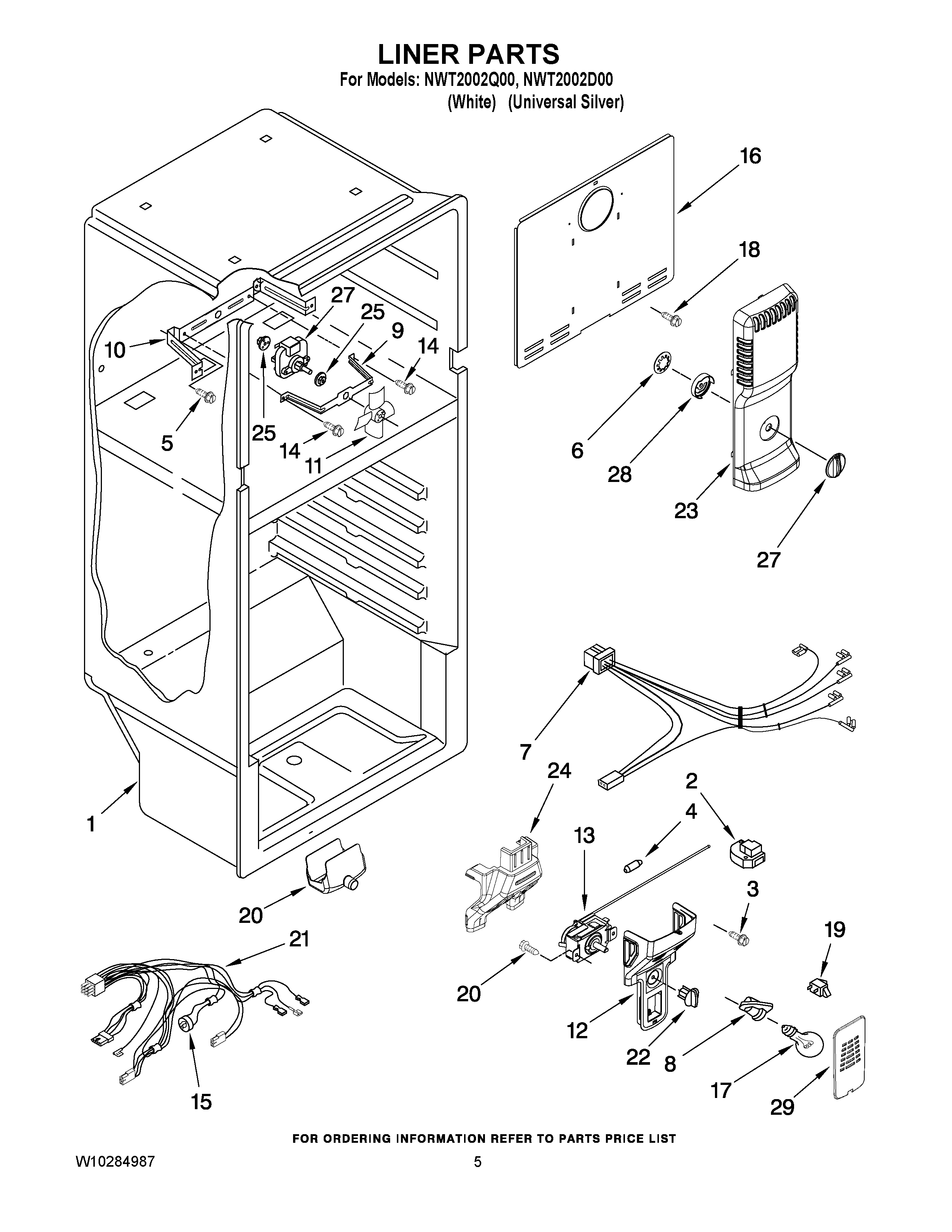

NWT2002Q00 03 – LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Defrost Timer
3	WP487353 Whirlpool Refrigerator Screw
4	Weight, Thermal
5	WP489442 Whirlpool Refrigerator Screw
6	2211239 Whirlpool Refrigerator Nut
7	WIRE ASSEMBLY, CONTROL BOX
8	W10545295 Whirlpool Refrigerator Socket
9	WPW10180172 Whirlpool Refrigerator Bracket
10	Fan Mounting Bracket
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	CONTROL BOX
13	THERMOSTAT
14	WP489399 Whirlpool Refrigerator Screw
15	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
16	Cover, Evaporator
17	Light Bulb
18	WP489478 Whirlpool Refrigerator Screw
19	W11384469 Whirlpool Door Switch
20	Drain Cup
21	W10164677 Whirlpool Refrigerator Wire Harness
22	Control Knob
23	AIR TOWER
24	AIR DIFFUSER, REAR
25	WP2264462 Whirlpool Refrigerator Grommet
26	WPW10188389 Whirlpool Evaporator Fan Motor
27	2211237 Whirlpool Refrigerator Thermal Knob
28	Damper, Freezer Control
29	COVER, LIGHT
