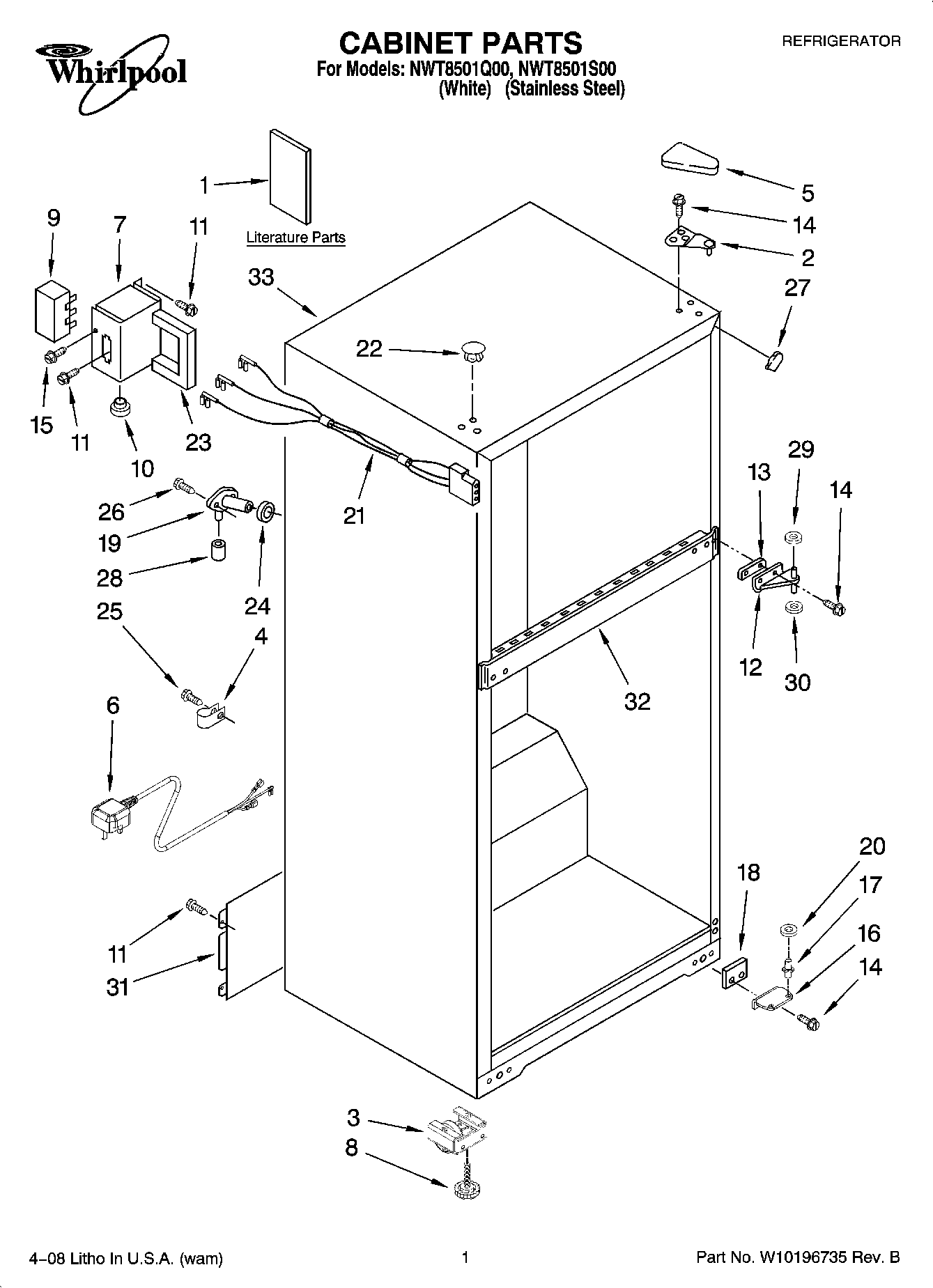

NWT8501Q00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WPW10142530 Whirlpool Refrigerator Cabinet Roller
4	489348 Whirlpool Refrigerator Tube Clamp
5	WP2213360 Whirlpool Refrigerator Cover
5	WP2213363 Whirlpool Refrigerator Cover
6	Service Cord
7	Enclosure, Terminal Block
8	WPW10133299 Whirlpool Refrigerator Screw
9	Terminal Block
10	Bushing
12	Hinge, Center (Black)
12	Hinge, Center (White)
13	2215385 Whirlpool Refrigerator Shim
13	2166043 Whirlpool Refrigerator Shim
14	WP489497 Whirlpool Screw
15	WP489399 Whirlpool Refrigerator Screw
16	WP2325482 Whirlpool Bottom Hinge
17	WP2325483 Whirlpool Hinge Pin
18	WP2201567 Whirlpool Hinge Shim
19	WP2196157 Whirlpool Fill Tube
20	WP487576 Whirlpool Washer
21	Wire Assembly
22	WP2151652 Whirlpool Refrigerator Button Plug
22	WP2183998 Whirlpool Refrigerator Button Plug
23	Gasket
24	WP1106508 Whirlpool Refrigerator Gasket
25	WP489442 Whirlpool Refrigerator Screw
26	WP488729 Whirlpool Refrigerator Door Screw
27	W11500943 Whirlpool Refrigerator Filler
27	W10859322 Whirlpool Refrigerator Filler
28	WP487996 Whirlpool Refrigerator Cap Tube
29	WP489467 Whirlpool Hinge Shim
30	WP487802 Whirlpool Refrigerator Washer
31	2213762 Whirlpool Refrigerator Unit Cover
32	Rail, Center (Not Serviced)
33	Cabinet, (Not A Serviceable Part)
