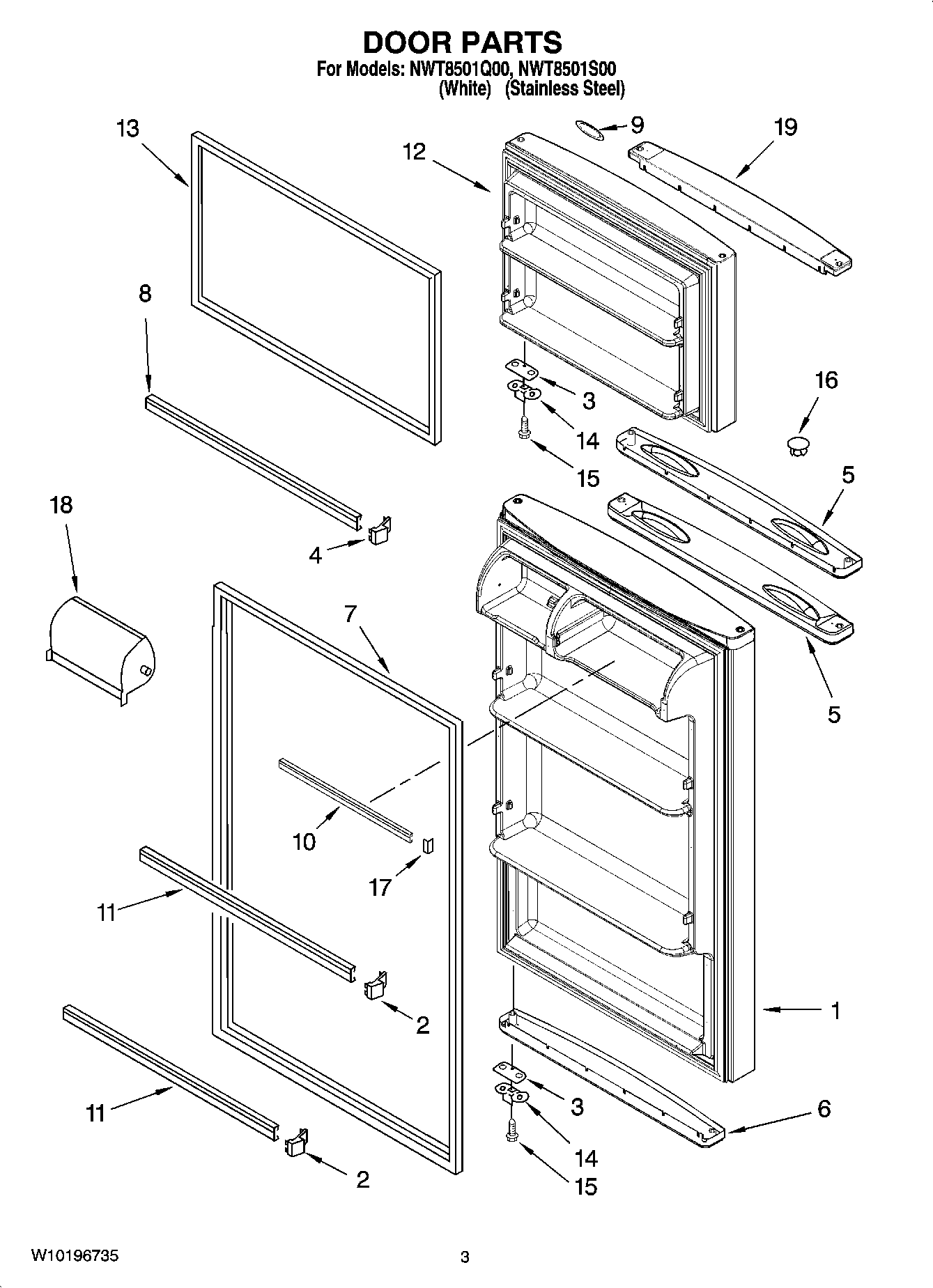

NWT8501Q00 02 – DOOR PARTSadmin2025-04-26T12:46:44+00:00NWT8501Q00 02 – DOOR PARTS ProductsPositionProduct1Refrigerator Door (Includes Illus. 5,6 & 9) (White)1Refrigerator Door (Includes Illus. 9,18 & 19)2ENDCAP3WP2258681W Whirlpool Refrigerator Shim4WP2156003 Whirlpool Refrigerator Door Shelf End Cap52265645W Whirlpool Refrigerator Handle5Endcap, Handle (Refrigerator)6Endcap, Bottom (White)6End Cap-Bottom7WP2319264T Whirlpool Door Gasket7WP2319264B Whirlpool Door Gasket8Trim, Door (2)9WP2213265 Whirlpool Refrigerator Nameplate10Trim, Door Shelf11Trim, Door122316367W Whirlpool Refrigerator DOR-FIP WH (DROP SHIP)12Freezer Door (Includes Illus. 15,20 & 21)13WP2319263T Whirlpool Refrigerator FIP Gasket13WP2319263B Whirlpool Refrigerator Black Door Gasket14W11745278 Whirlpool Bracket15SCREW16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug16WP2212651 Whirlpool Refrigerator Button Plug17ENDCAP-TRM18Compartment Door192265644W Whirlpool Refrigerator Door Trim192252863 Whirlpool Refrigerator Door Trim
