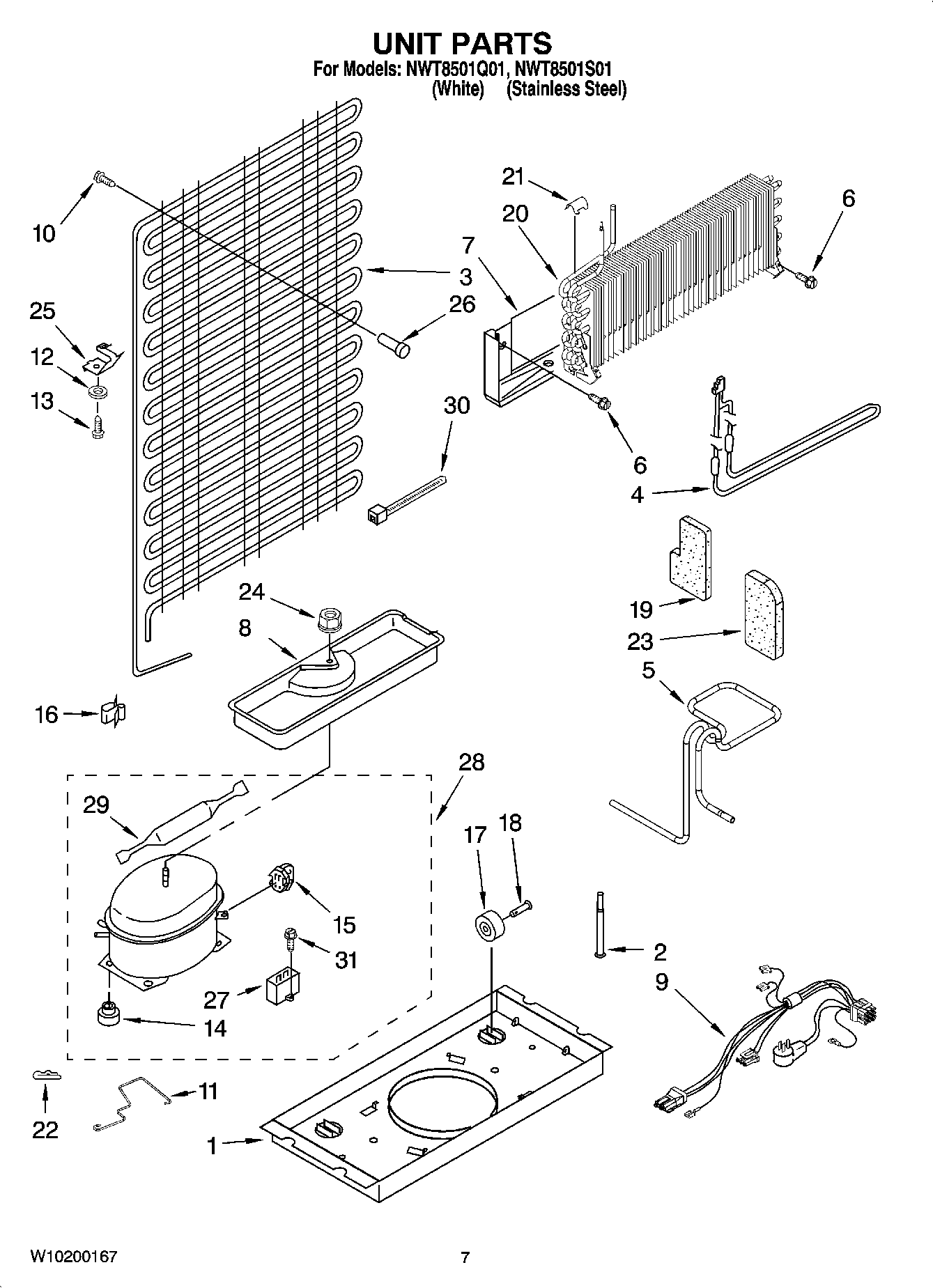

NWT8501Q01 04 – UNIT PARTS

Products

Position	Product
	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (5/8“)
	VALVE, ACCESS (1/2“)
1	WPW10222451 Whirlpool Refrigerator Support
2	W11661102 Whirlpool Tube
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2167357 Whirlpool Refrigerator Heater
5	Tube, Discharge (Incl. Pre Cooler)
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Tray, Evaporator
9	Wire Assy. Unit
11	Retainer
12	8526417 Whirlpool Washer
13	Screw
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	876811 Whirlpool Grommet
15	2321301 Whirlpool Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	WP2264756 Whirlpool Refrigerator Rivet
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	Clip, Compressor
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	2321245 Whirlpool Refrigerator Capacitor
28	W10170300 Whirlpool Compressor
29	W10843121 Whirlpool Refrigerator Tube
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	SCREW
