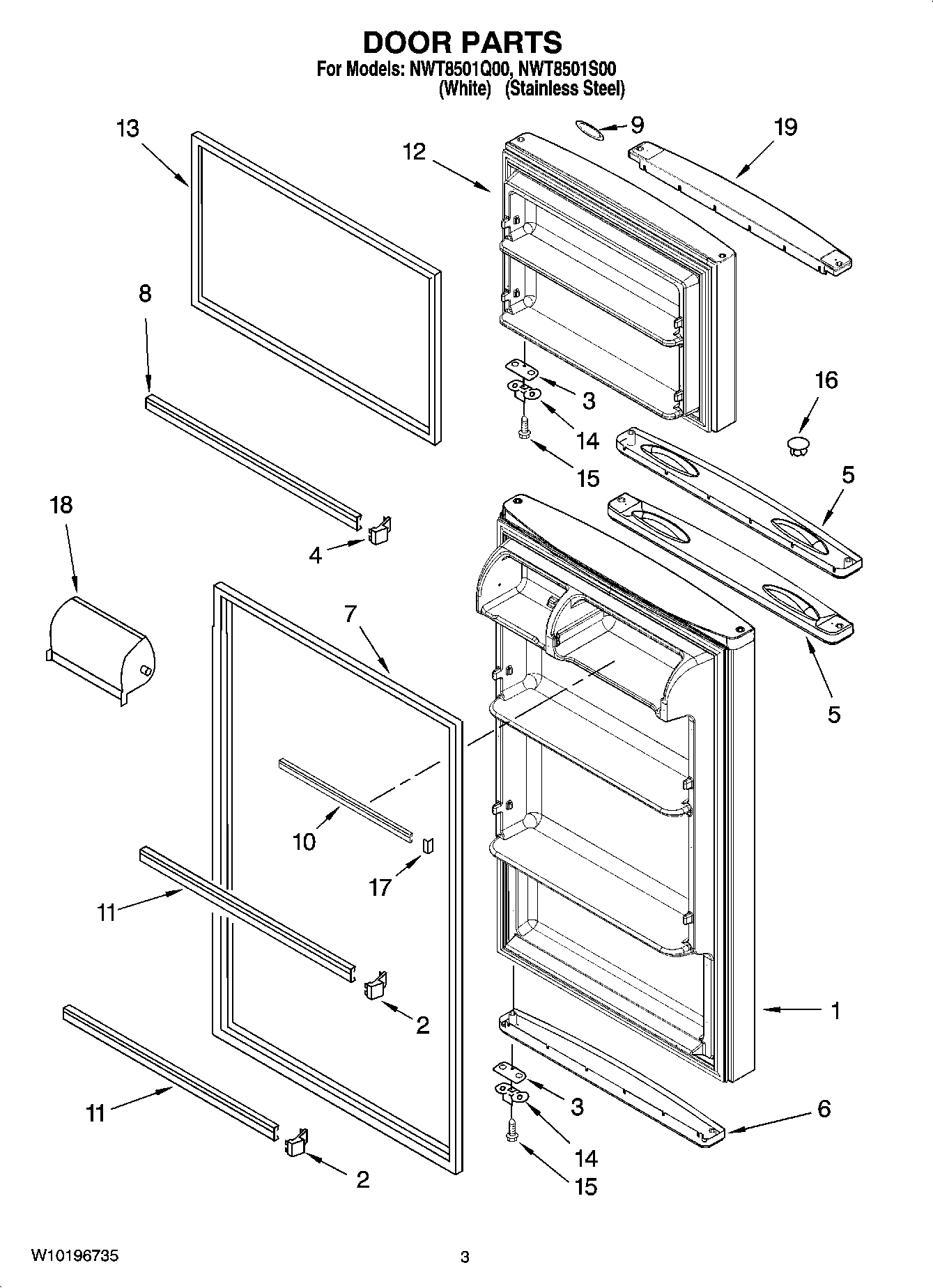

NWT8501S00 02 – DOOR PARTS

NWT8501S00 02 – DOOR PARTS

Written by

in

NWT8501S00 02 – DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Illus. 5,6 & 9) (White)
1Refrigerator Door (Includes Illus. 9,18 & 19)
2ENDCAP
3WP2258681W Whirlpool Refrigerator Shim
4WP2156003 Whirlpool Refrigerator Door Shelf End Cap
52265645W Whirlpool Refrigerator Handle
5Endcap, Handle (Refrigerator)
6Endcap, Bottom (White)
6End Cap-Bottom
7WP2319264T Whirlpool Door Gasket
7WP2319264B Whirlpool Door Gasket
8Trim, Door (2)
9WP2213265 Whirlpool Refrigerator Nameplate
10Trim, Door Shelf
11Trim, Door
122316367W Whirlpool Refrigerator DOR-FIP WH (DROP SHIP)
12Freezer Door (Includes Illus. 15,20 & 21)
13WP2319263T Whirlpool Refrigerator FIP Gasket
13WP2319263B Whirlpool Refrigerator Black Door Gasket
14W11745278 Whirlpool Bracket
15SCREW
16WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
16WP2212651 Whirlpool Refrigerator Button Plug
17ENDCAP-TRM
18Compartment Door
192265644W Whirlpool Refrigerator Door Trim
192252863 Whirlpool Refrigerator Door Trim
