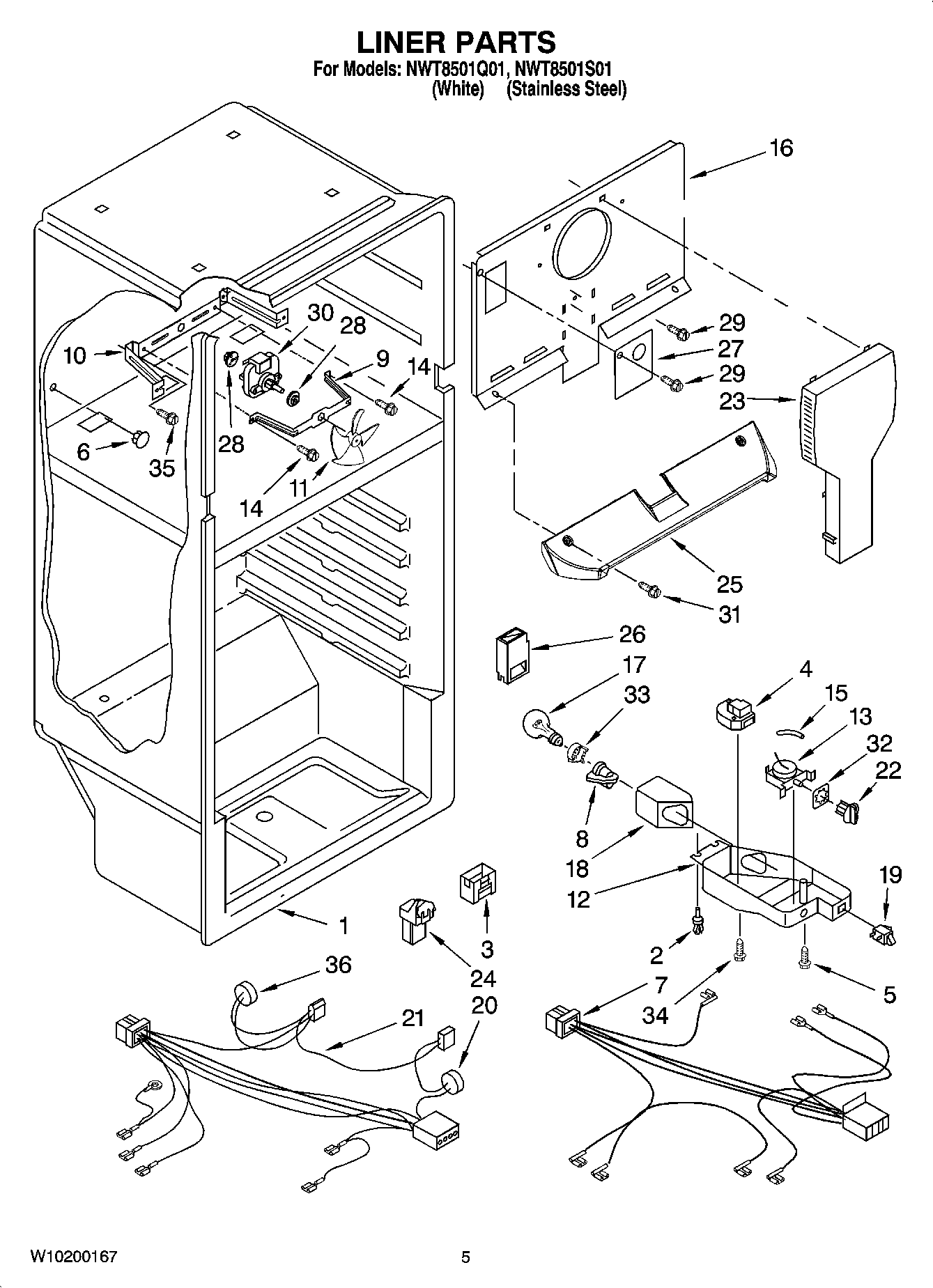

NWT8501S01 03 – LINER PARTSadmin2025-04-26T12:46:53+00:00NWT8501S01 03 – LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2939962 Whirlpool Refrigerator Rivet3Cover, Air Diffuser4WP2188379 Whirlpool Refrigerator Defrost Timer5WP489174 Whirlpool Refrigerator Screw6WP941839 Whirlpool Refrigerator Button Plug72176927 Whirlpool Refrigerator Wire Harness84387478 Whirlpool Refrigerator Light Socket9WPW10180172 Whirlpool Refrigerator Bracket10Fan Mounting Bracket11Fan Blade12Control Box13WPW10511937 Whirlpool Thermostat Control14WP489399 Whirlpool Refrigerator Screw15WP2196003 Whirlpool Refrigerator Bar Riser16Cover-Evaporator17WP67002552 Whirlpool Refrigerator Light Bulb18W11034434 Whirlpool Refrigerator Light Lens19W11384469 Whirlpool Door Switch20WP4387500 Whirlpool Refrigerator Bimetallic Defrost21WIRING-FREEZER (INCLUDES ITEM 33)22WP2202885 Whirlpool Refrigerator Thermal Knob239790408 Whirlpool Refrigerator Air Tower24Hood And Foil Assembly25Cover, Air Return26Air Diffuser27WP2217784 Whirlpool Refrigerator Cover28WP2264462 Whirlpool Refrigerator Grommet29WP489478 Whirlpool Refrigerator Screw30WP2201215 Whirlpool Refrigerator Evaporator Motor31WP489474 Whirlpool Refrigerator Screw32RETAINER33WP2175210 Whirlpool Refrigerator Shroud34WP487353 Whirlpool Refrigerator Screw352256637 Whirlpool Refrigerator Screw36WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
