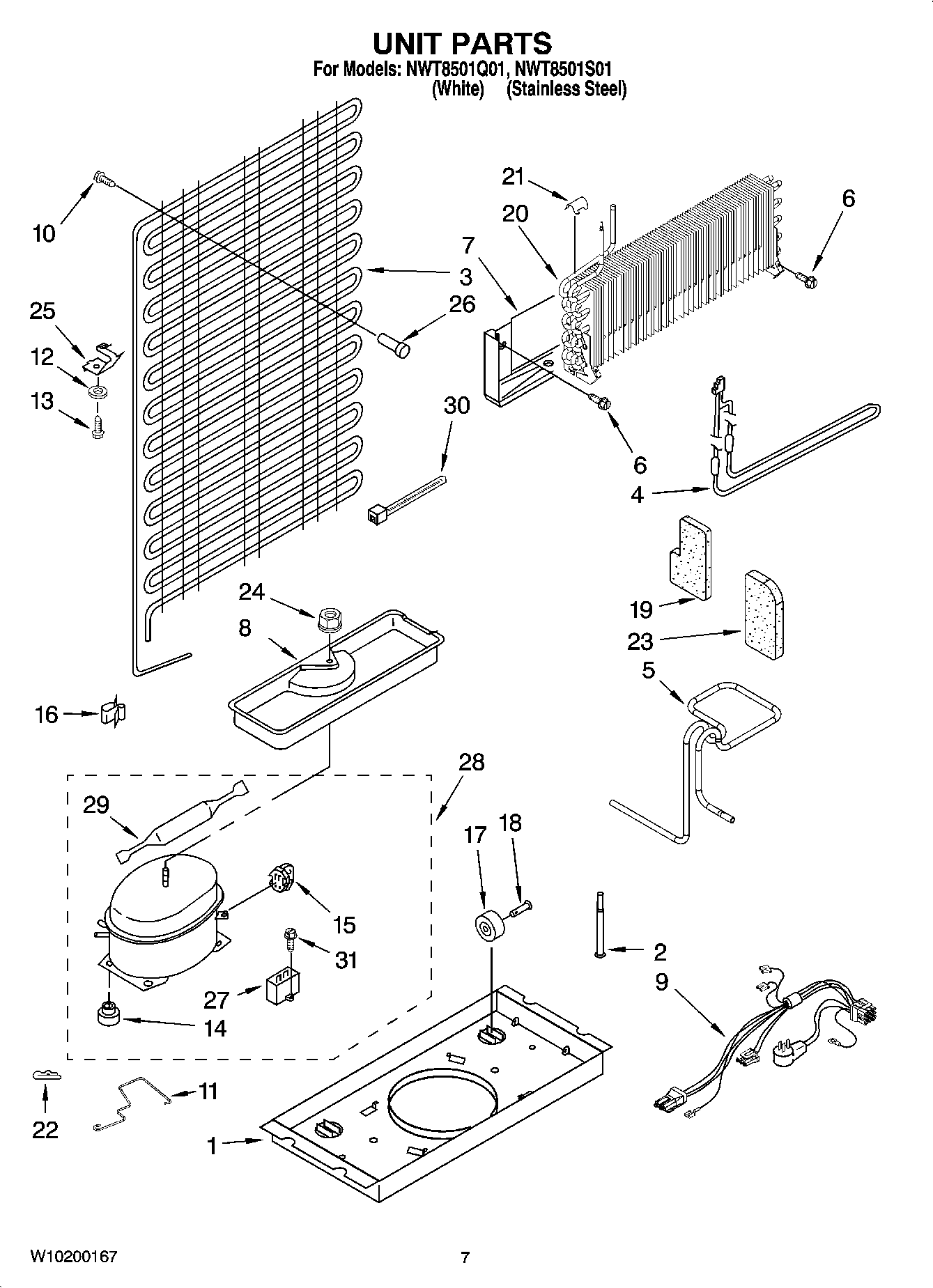

NWT8501S01 04 – UNIT PARTS

Products

PositionProduct
REFRIGERANT CHARGE 3.75 Ozs. (R134A)
WP978025 Whirlpool Refrigerator Valve
978030 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
VALVE, ACCESS (1/2“)
1WPW10222451 Whirlpool Refrigerator Support
2W11661102 Whirlpool Tube
3WP2252730 Whirlpool Refrigerator Condenser
4WP2167357 Whirlpool Refrigerator Heater
5Tube, Discharge (Incl. Pre Cooler)
6WP489442 Whirlpool Refrigerator Screw
7Heat Shield
8Tray, Evaporator
9Wire Assy. Unit
11Retainer
128526417 Whirlpool Washer
13Screw
14WP4387558 Whirlpool Refrigerator Compressor Grommet
14876811 Whirlpool Grommet
152321301 Whirlpool Start Device
16W10812038 Whirlpool Refrigerator Clip
17WPW10475495 Whirlpool Roller Assembly
18WP2264756 Whirlpool Refrigerator Rivet
198201619 Whirlpool Refrigerator Support Assembly
20WP2263920 Whirlpool Refrigerator Evaporator
219791833 Whirlpool Refrigerator Clip
22Clip, Compressor
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
262258452 Whirlpool Refrigerator Spacer
272321245 Whirlpool Refrigerator Capacitor
28W10170300 Whirlpool Compressor
29W10843121 Whirlpool Refrigerator Tube
29WPW10143759 Whirlpool Dryer Filter
30WPW10339879 Whirlpool Wire Tie
31SCREW
