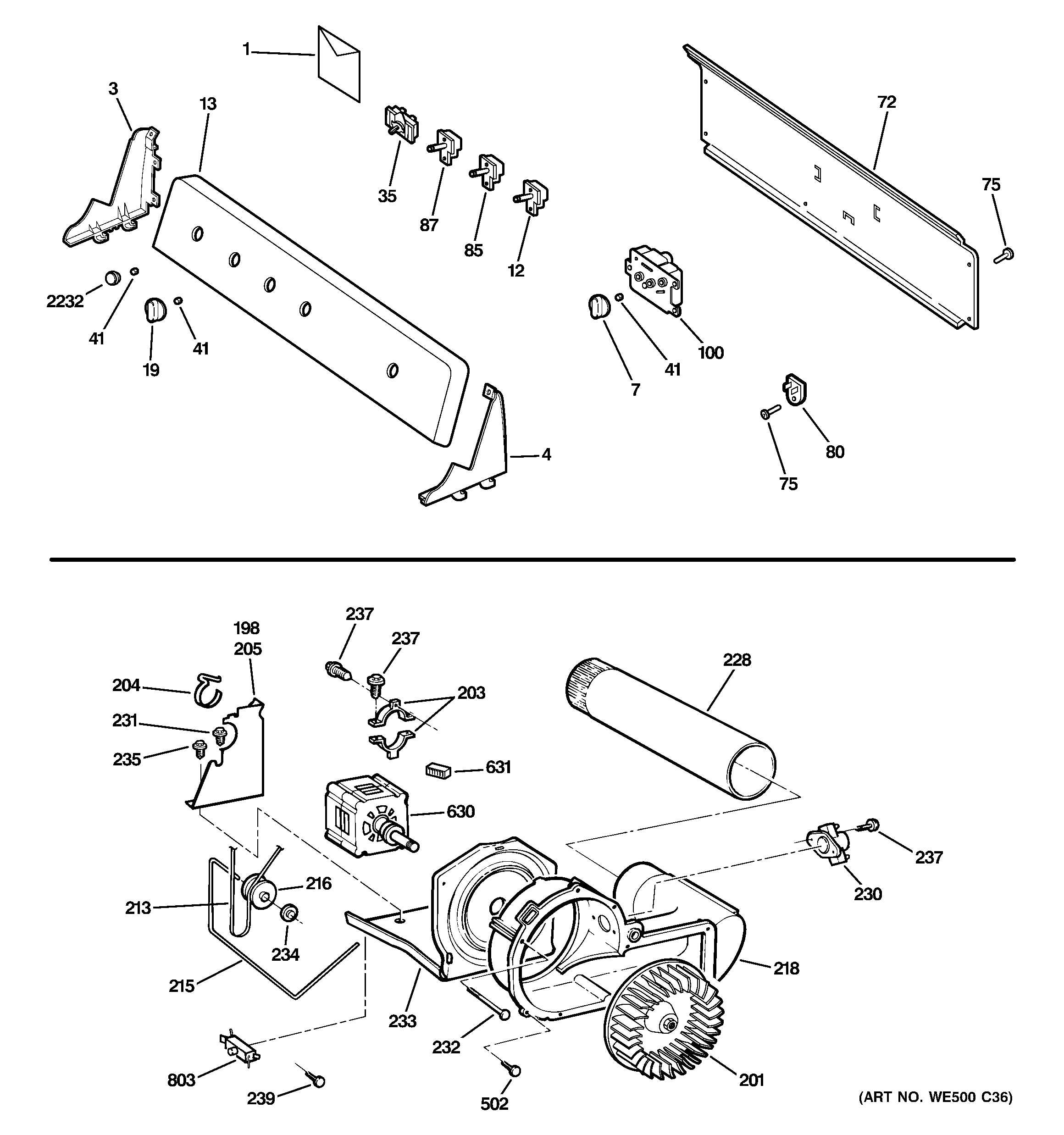

NWXR483EG5WW BACKSPLASH, BLOWER & MOTOR

NWXR483EG5WW BACKSPLASH, BLOWER & MOTOR

Written by

in

NWXR483EG5WW BACKSPLASH, BLOWER & MOTOR

Products

PositionProduct
1GEN 31-16135
1GEN 39-90300-1
1GEN 31-16144
4WE49X22294 GE Endcap Service Kit
7WE1M652 GE Washer White Timer Knob Assembly
12GEN WE4M368
13GEN WE19M1501
19KNOB & CLIP ASM
35PUSH TO START SWITCH
41GEN WE01X0980?
72WE19M1481 GE Rear Panel
75WE2M173 GE Screw
80WE4M255 GE Washer Resistor
85WE4M399 GE Rocker Switch
87WE4M411 GE Appliance Rotary Switch Zodiac 4 Temp
100WE04X20089 GE Washer Control Timer
198WE2M200 GE Ground Screw
201BLOWER WHEEL
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216PULLEY
218BLOWER HOUSING
218WE09X27636 GE Exhaust Blower Gasket
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE2M96?
235WE1M280 GE Screw
237WD02X10057 GE Dishwasher Screw 10-16 x 1
239WR2X9260 GE Refrigerator Screw
502WE2M174 GE Screw #10
630WE17X22217 GE Dryer Drive Motor with Pulley
631GEN WE1M650
803WD21X10261 GE Dishwasher Interlock Switch
2232WE1M659 GE Dryer Push-to-Start Button
