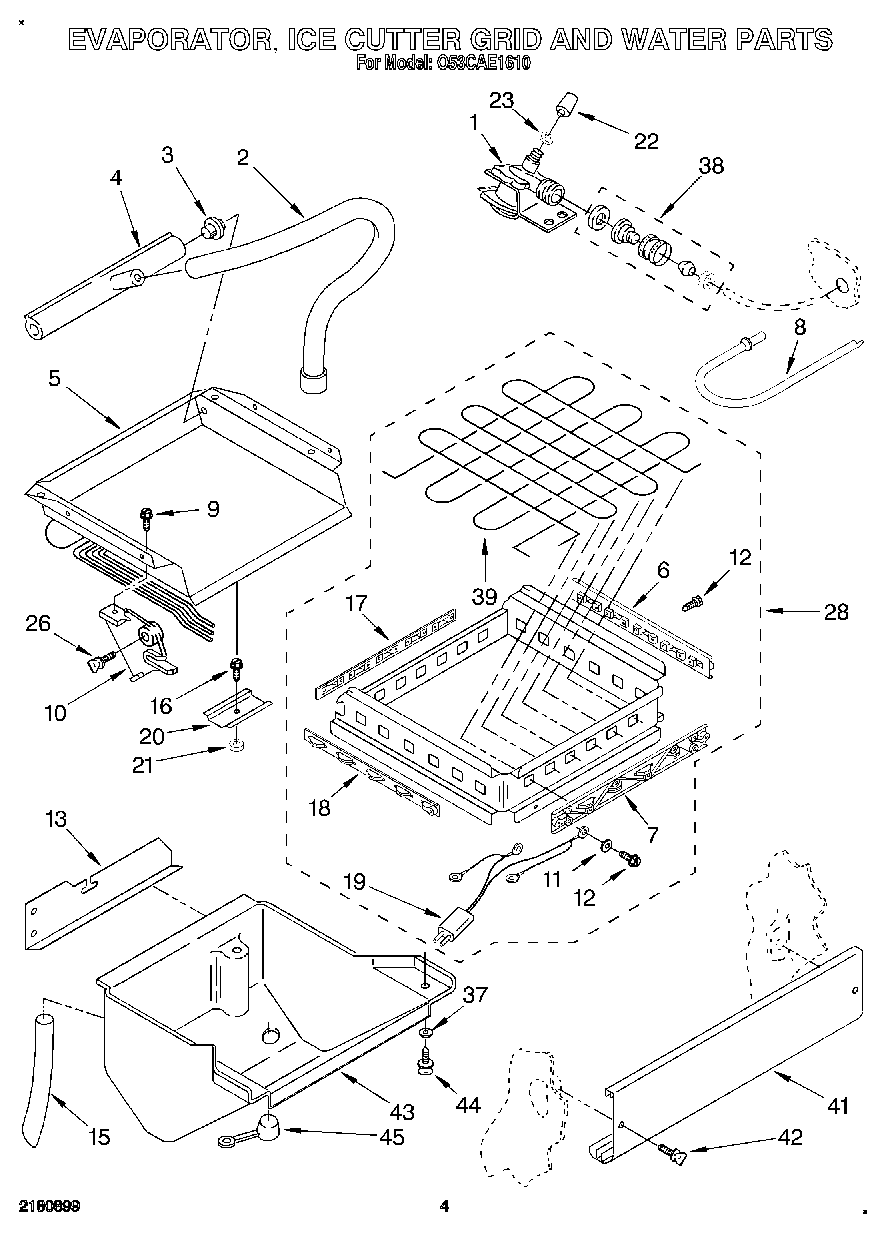

O53CAE1610 03 – EVAPORATOR, ICE CUTTER GRID AND WATER

Products

Position	Product
1	Valve, Water
2	Hose, Dispenser
3	Plug,
4	WPL 1129798
5	WPL 2180809
6	WPL 2174726
7	WPL 2174724
8	WPL 759213
9	SCREW
10	Bracket, Grid (2)
11	WPL 489013
12	WP489443 Whirlpool Refrigerator Screw
13	Shelf, Water Pan
15	WPL 759109
16	Screw, 10-32 x 1/2
17	WPL 2174725
18	WPL 2174727
19	WPL 2174750
20	Clamp
21	Nut, 10-32
22	4387491 Whirlpool Refrigerator Insert
23	WP627018 Whirlpool Refrigerator Nut
26	Screw, Thumb 10-32 x 1“
28	WPL 2174752
37	Washer, Latch
38	Adapter
39	GRID
41	Panel, Grid
42	Screw, Thumb 10-32 x 3/4 (2)
43	Pan, Water
44	Screw, 10 x 1/2
45	WPL 759043
