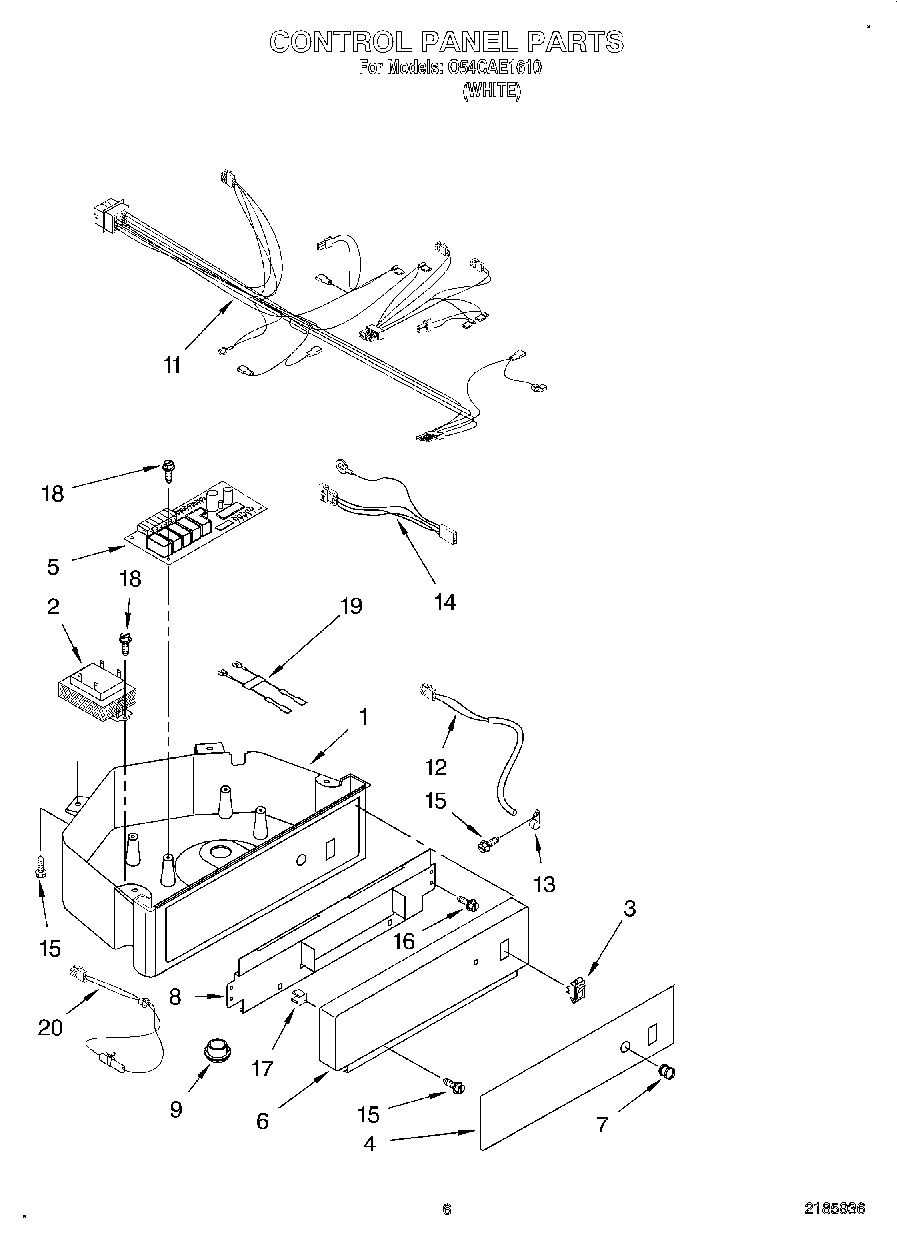

O54CAE1610 04 – CONTROL PANEL

O54CAE1610 04 – CONTROL PANEL

Written by

in

O54CAE1610 04 – CONTROL PANEL

Products

PositionProduct
1Box, Control
2Transformer
3Switch, Rocker
4Overlay
5P.C. Board
6Escutcheon
7Lens, LED
8Mounting Bracket, Escutcheon
9Plug, Dome
11Wiring Harness, Control Box
12WPW10503764 Whirlpool Refrigerator Thermistor
132185825 Whirlpool Refrigerator Clamp
14Wiring Harness, Main to Pump,
15WP3400884 Whirlpool Refrigerator Screw
16WP999367 Whirlpool Refrigerator Screw
17WP3400909 Whirlpool Refrigerator Nut
18WP489443 Whirlpool Refrigerator Screw
19Wiring Harness, Rocker Switch
20Thermister, Ice Control
