P2B918SEM1SS GAS & BURNER PARTS

P2B918SEM1SS GAS & BURNER PARTS

Written by

in

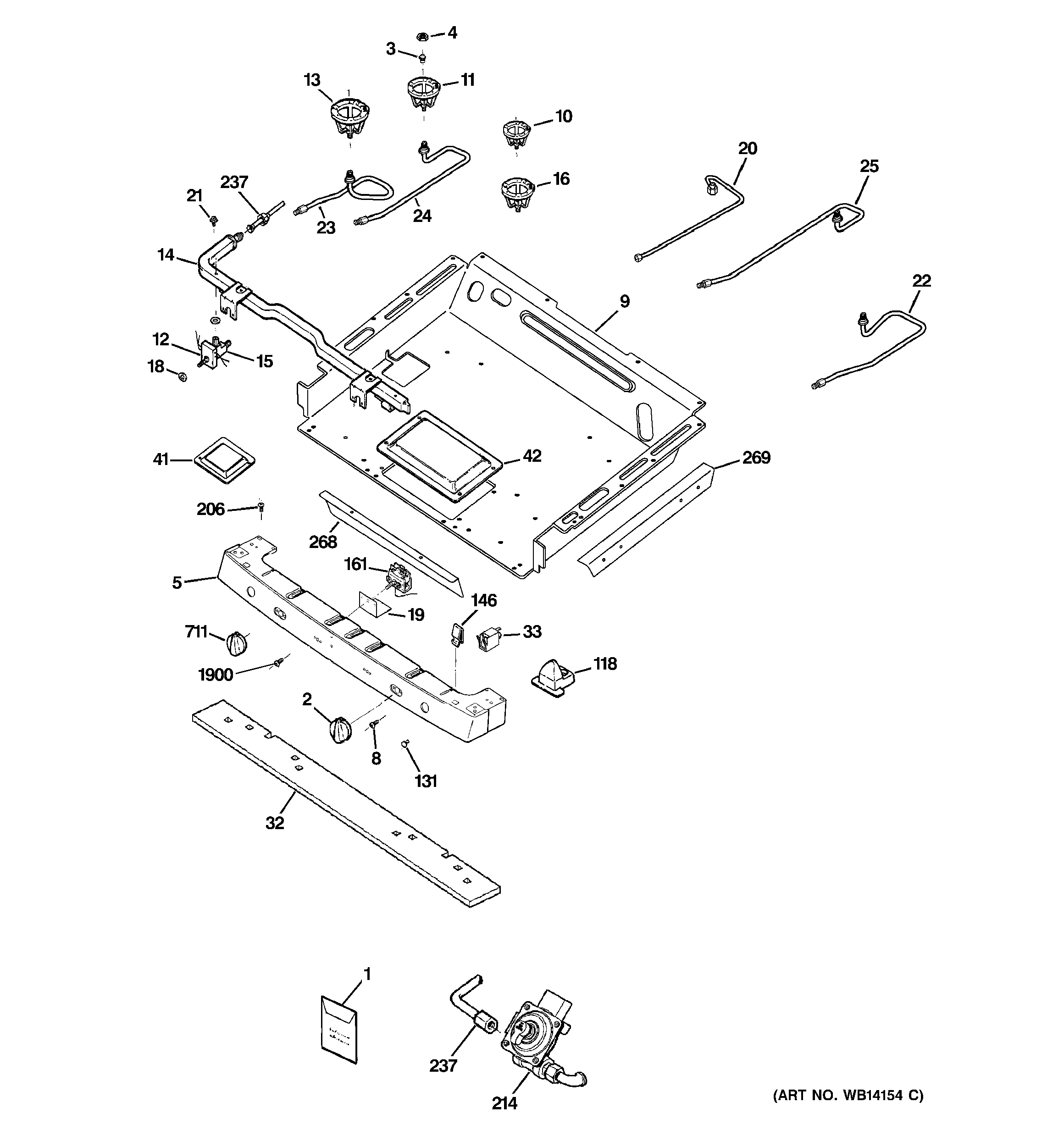

P2B918SEM1SS GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10365
1WB02T10111 GE Cleaner Stainless Steel
1GEN 31-21345
1GEN 49-85136
2WB03X43926 GE Burner Knob Kit
3GEN WB28K10216
3WB28K10214 GE Oven Orifice
3WB28K10215 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10288 GE Oven Orifice Spud
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10647
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10143
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10023
12GEN WB24K10024
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB02K10073 GE Oven Clip Capillary
14GEN WB28K10384
15WB21K10096 GE Oven Burner Valve 270
15WB21K10097 GE Oven Burner Valve
15WB21K10119 GE Oven Burner Valve 270
15WB21K10117 GE Oven Burner Valve
15WB21K10099 GE Oven Burner Valve
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
19WB37K10012 GE Thermostat Cover
20GEN WB28K10300
21WB01K10066 GE Oven Screw 8 HD 10-32
21WB01K10067 GE Oven Screw 1/4" HD 20
22GEN WB28K10424
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR NG
32INSULATION BURNER BOX
33WB25K10010 GE Oven Light Indicator Pilot
41WB63K10063 GE Burner Box Cover
42GEN WB63K0022
118GEN WB14K10005
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WR01X10065 GE Screw
214WB19K10018 GE Oven Pressure Regulator
237WB28X24772 GE Oven Gas Tube Connector
237GEN WB28K10477
268GEN WB35K10047
269GEN WB35K10048
711GEN WB03K10209
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
