P2B930DET1BB GAS & BURNER PARTS

P2B930DET1BB GAS & BURNER PARTS

Written by

in

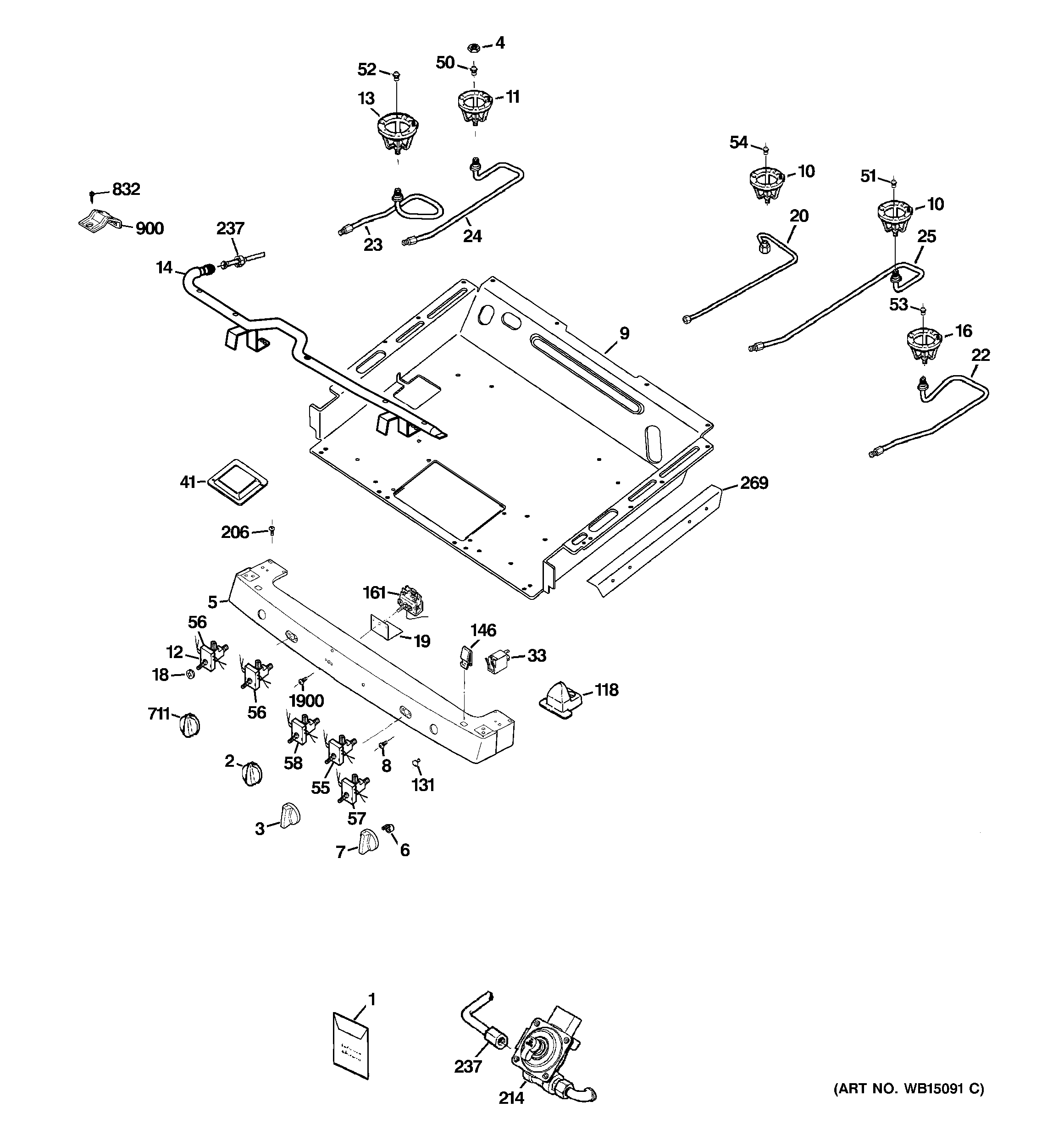

P2B930DET1BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-14977
1GEN 31-10773
1GEN 31-21397
1GEN 49-85182
1GEN 49-85188
1GEN WB28K10831
2KNOB COVER ASM
2GEN WB03K10321
3WB28K10023 GE Oven Orifice
3GEN WB28K10287
3GEN WB03K10322
3KNOB COVER ASM
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10922
5GEN WB36K10705
5GEN WB36K10946
5GEN WB36K10947
6GEN WB03K10320
7GEN WB03K10348
7GEN WB03K10327
7KNOB GE PROFILE ASM
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB01X1378
14GEN WB28K10760
14GEN WB28K10584
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
19WB37K10012 GE Thermostat Cover
20ORIFICE HOLDER ASM
20GEN WB28K10300
20GEN WB28K10596
22GEN WB28K10424
22ORIFICE HOLDER RF
23ORIFICE HOLDER LF
23WB28K10388 GE Oven Left Orifice Holder
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR NG
25ORIFICE HOLDER RR
33WB25K10010 GE Oven Light Indicator Pilot
41WB63K10063 GE Burner Box Cover
50WB28K10215 GE Oven Orifice
51GEN WB28K10732
51WB28K10031 GE Oven Orifice
52WB28K10214 GE Oven Orifice
52GEN WB28K10733
53GEN WB28K10216
53GEN WB28K10734
54WB28K10742 GE Orifice Spud
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
118GEN WB14K10005
118WB02K10104 GE Base Spacer
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10018 GE Oven Pressure Regulator
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
711GEN WB03K10334
711GEN WB03K10333
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
