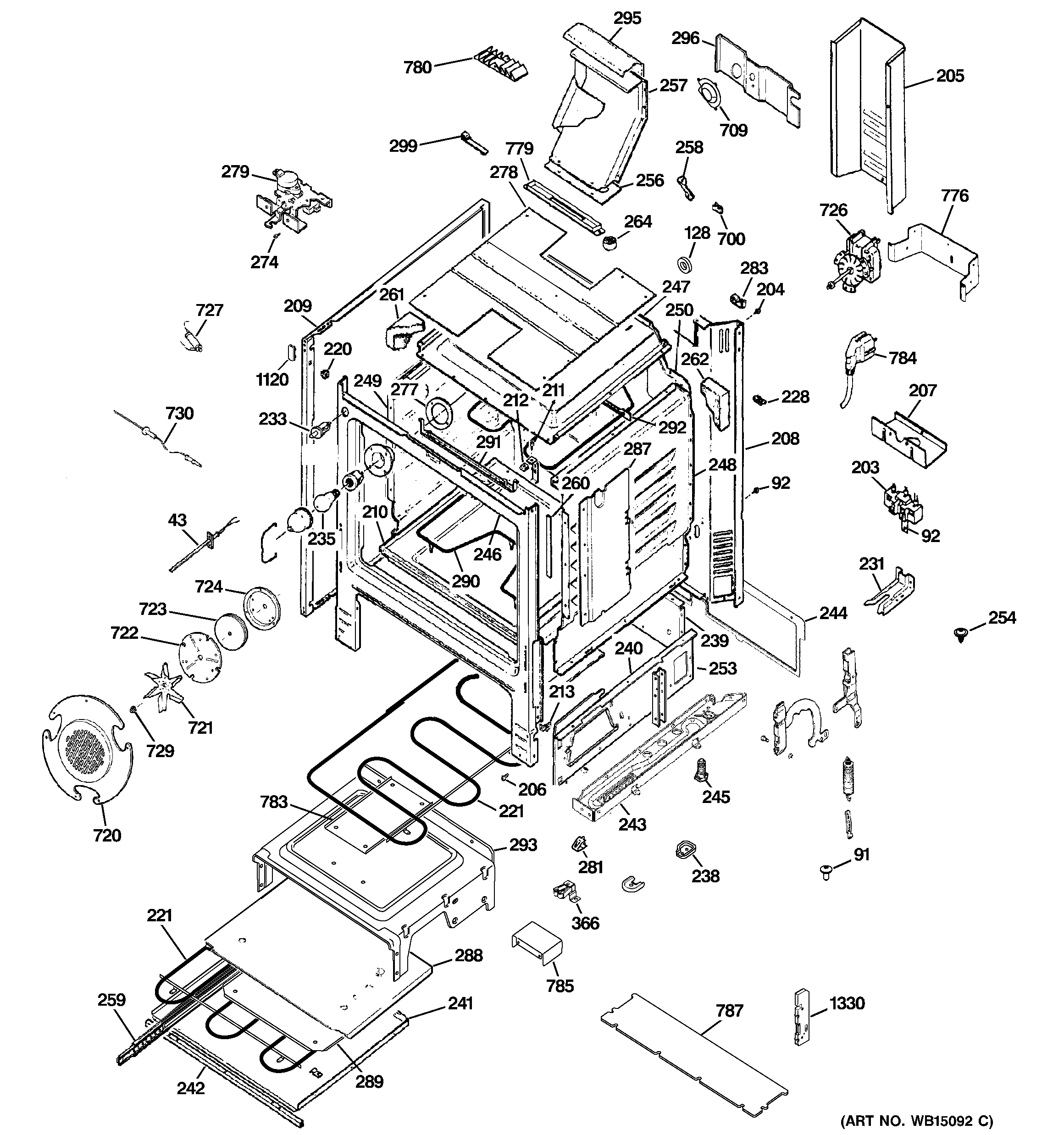

P2B930SET1SS BODY PARTS

P2B930SET1SS BODY PARTS

Written by

in

P2B930SET1SS BODY PARTS

Products

PositionProduct
43SENSOR ASM
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
92PLATE GROUND
128LAMP INSULATION
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
206WB01K10091 GE Oven Screw
207WB02K10052 GE Oven Mounting Bracket
208GEN WB63K10229
209WB63K10119 GE Oven Side Panel, Black
210WB35K10209 GE Oven Bottom
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB44K10014 GE Oven Top Heating Element
221WB44K10015 GE Oven Bottom Heating Element
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB02K10270 GE Spacer Base
239WB63K10203 GE Oven Rear Broil Panel
240WB63K10056 GE Oven Broil Side Panel
240WB63K10055 GE Oven Broil Side Panel
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243WB63K10232 GE Oven Support Base
243GEN WB63K10230
243WB63K10233 GE Oven Support Base
243WB63K10231 GE Base Support
244WB63K10167 GE Drawer Back
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10221
247WB53K10017 GE Top Panel
248GEN WB53K10056
249GEN WB53K10057
250GEN WB63K10224
253WB02K10108 GE Access Spring Cover
253WB02K10109 GE Access Cover Spring
254GEN WB01K0053
256WB35K10019 GE Vent Gasket
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10025 GE Oven Slide and Bearing Assembly
259WB39K10026 GE Oven Slide and Bearing Assembly
260WB04K10017 GE Oven Drawer Gasket Assembly
261GEN WB35K10159
262WB02K10354 GE Back Insulation
264WB35K10028 GE Oven Catalyst Support
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
278GEN WB53K10030
279GEN WB02K10358
279GEN WB02K10344
281WB02K10073 GE Oven Clip Capillary
283WB02X21679 GE Oven Wire Clip
287WB34K30 GE Radiation Guard
287GEN WB34K0031
288WB35K10054 GE Oven Top Insulation Drawer
289WB49K10011 GE Bottom Deflector
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
293WB63K10234 GE Top Drawer
295GEN WB35K10212
295GEN WB35K10036
295GEN WB35K10218
296WB34K13 GE Oven B Panel Cover
299GEN WB02K0038
366WB02K10110 GE Oven Catch
700RETAINER-INSULATION
709WB08K10018 GE Range Light Cover
720FAN COVER
720WB34K10142 GE Fan Cover Assembly
721GEN WB35K10095
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26K10004 GE Oven Convection Fan Motor
727WB34K10121 GE Oven Probe Receptacle & Harness
727PROBE COVER
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
776WB34K10054 GE Terminal Comp Guard
779GEN WB38K10004
780WB38K10022 GE Oven Diffuser Vent
783GEN WB49K10012
784WB18K10014 GE Oven Line Cord Kit
785WB34K10128 GE Heating Element Cover
787GEN WB3
