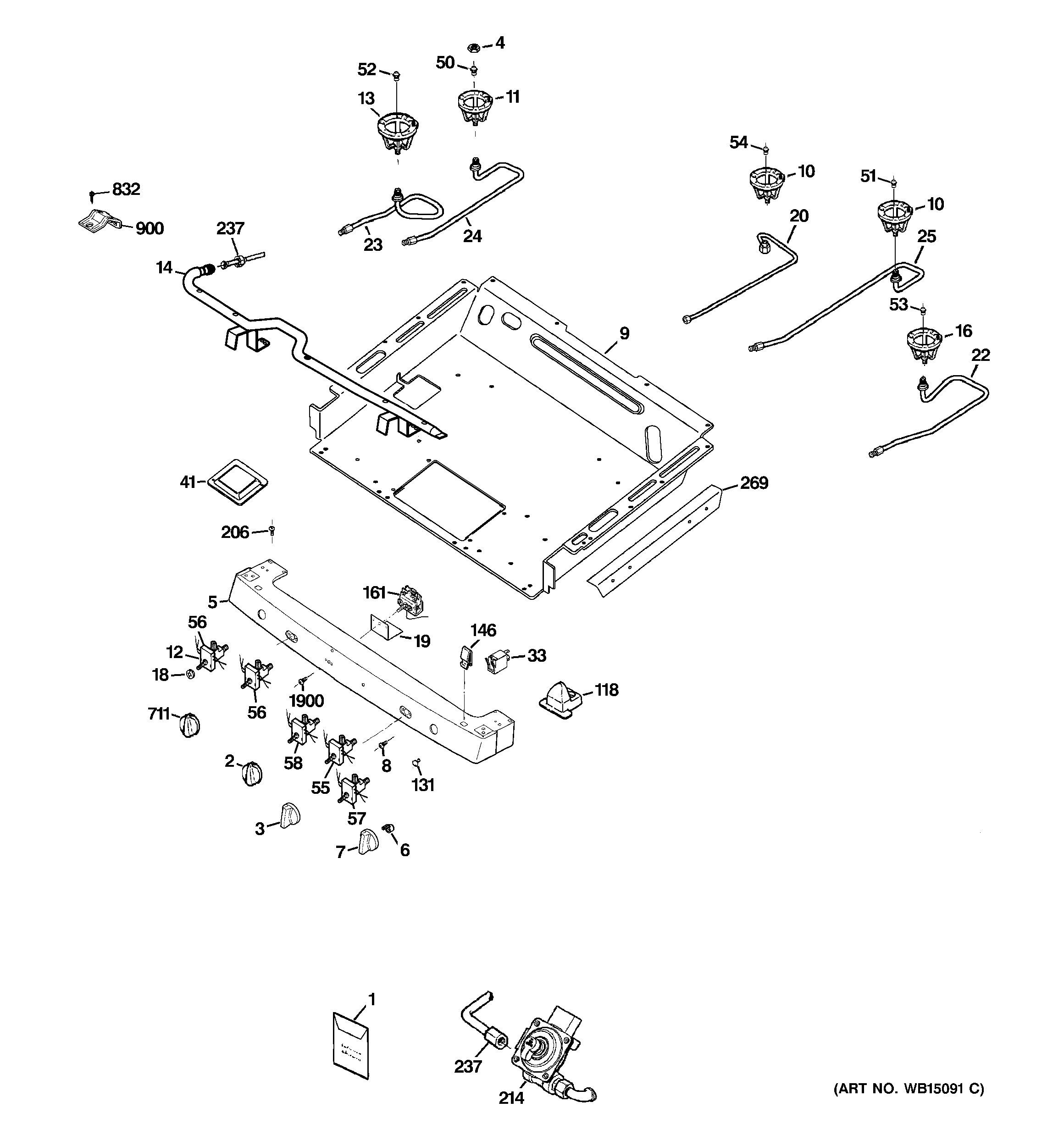

P2B930SET1SS GAS & BURNER PARTS

P2B930SET1SS GAS & BURNER PARTS

Written by

in

P2B930SET1SS GAS & BURNER PARTS

Products

PositionProduct
1WB02T10111 GE Cleaner Stainless Steel
1GEN 49-85188
1GEN 31-21397
2KNOB GE PROFILE ASM
3KNOB GE PROFILE ASM
3WB28K10023 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10936
6GEN WB03K10320
7KNOB GE PROFILE ASM
8WB01K10002 GE Oven Screw 8-32
9BOX BURNER SP
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12SWITCHES & HARNESS
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB01X1378
14GEN WB28K10760
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
19WB37K10012 GE Thermostat Cover
20ORIFICE HOLDER ASM
22ORIFICE HOLDER RF
23ORIFICE HOLDER LF
24ORIFICE HOLDER LR NG
25ORIFICE HOLDER RR
33WB25K10010 GE Oven Light Indicator Pilot
41WB63K10063 GE Burner Box Cover
50WB28K10215 GE Oven Orifice
51WB28K10031 GE Oven Orifice
51GEN WB28K10732
52GEN WB28K10733
52WB28K10214 GE Oven Orifice
53GEN WB28K10216
53GEN WB28K10734
54WB28K10742 GE Orifice Spud
55WB21K10113 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21K10117 GE Oven Burner Valve
58GEN WB21K10114
118GEN WB14K10005
118WB02K10104 GE Base Spacer
131WB25K10009 GE Oven Lens
146GEN WB02K0052
161WB20K10017 GE Oven Thermostat
206WB01K10091 GE Oven Screw
214WB19K10018 GE Oven Pressure Regulator
237WB28X24772 GE Oven Gas Tube Connector
269GEN WB35K10048
711GEN WB03K10335
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
