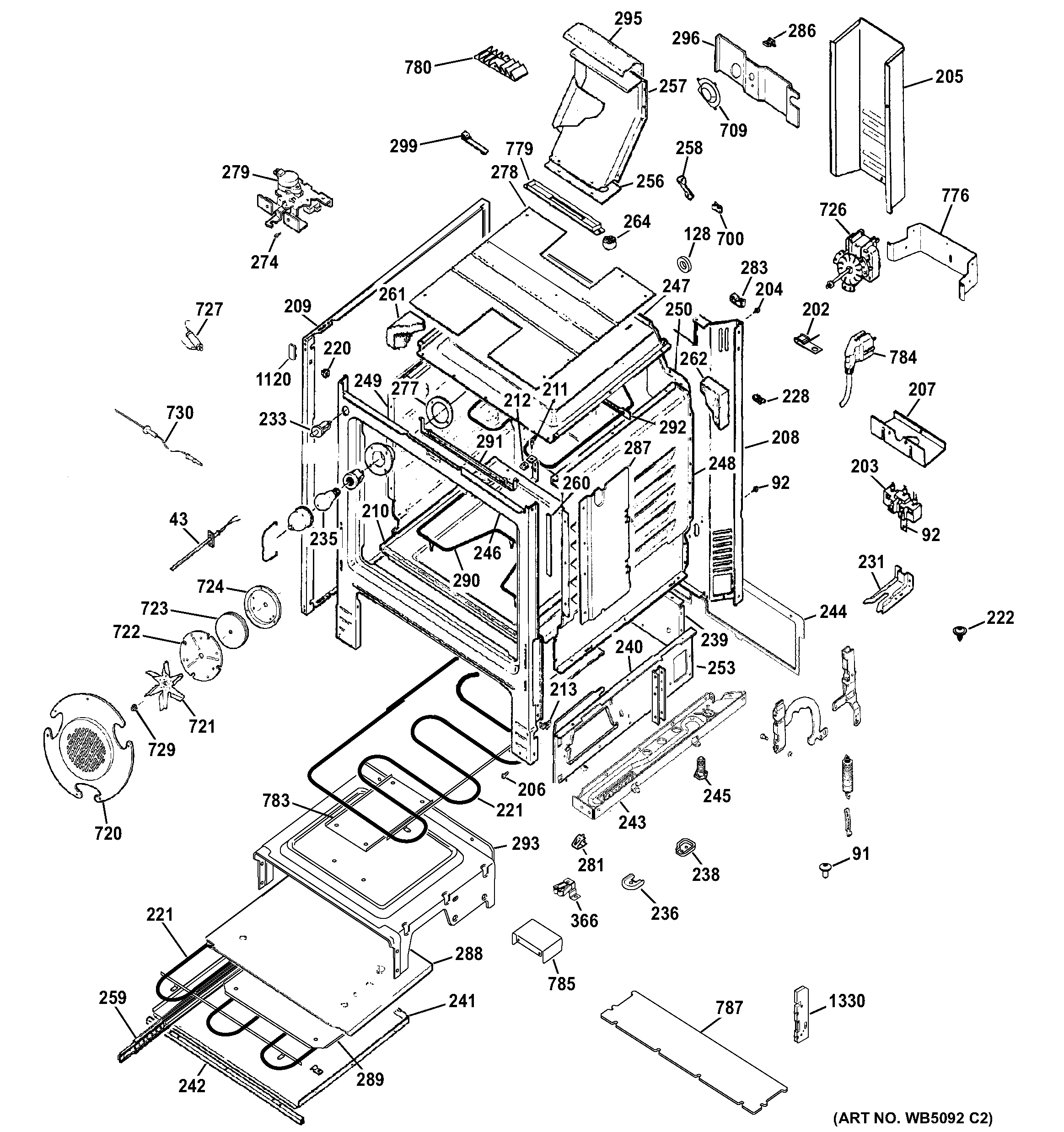

P2B930SET3SS BODY PARTS

P2B930SET3SS BODY PARTS

Written by

in

P2B930SET3SS BODY PARTS

Products

PositionProduct
43SENSOR ASM
91WB01T10008 GE Oven Screw 10-32
92PLATE GROUND
92WB1X1261 GE Oven Screw
128LAMP INSULATION
202WB2K36 GE Oven Clamp Cable
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10052 GE Oven Mounting Bracket
208GEN WB63K10229
209WB63K10119 GE Oven Side Panel, Black
210WB35K10209 GE Oven Bottom
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
220WB02K10294 GE Oven Grommet
221WB44K10015 GE Oven Bottom Heating Element
221WB44K10014 GE Oven Top Heating Element
222HINGE DOOR
222HINGE DOOR
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24K10068 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
236WB02K10104 GE Base Spacer
238WB02K10270 GE Spacer Base
239WB63K10203 GE Oven Rear Broil Panel
240WB63K10055 GE Oven Broil Side Panel
240WB63K10056 GE Oven Broil Side Panel
241WB63K10060 GE Rack Bottom Panel
242GEN WB63K0005
243SUPPORT BASE LEFT
243WB63K10256 GE Oven Support Base
244WB63K10167 GE Drawer Back
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10261
247WB53K10017 GE Top Panel
248SIDE OVEN
249SIDE OVEN
250GEN WB63K10224
253WB02K10108 GE Access Spring Cover
253WB02K10109 GE Access Cover Spring
256WB35K10019 GE Vent Gasket
257WB38K10008 GE Oven Vent Assembly
258WB38K2 GE Range Vent Brace
259WB39K10025 GE Oven Slide and Bearing Assembly
259WB39K10026 GE Oven Slide and Bearing Assembly
260WB04K10017 GE Oven Drawer Gasket Assembly
264WB35K10028 GE Oven Catalyst Support
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279GEN WB02K10358
281WB02K10073 GE Oven Clip Capillary
283WB02X21679 GE Oven Wire Clip
286WB02K10068 GE Wire Clip
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288WB35K10054 GE Oven Top Insulation Drawer
289WB49K10011 GE Bottom Deflector
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
295GEN WB35K10218
296WB34K13 GE Oven B Panel Cover
366WB02K10110 GE Oven Catch
709WB08K10018 GE Range Light Cover
720WB34K10142 GE Fan Cover Assembly
721WB2X8351 GE Oven Blade Fan
722WB34K10038 GE Oven Fan Cover Back
723WB35K10013 GE Fan Insulation
724WB02K10034 GE Range Fan Support
726WB26K10004 GE Oven Convection Fan Motor
727WB34K10121 GE Oven Probe Receptacle & Harness
727PROBE COVER
729WB02T10017 GE Oven Nut
730WB20T10024 GE Oven Thermistor Probe
776WB34K10054 GE Terminal Comp Guard
779GEN WB38K10004
780WB38K10022 GE Oven Diffuser Vent
783GEN WB49K10012
784WB18K10014 GE Oven Line Cord Kit
785WB34K10128 GE Heating Element Cover
787GEN WB35K10055
1120WB02K10178 GE Oven Bumper
1330WB10K10029 GE Oven Receiver Hinge
