P2B930SET3SS CONTROL PANEL & COOKTOP

P2B930SET3SS CONTROL PANEL & COOKTOP

Written by

in

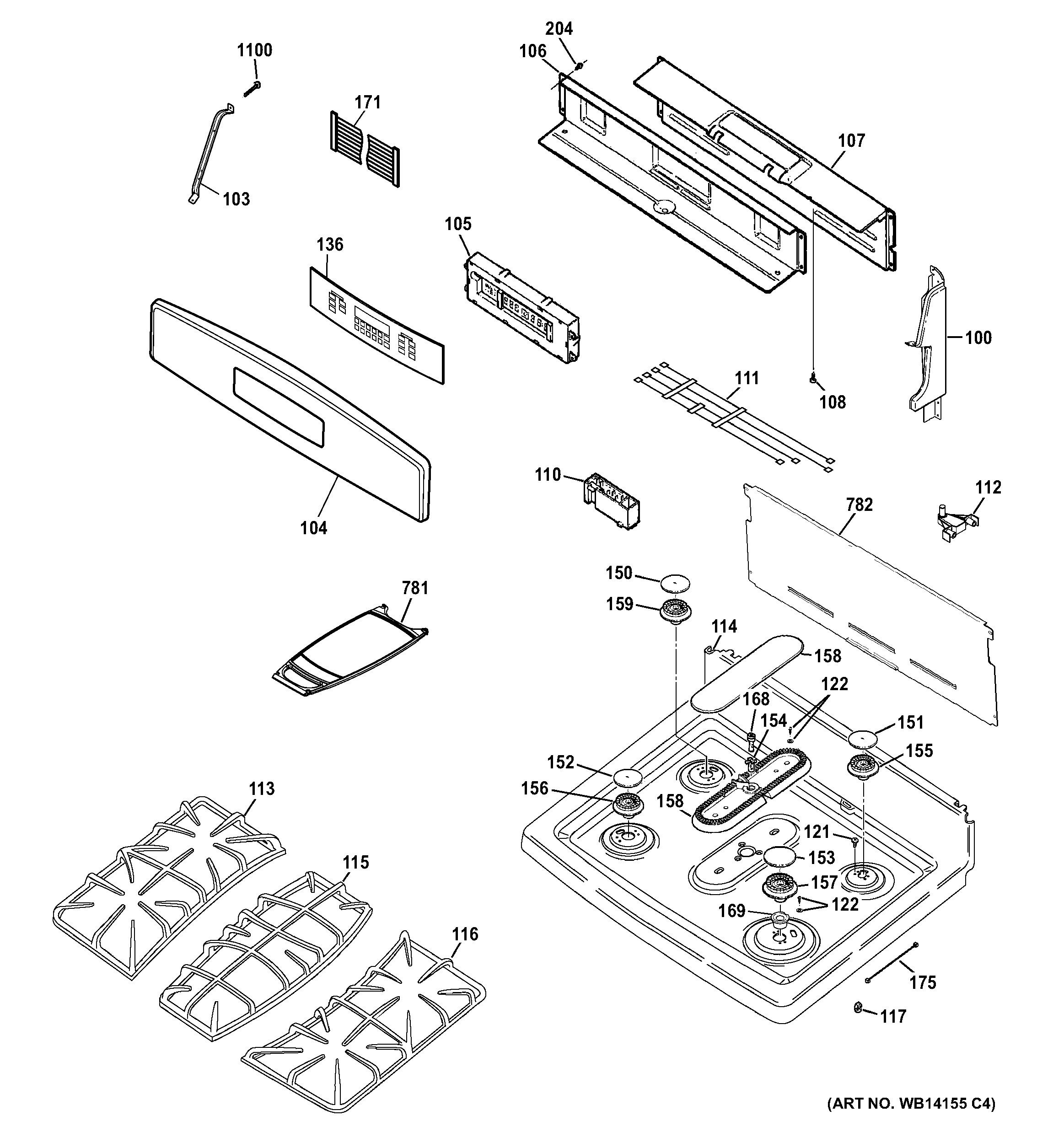

P2B930SET3SS CONTROL PANEL & COOKTOP

Products

PositionProduct
100END SUPPORT LF
100END SUPPORT RT
103GEN WB02K10152
104GEN WB36K10656
105GEN WB27K10383
106COVER BACK UPPER
107WB34K10129 GE Lower Back Cover
110WB13X26360 GE Oven Spark Module
111ELECTRODES & HV HARNESS
112WB14K10003 GE Range Top Hinge
113WB31K10250 GE Oven Left Hand Double Grate
114RANGETOP & BRKT ASM
115WB31K10248 GE Oven Center Double Grate
116WB31K10251 GE Oven Right Hand Double Burner Grate
117WB14K10004 GE Oven Pin Locator
121WB1K5119 GE Oven Screw
121GEN WB01K0078
122WB01K10106 GE Oven Circuit Screw
136GEN WB27K10390
150WB29K10023 GE Oven Burner Cap Assembly
151WB29K10022 GE Oven Burner Cap Assembly
152WB29K10024 GE Burner Cap Oven
153CAP BURNER ASM (15K)
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
158WB16K10076 GE Oven Oval Burner Assembly
159WB16K10055 GE Oven Burner Base
168WB01K10114 GE Oven Electrode Clip
169WB16K10083 GE Oven Venturi 15K LP
171WB18T10386 GE Oven Touch Glass Wire Harness
175HARNESS GROUND
204GEN WB01K10111
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
781WB31X23201 GE Oven Reversible Griddle
782COVER BACK
